Home > Mig Support Main > ESAB > MT200 Gun

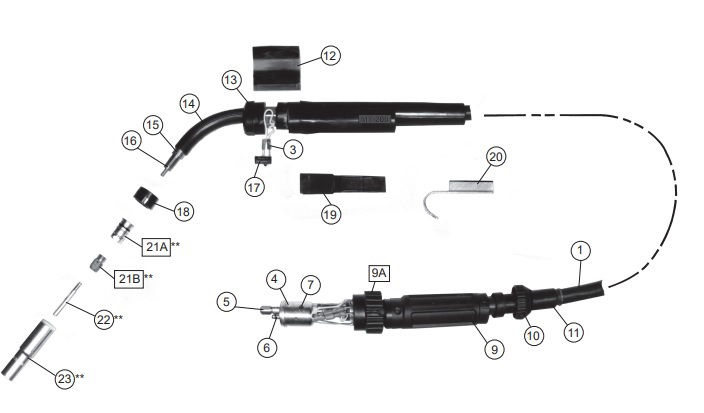

| Item # | Part # | Description |
|---|---|---|
| Gun | 21091 | MT-200cc Basic Torch Assembly, 10-Ft. |
| Gun | 21092 | MT-200cc Basic Torch Assembly, 12-Ft. |
| Gun | 21093 | MT-200cc Basic Torch Assembly, 15-Ft. |
| 1 | 21094 | Handle and Cable Assembly: 10-Ft., MT-200 |
| 1 | 21095 | Handle and Cable Assembly: 12-Ft., MT-200 |
| 1 | 21096 | Handle and Cable Assembly: 15-Ft., MT-200 |
| 3 | 2062294 | Terminal, Supplied in Pkg. of 10 |
| 4 | 951880 | Central Adaptor Block
(Includes 2-female wire connectors,
Item 5 & 6) |
| 5 | 21073 | Liner Retaining Nut (included with Item 4) |
| 6 | 18406 | O-Ring (included with Item 4) |
| 7 | 21074 | Adaptor Support Screw |
| 9 | 21069 | Adaptor Support |
| 9a | 21068 | Adaptor Nut |
| 10 | 21070 | Bayonet Ring |
| 11 | 21071 | Cable Support Sleeve |
| 12 | 998858 | Switch Housing, MT-200 |
| 13 | 20885 | End Cap, MT-200 |
| 14 | 21065 | Wire Guide Insulator, MT-200 |
| 15 | 185W31 | Shoulder Ring |
| 16 | 21064 | Curved Wire Guide, MT-200 (Includes #8-32 x 3/16"
Setscrew & a supplied (5/64" Hex Key) |
| 17 | 2075220 | Switch |
| 18 | 999474 | Front Insulator |
| 19 | 2075214 | Lever |
| 20 | 2075219 | Clamp |
| 21a | 999452 | Nozzle Adaptor (Includes O-Ring & 2-Friction Ring) |
| 21b | 17983 | Tip Adaptor |
| 22 | Contact Tip (See Below) | |
| 23 | Nozzle (See Below) |

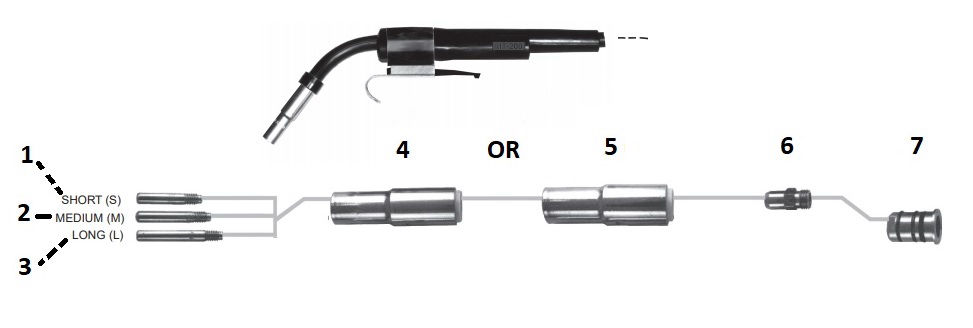

| Item # | Part# | Description |
|---|---|---|
| 1 | 999578 948340 948341 | Short Contact Tip (Recessed) .045" (1.2mm) Short Contact Tip (Recessed) .052" (1.4mm) Short Contact Tip (Recessed) 1/16" (1.6mm) |
| 2 | 20543 20544 996995 37287 37290 2075349 37289 2075230 | Medium Contact Tip (Flush) .023" (.6mm)
Medium Contact Tip (Flush) .030" (.8mm) (ATTC) Medium Contact Tip (Flush) .035" (.9mm) (ATTC) Medium Contact Tip (Flush) .040" (1.0mm) Medium Contact Tip (Flush) .045" (1.2mm) Medium Contact Tip (Flush) .052" (1.4mm) (ATTC) Medium Contact Tip (Flush) 1/16" (1.6mm) Medium Contact Tip (Flush) 5/64" (2.0mm) |
| 3 | 999742 996994 996996 37288 996998 | Long Contact Tip (Stick out) .023" (.6mm) (ATTC) Long Contact Tip (Stick out) .030" (.8mm) (ATTC) Long Contact Tip (Stick out) .035" (.9mm) (ATTC) Long Contact Tip (Stick out) .040" (1.0mm) Long Contact Tip (Stick out) .045" (1.2mm) (ATTC) |
| 4 | 998895 998893 998894 | Standard Duty Nozzle #6 (Tapered) 3/8" Bore (ATTC) Standard Duty Nozzle #8 1/2" Bore (ATTC) Standard Duty Nozzle #10 5/8" Bore (ATTC) |
| 5 | 999471 999472 999473 | Heavy Duty Nozzle #8 1/2" Bore (ATTC) Heavy Duty Nozzle #10 5/8" Bore (ATTC) Heavy Duty Nozzle #12 3/4" Bore (ATTC) |
| 6 | 17983 | Tip adaptor for slide-on nozzle |
| 7 | 999452 | Nozzle adaptor |
| 10' Liner | 999743 948850 2075237 2075239 2075245 948862 948863 19065 | Solid/Cored Wire 10' Liner .023(.6mm) *999743 Requires support liner part# 999797 Solid/Cored Wire 10' Liner .030(.8mm) Solid/Cored Wire 10' Liner .035-.045 (.9mm)-(1.2mm) (ATTC) Solid/Cored Wire 10' Liner .052-1/16 (1.4mm)-(1.6mm) Solid/Cored Wire 10' Liner 5/64-3/32 (2.0mm)-(2.4mm) Aluminum Wire 10' Liner .035(.9mm) Aluminum Wire 10' Liner 3/64(1.2mm) Aluminum Wire 10' Liner 1/16(1.6mm) * 19065 Requires support liner part# 34930 |
| 12' Liner | 34929 17717 17718 17719 17720 33931 34932 | Solid/Cored Wire 12' Liner .023(.6mm)
*34929 Requires support liner part# 34930 Solid/Cored Wire 12' Liner .030(.8mm) Solid/Cored Wire 12' Liner .035-.045 (.9mm)-(1.2mm) Solid/Cored Wire 12' Liner .052-1/16 (1.4mm)-(1.6mm) Solid/Cored Wire 12' Liner 5/64-3/32 (2.0mm)-(2.4mm) Aluminum Wire 12' Liner .035(.9mm) Aluminum Wire 12' Liner 3/64(1.2mm) |
| 15' Liner | 2075238 2075240 2075246 | Solid/Cored Wire 15' Liner .035-.045 (.9mm)-(1.2mm)
(ATTC) Solid/Cored Wire 15' Liner .052-1/16 (1.4mm)-(1.6mm) (ATTC) Solid/Cored Wire 15' Liner 5/64-3/32 (2.0mm)-(2.4mm) |
| 25' Liner | 18235 18236 | Solid/Cored Wire 25' Liner .035-.045 (.9mm)-(1.2mm)
Solid/Cored Wire 25' Liner .052-1/16 (1.4mm)-(1.6mm) |
