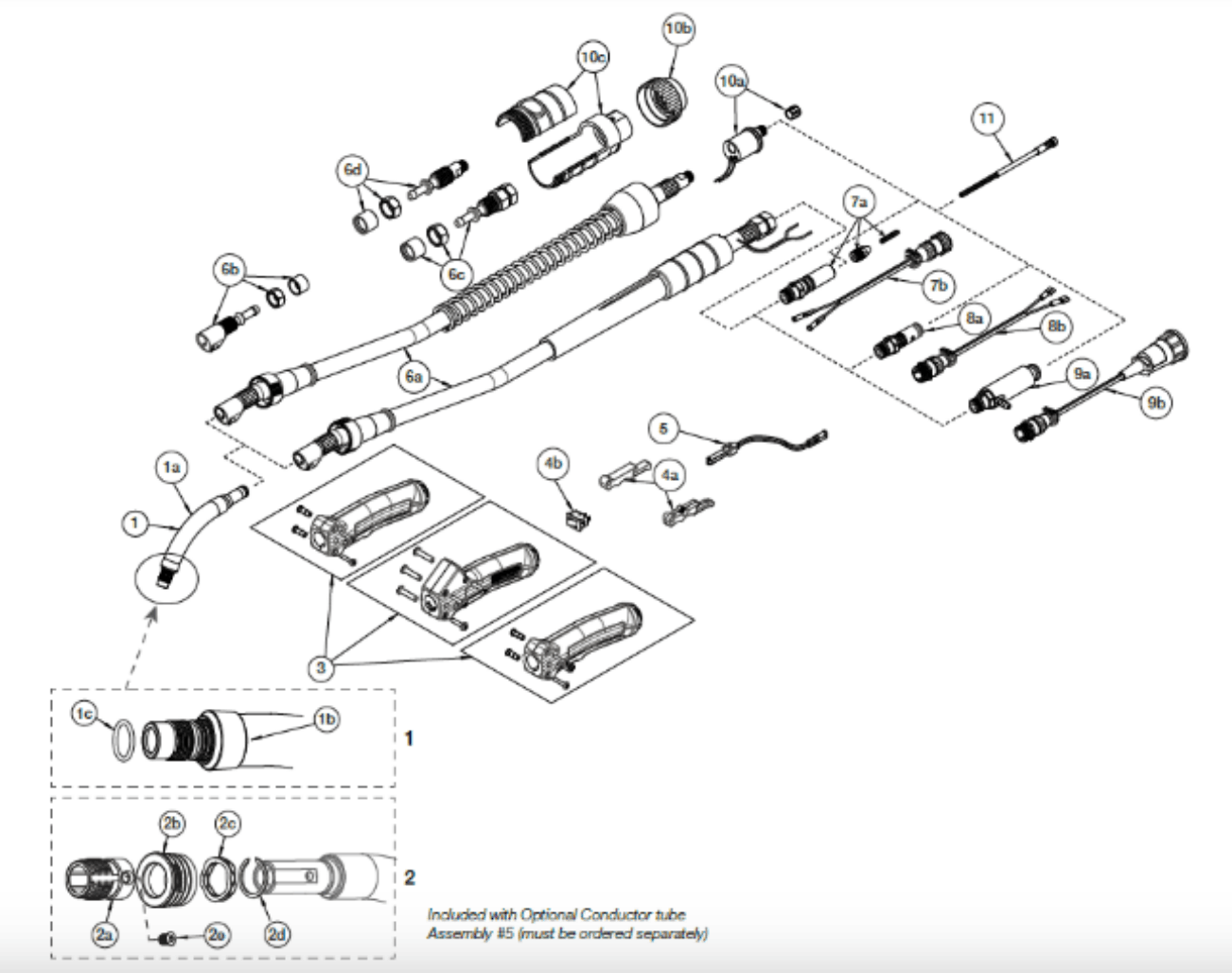

| Item # | Part # | Description |
|---|---|---|
| 1 | 1240-1377 1240-1376 1640-1403 1640-1402 | Conductor Tube–60°, SMVCTLS60 Conductor Tube–45°, SMVCTLS45 Conductor Tube–60° LM, SMVCTLS60LM Conductor Tube–45° LM, SMVCTLS45LM |
| 1a | 1640-1409 | Silicone Tubing (Sold/Foot), VCTLJBLK |
| 1b | 1640-1408 | Insulator, VELOCITY2 Conductor Tube Assy, VCTLSI |
| 1c | 1640-1410 | O-Ring (Pkg Of 10 each), VCTLS015 |
| 2 | 1240-1378 1240-1379 1640-1404 1640-1405 1240-1375 | Conductor Tube–60° (Stainless Steel Sleeve), SMVCT60SS Conductor Tube–45° (Stainless Steel Sleeve), SMVCT45SS Conductor Tube–60° LM (Stainless Steel Sleeve), SMVCT60LMSS Conductor Tube–45° LM (Stainless Steel Sleeve), SMVCT45LMSS Conductor Tube–180° (Stainless Steel Sleeve), SMVCT180 |
| 2a | 1640-1937 | Threaded Stainless Steel Sleeve, VCTLSL |
| 2b | 1640-1938 | Nozzle Collar, VCTLSLK |
| 2c | 1640-1399 | Wave Spring, VCTLSPR |
| 2d | 1640-1396 | Wave Spring Retainer, PMA64RS |
| 2e | 2040-2048 | Sleeve Screw, VCT41CS |
| 3 | 2060-2082 2060-2079 n/a | Handle – Standard Spray Master, SMV82 Handle – Locking Trigger, SMV82LC Handle – Dual Schedule (Rocker Switch) |
| 4a | 2060-2647 2060-2693 | Trigger – Std & Dual Schedule, ELC94 Trigger - Locking, MS94LC |
| 4b | n/a | Dual Schedule Rocker Switch |
| 5 | 2060-2671 | Trigger Blade Assembly, ELC94-BL |
| 6 | 2020-2152 | Gun Hanger, 152 |
| 7a | 2035-2111 | Miller Rear Connector, 350-174MH |
| 7b | 2030-2075 | Miller Control Wire & Plug, WM-354M |
| 8a | 2035-2110 | Tweco Rear Connector, 350-174H |
| 8b | 2060-2139 | Tweco Control Wire, MS354-TAJ |
| 9a | 2035-2112 | Lincoln Rear Connector, 350-174LH |
| 9b | 2060-2137 | Lincoln Control Wire & Plug, MS-354DS-LJ |
| 10 | 2060-2646 | Binder Posts & Screws (Standard & Locking), ELC124FM |
| 11 | 2060-2135 | Binder Posts & Screws (Dual Schedule), 122FMS |
| 16 | 2060-2690 | Cable Clamp, 136 |
| 17 | 2060-2131 | Front Strain Relief Spring & Cap, MS144 |
| 18 | 1720-2115 1720-2116 1720-2117 | 10 ft (3m) Cablehoz® Assembly (Direct Plug), MS210 12 ft (3.6m) Cablehoz® Assembly (Direct Plug), MS212 15 ft (4.6m) Cablehoz® Assembly (Direct Plug), MS215 |
| 19 | 2060-2035 | Rear Strain Relief Spring & Cap, 235RSSR |
| 20 | 2060-2132 | Front Cable Connector Repair Kit (Direct Plug & Euro), MS102-RK |
| 21 | 2060-2134 2020-2181 | Rear Cable Connector Repair Kit (Direct Plug), MS172-RK Rear Cable Connector Repair Kit (Euro), 172X-M |
| 22 | 2060-2041 2060-2006 | Rear Case(Direct Plug), C6RC 2 Rear Case(Euro), X6RC |
| 23 | 2060-2140 | Miller® Control Wire MS354-DSM |
| 24 | Connector Plug | |
| 25 | 1420-1113 1420-1115 1420-1123 1420-1125 1420-1124 1420-1003 | .030" - .035" (0.8 - 0.9 mm) 15 ft (4.6 m), 42-3035-15 .030" - .035" (0.8 - 0.9 mm) 25 ft (7.6 m), 42-3035-25 .040" - .045" (1.0 - 1.2 mm) 15 ft (4.6 m), 42-4045-15 .040" - .045" (1.0 - 1.2 mm) 25 ft (7.6 m), 42-4045-25 .052" - 1/16" (1.3 - 1.6 mm) 15 ft (4.6 m), 42-116-15 .030" – 3/64" Teflon Core (0.8 – 1.2 mm) 15 ft (4.6 m), 42N-3545-15 |
| 9900-1150 | Protective Cable Wrap, 50ft (15.2 m) per box, TCR50 |
| Item # | Part # | Description |
|---|---|---|

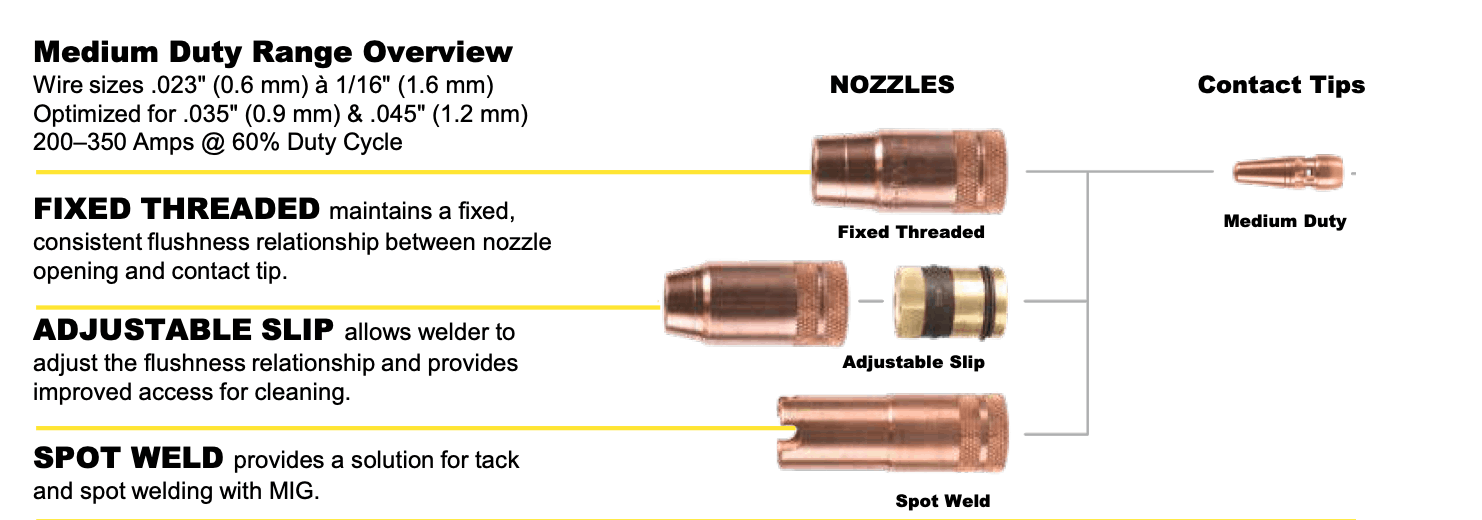

| Medium Duty Tips | 1160-1750 1160-1751 1160-1752 1160-1753 1160-1754 1160-1755 1160-1756 1160-1757 1160-1758 1160-1759 | Contact tip, .023" (0.6 mm) VTM23, Pack of (10) Contact tip, .030" (0.8 mm) VTM30, Pack of (10) Contact tip, .035" (0.9 mm) VTM35, Pack of (10) Contact tip, .040" (1.0 mm) VTM40, Pack of (10) Contact tip, .045" (1.2 mm) VTM45, Pack of (10) Contact tip, 3/64" (1.2 mm)* VTMA364*, Pack of (10) Contact tip, .052" (1.3 mm) VTM52, Pack of (10) Contact tip, 1/16" (1.6 mm) VTM116, Pack of (10) Contact tip, 1/16" (1.6 mm)* VTMA116*, Pack of (10) Contact tip, 5/64" (2.0 mm) VTM564, Pack of (10) |
| Medium Duty Threaded Nozzle | 1240-1857 1240-1856 1240-1854 1240-1855 1240-1852 1240-1853 | 1/2" (12.7 mm) Threaded Nozzle, Recess VNM50 1/2" (12.7 mm) Threaded Nozzle, Flush VNM50F 5/8" (15.9 mm) Threaded Nozzle, Recess VNM62 5/8" (15.9 mm) Threaded Nozzle, Flush VNM62F 3/4" (19.1 mm) Threaded Nozzle, Recess VNM75 3/4" (19.1 mm) Threaded Nozzle Flush VNM75F |
| Medium Duty Slip Nozzle | 1240-1859 1240-1860 1240-1863 1240-1861 1240-1862 1240-1865 1240-1864 | 1/2" (12.7 mm) Slip Nozzle VNM50S 5/8" (15.9 mm) Slip Nozzle VNM62S 3/4" (19.1 mm) Slip Nozzle VNM75S 1/2" (12.7 mm) Slip Nozzle Cone Only VNM50SC 5/8" (15.9 mm) Slip Nozzle Cone Only VNM62SC 3/4" (19.1 mm) Slip Nozzle Cone Only VNM75SC Slip Nozzle Base VNS |
| MD Spot Nozzle | 1240-1866 1240-1868 | 5/8" (15.9 mm) Spot Nozzle VNM62FAS 3/4" (19.1 mm) Spot Nozzle VNM75FAS |
| Item # | Part # | Description |
|---|---|---|

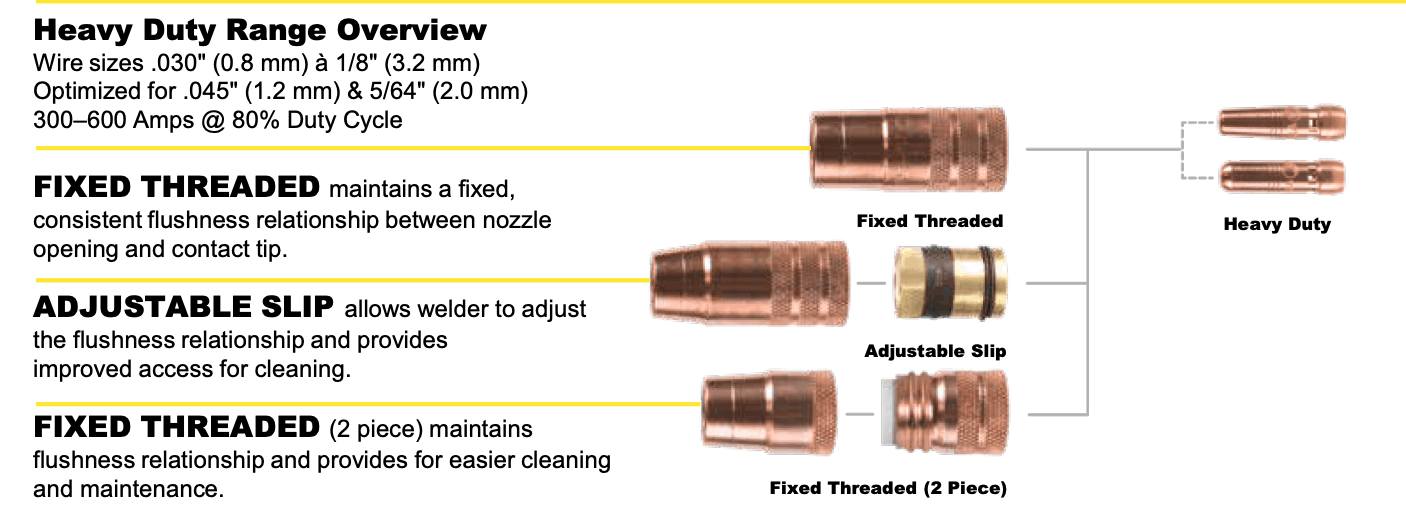

| Heavy Duty Tips | 1240-1376 1160-1761 1160-1762 1160-1763 1160-1764 1160-1765 1160-1766 1160-1767 1160-1768 1160-1769 1160-1770 1160-1771 | Contact tip, .030" (0.8 mm) VTH30, Pack of (10) Contact tip, .035" (0.9 mm) VTH35, Pack of (10) Contact tip, .040" (1.0 mm) VTH40, Pack of (10) Contact tip, .045" (1.2 mm) VTH45, Pack of (10) Contact tip, 3/64" (1.2 mm)* VTHA364*, Pack of (10) Contact tip, .052" (1.3 mm) VTH52, Pack of (10) Contact tip, 1/16" (1.6 mm) VTH116, Pack of (10) Contact tip, 1/16" (1.6 mm)* VTHA116*, Pack of (10) Contact tip, 5/64" (2.0 mm) VTH564, Pack of (10) Contact tip, 3/32" (2.4 mm) VTH332, Pack of (10) Contact tip, 7/64" (2.8 mm) VTH764, Pack of (10) Contact tip, 1/8" (3.2 mm) VTH18, Pack of (10) |
| Heavy Duty Threaded Nozzle | 1240-1877 1240-1878 1240-1898 1240-1875 1240-1876 1240-1899 | 1/2" (12.7 mm) Threaded Nozzle Recess VNH62 1/2" (12.7 mm) Threaded Nozzle Flush VNH62F 5/8" (15.9 mm) Threaded Nozzle Recess VNH62R 5/8" (15.9 mm) Threaded Nozzle Flush VNH75 3/4" (19.1 mm) Threaded Nozzle Recess VNH75F 3/4" (19.1 mm) Threaded Nozzle Flush VNH75R |
| Heavy Duty Slip Nozzle | 1240-1893 1240-1894 1240-1864 1240-1895 1240-1896 1240-1867 1240-1880 | 1/2" (12.7 mm) Slip Nozzle VNH62S 5/8" (15.9 mm) Slip Nozzle VNH75S 3/4" (19.1 mm) Slip Nozzle VNS Slip Nozzle Base VNH62SC 1/2" (12.7 mm) Slip Nozzle Cone Only VNH75SC 5/8" (15.9 mm) Slip Nozzle Cone Only VNH50RC 3/4" (19.1 mm) Slip Nozzle Cone Only VNH622PC |
| HD Spot Nozzle | 1240-1884 1240-1870 | 5/8" (15.9 mm) Spot Nozzle VNH62C 3/4" (19.1 mm) Spot Nozzle VNH62RC |
| Heavy Duty 2 Piece Nozzle | 1240-1881 1240-1885 1240-1882 1240-1886 1240-1871 1240-1883 | 1/2" (12.7 mm) Threaded Nozzle Recess VNH62F2PC 1/2" (12.7 mm) Threaded Nozzle Flush VNH62FC 5/8" (15.9 mm) Threaded Nozzle Recess VNH752PC 5/8" (15.9 mm) Threaded Nozzle Flush VNH75C 3/4" (19.1 mm) Threaded Nozzle Recess VNH75RC 3/4" (19.1 mm) Threaded Nozzle Flush VNH75F2PC |
| HD Slip Nozzle | 1240-1887 1240-1879 | 1/2" (12.7 mm) Slip Nozzle VNH75FC 5/8" (15.9 mm) Slip Nozzle VNH2PC |
