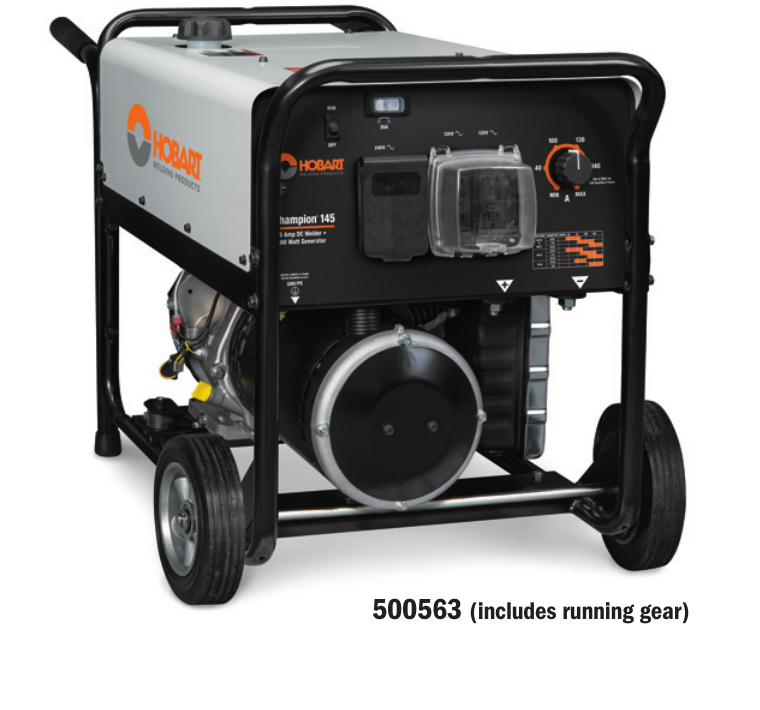

Champion 145 machine
Machine stock number 500563 includes running gear and GFCI receptacles.
Hobart engine-driven welder
Hobart Champion 145 Engine-Driven Welder Support
The Champion 145 is a portable gasoline engine-driven DC stick welder with 40-145 amp output and 4,500-watt peak auxiliary power. Use this page for machine specs, receptacle notes, the Champion 145 cover, lifting eye, and stick cable sets.
Start Here
The most common ownership paths for this portable engine-drive machine.
Protective cover
Protective cover 770714 is listed for the Champion 145.
Stick lead sets
The sheet lists No. 2 cable set 195195 and No. 4 cable set 193067.
Lifting eye
Lifting eye 195353 is listed as a Champion 145 accessory.
Champion 145 Specs
Core machine and engine data from Hobart literature 251448, May 2023.
Machine Features
Customer-facing notes from the Hobart Champion 145 sheet.
- Portable engine-driven DC stick welder with built-in auxiliary power.
- 4,500 starting watts and 4,000 watts continuous auxiliary power.
- Briggs & Stratton 1450 Intek Series engine with a 6.25-gallon fuel tank.
- Four 120 V, 20 A GFCI receptacles and one 240 V NEMA 6-50R receptacle with covers.
- Can handle DC stick electrodes up to 5/32 in. diameter.
- Built-in running gear for portable power and jobsite movement.
- Built for farm and ranch, light fabrication, and light maintenance or repair work.
- Hobart 5/3/1 industrial warranty from the spec sheet; engine is warrantied separately by the engine manufacturer.
Control Panel Reference
Control panel labels from the Hobart sheet.
- Supplementary protection
- Engine switch
- One 240 V NEMA 6-50R receptacle
- Ground protection
- Single amperage control
- Four 120 V, 20 A GFCI receptacles
- Quick-reference parameter chart
- Weld output studs
Machine and Engine-Drive Accessories
Start here for the Champion 145 machine, cover, lifting eye, and stick cable sets listed on the Hobart sheet.
| Part # | Item | Use / note | Buy / lookup |
|---|---|---|---|
| 500563 | Champion 145 engine-driven welder Machine |
Champion 145 recoil-start machine with GFCI receptacles, running gear, 40-145 A DC stick output, and 4,500 W peak auxiliary power. | Search Amazon Site lookup |
| 770714 | Protective cover Machine cover |
Vinyl-laminated polyester cover for Champion 145. UV-resistant, waterproof, and includes a large cable pocket. | Search Amazon Site lookup |
| 195353 | Lifting eye Lifting accessory |
Lifting eye accessory listed on the Champion 145 sheet. | Search Amazon Site lookup |
| 195195 | No. 2 stick cable set, 50 ft. Stick leads |
50 ft. No. 2 electrode cable with holder and 50 ft. work cable with clamp; 200 A at 100% duty cycle. | Search Amazon Site lookup |
| 193067 | No. 4 stick cable set, 20/15 ft. Stick leads |
20 ft. No. 4 electrode cable with holder and 15 ft. work cable with clamp; 125 A at 100% duty cycle. | Search Amazon Site lookup |
Source: Hobart Champion 145 spec sheet, literature 251448, May 2023. Amazon search links are a buying aid; direct View on Amazon buttons only appear when a Hobart registry match is already approved.
