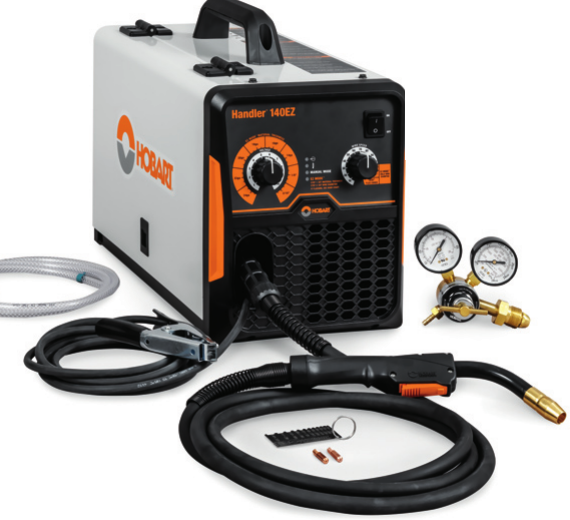

Handler 140EZ welder package
Machine package part 500582 for the 120 V Handler 140EZ.
Hobart MIG machine
Hobart Handler 140EZ MIG Welder Support
The Handler 140EZ is a 120 V Hobart wire feed welder with a 30-140 amp output range, EZ Mode setup, and HM-100 MIG gun package. Use this page for the machine specs, replacement gun, SpoolRunner 150 setup, drive rolls, and consumables.
Start Here
The most common ownership paths for this machine.
HM-100 replacement MIG gun
HM-100 replacement MIG gun, part 298857, listed for .030-.035 in. wire.
SpoolRunner 150 aluminum setup
SpoolRunner 150 part 301853 is the optional spool gun called out on the Handler 140EZ sheet.
Cover and consumables
Protective cover 195186 and SpoolRunner 150 consumables already have several approved registry matches.
Handler 140EZ Specs
Core machine data from Hobart literature 299171, September 2025.
What Comes With the Handler 140EZ
Package contents listed on the Hobart spec sheet.
- 10 ft. HM-100 MIG gun with ergonomic, rubber-padded handle
- 10 ft. work cable with clamp
- Power cord with plug
- Built-in gas solenoid valve and dual-gauge regulator with gas hose
- .030 in. contact tips
- Quick Select drive roll for .024 in. or .030/.035 in. solid wire and .030/.035 in. flux-cored wire
- Material thickness gauge
Machine Features
Useful customer-facing notes when identifying or supporting the machine.
- Infinite voltage control for finer arc control and less spatter
- EZ Mode setup for common material thickness and wire diameter choices
- Informational parameter chart for setup help
- Quick Select drive roll with three grooves for solid and flux-cored wire
- Spool hub accommodates 4 in. and 8 in. spools
- Not recommended for engine-driven welders or standalone generators
- CSA certified to Canadian and U.S. standards
- Hobart 5/3/1 industrial warranty from the spec sheet
Machine Package and Accessories
Start here for the replacement gun, aluminum spool gun, cart, and cover listed on the Handler 140EZ sheet.
| Part # | Item | Use / note | Buy / lookup |
|---|---|---|---|
| 500582 | Handler 140EZ welder package Machine |
120 V wire feed welder, 30-140 A output range. | View on Amazon Site lookup |
| 298857 | HM-100 replacement MIG gun Replacement gun |
10 ft. length with liner for .030-.035 in. wire. | Search Amazon Site lookup |
| 301853 | SpoolRunner 150 spool gun Spool gun |
10 ft. cable; welds 18-14 ga. aluminum with the Handler 140EZ; rated 150 A at 60% duty cycle. | Search Amazon Site lookup |
| 194776 | Small cart/cylinder rack Machine accessory |
Designed for portable MIG welders; accommodates large and small gas cylinders. | Search Amazon Site lookup |
| 195186 | Protective cover Machine accessory |
Weather-resistant nylon cover for the Handler 140EZ. | View on Amazon Site lookup |
HM-100 MIG Gun Consumables
Front-end parts for the HM-100 gun used with the Handler 140EZ.
| Part # | Item | Use / note | Buy / lookup |
|---|---|---|---|
| 770174 | Contact tips Contact tip |
.023-.025 in.; 5 per package. Miller package equivalent: 087299. | Search Amazon Site lookup |
| 770177 | Contact tips Contact tip |
.030 in.; 5 per package. Miller package equivalent: 000067. | Search Amazon Site lookup |
| 770180 | Contact tips Contact tip |
.035 in.; 5 per package. Miller package equivalent: 000068. | Search Amazon Site lookup |
| 770404 | MIG nozzle Nozzle |
Slip-type MIG nozzle. Miller package equivalent: 169715. | Search Amazon Site lookup |
| 770487 | Gasless flux-cored nozzle Nozzle |
Flux-cored nozzle. Miller package equivalent: 226190. | Search Amazon Site lookup |
| 770402 | Tip adapter Adapter |
Tip adapter. Miller package equivalent: 169716. | Search Amazon Site lookup |
| 196139 | Replacement liner Liner |
.023-.025 and .030/.035 in. wire; the sheet lists 196139 for both sizes. | Search Amazon Site lookup |
| 196140 | Replacement liner Liner |
.035/.045 in. wire. Miller package equivalent: 194012. | Search Amazon Site lookup |
Handler 140EZ Power Source Drive Rolls
Match the drive roll to wire type and wire diameter before ordering.
| Part # | Item | Use / note | Buy / lookup |
|---|---|---|---|
| 261157 | Quick Select drive roll Drive roll |
.024 in. V-groove / .030-.035 in. V-groove / .035 in. V-knurled. | Search Amazon Site lookup |
| 202926 | Dual-groove V-knurled drive roll Drive roll |
.030/.035 in. and .045 in. flux-cored wire. | Search Amazon Site lookup |
SpoolRunner 150 Consumables
Use these when the Handler 140EZ is set up with the SpoolRunner 150 spool gun.
| Part # | Item | Use / note | Buy / lookup |
|---|---|---|---|
| 199730 | SpoolRunner 150 contact tips Contact tip |
.023-.025 in.; 5 per package. | View on Amazon Site lookup |
| 186419 | SpoolRunner 150 contact tips Contact tip |
.030 in.; 5 per package. | View on Amazon Site lookup |
| 186406 | SpoolRunner 150 contact tips Contact tip |
.035 in.; 5 per package. | View on Amazon Site lookup |
| 186405 | SpoolRunner 150 MIG nozzle Nozzle |
Replacement MIG nozzle. | View on Amazon Site lookup |
| 199731 | SpoolRunner 150 drive roll Drive roll |
For .023 in. wire. | View on Amazon Site lookup |
| 186413 | SpoolRunner 150 drive roll Drive roll |
For .030/.035 in. wire. | View on Amazon Site lookup |
| 199732 | SpoolRunner 150 push roll Push roll |
For .023 in. wire. | View on Amazon Site lookup |
| 186414 | SpoolRunner 150 push roll Push roll |
For .030/.035 in. wire. | View on Amazon Site lookup |
Source: Hobart Handler 140EZ spec sheet, literature 299171, September 2025. Amazon search links are a buying aid; direct View on Amazon buttons only appear when a Hobart registry match is already approved.
