Stickmate 160 machine

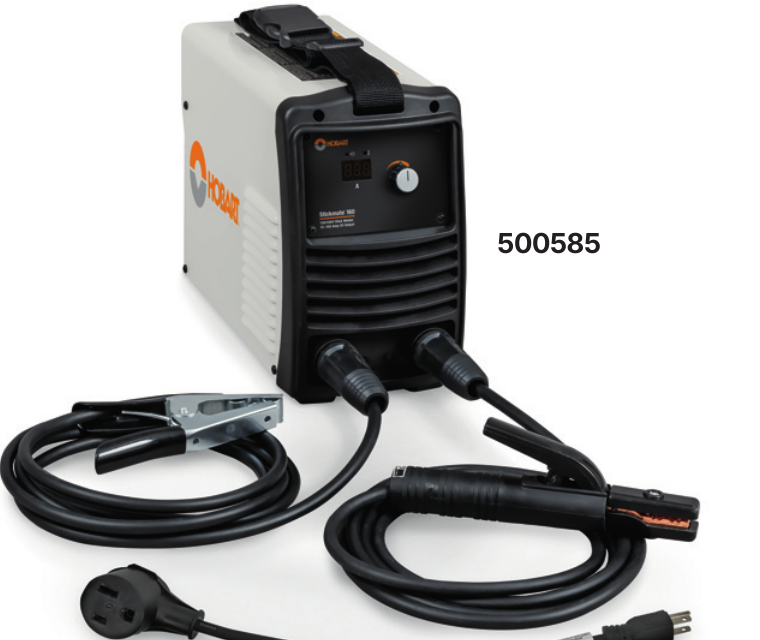

Machine stock number 500585 for the 120/240 V Stickmate 160 DC stick welder.
Hobart DC stick welder
Hobart Stickmate 160 Stick Welder Support
The Stickmate 160 is a portable dual-voltage DC stick welder for 120 V or 240 V input. Use this page for machine specs, included leads, setup notes, electrode guidance, and buy/search links.
Start Here
The most common ownership paths for this portable stick machine.
Included leads and adapter
The sheet lists a 10 ft. electrode cable, 10 ft. work cable, and 6.5 ft. power cord with 120/240 V adapter.
Electrode setup
The sheet gives polarity and amperage guidance for 6010, 6011, 6013, 7014, 7018, 7024, Ni-Cl, and 308L electrodes.
Machine support path
Use Stick Equipment Support when comparing this to other stick-capable machines.
Stickmate 160 Specs
Core machine data from Hobart literature 298022, May 2026.
What Comes With the Stickmate 160
Package contents listed on the Hobart spec sheet.
- 10 ft. electrode cable with heavy-duty holder
- 10 ft. work cable with clamp
- 6.5 ft. power cord with adapter for 120 V and 240 V
Machine Features
Customer-facing notes from the Hobart Stickmate 160 sheet.
- Simple user interface with digital display and single amperage knob.
- Infinite amperage control adjusts output by one-amp increments.
- Dual-voltage input allows connection to 120 V or 240 V receptacles without tools.
- Adjustable shoulder strap for carrying and setup.
- DC stick output helps reduce arc outages, sticking, and spatter compared with older AC-only machines.
- Applications listed on the sheet include DIY, farm and ranch, metal art, and maintenance or repair.
- Hobart 5/3/1 industrial warranty from the spec sheet.
Electrode and Setup Notes
Practical rod guidance from the Hobart electrode chart and basic DCEP setup diagram.
- Ideal performance is listed for most 6011, 6013, and 7018 rods.
- The sheet notes 6010 is not recommended for open root welding.
- 120 V operation: 1/16-1/8 in. electrodes, with some limitations on 3/32 in. rods and very limited use with 1/8 in. rods based on rod and amperage.
- 240 V operation: 1/16-5/32 in. electrodes, with some limitations on 5/32 in. rods based on amperage.
- DCEP is shown in the basic setup, and the sheet notes the machine is also DCEN polarity capable.
Control Panel Reference
Control panel labels from the Hobart sheet.
- Output indicator light
- Overtemperature light
- Digital display
- Amperage adjustment control
Machine Package and Included Leads
The Stickmate 160 sheet lists the machine package and included leads, but does not assign separate service part numbers to the included cables on the spec sheet.
| Part # | Item | Use / note | Buy / lookup |
|---|---|---|---|
| 500585 | Stickmate 160 DC stick welder Machine |
120/240 V DC stick welding power source with 10-80 A output on 120 V and 10-160 A output on 240 V. | Search Amazon Site lookup |
| Included | 10 ft. electrode cable with heavy-duty holder Included lead |
Included with the Stickmate 160 package. Verify replacement lead connection and holder style before ordering. | Search Amazon Site lookup |
| Included | 10 ft. work cable with clamp Included lead |
Included with the Stickmate 160 package. Verify replacement clamp and cable connector style before ordering. | Search Amazon Site lookup |
| Included | 6.5 ft. power cord with 120 V / 240 V adapter Power cord |
Included dual-voltage power cord and adapter set. Verify plug configuration before ordering replacements. | Search Amazon Site lookup |
Source: Hobart Stickmate 160 spec sheet, literature 298022, May 2026. Amazon search links are a buying aid; direct View on Amazon buttons only appear when a Hobart registry match is already approved.
