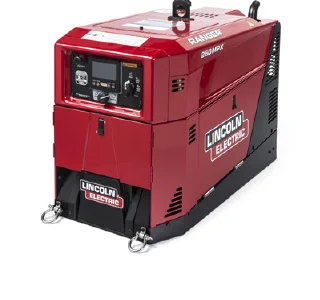

Lincoln Ranger Machine

Lincoln Ranger 260MPX Support

Compact multiprocess engine-drive support for stick, TIG, MIG, flux-cored, spool gun, and remote-control paths.

Machine Specs

Product numberK3458-1 base; K5719-1 One-Pak
ProcessStick / TIG / MIG / flux-cored
Rated output260A DC CC / 26V / 100%; 260A DC CV / 26V / 100%
Output range20-260 DC; 14-40V CV; 20-255 DC touch-start TIG
Generator power10,000W peak; 9,500W continuous
EngineKohler OHV Command CH730
Size / weight26 x 20 x 36 in.; 446 lb base

Included / Setup Starting Points

  • One-Pak includes all-terrain undercarriage with flat-free tires
  • MIG/spool gun setup depends on feeder and gun path
  • Remote output control and lead accessories depend on setup

Compatible Guns / Torches

Lincoln Magnum MIG gun support Use if running MIG through feeder/gun setup. Lincoln spool gun support Catalog table lists Magnum PRO 250LX GT path. Lincoln TIG torch support Use for TIG torch/adapter path.

Accessories and Machine Setup

Wire feeder and gun path Use for CV wire setup and compatible gun route. Spool gun support Use for aluminum spool-gun checks before buying. Engine-drive accessories Use for undercarriage, remotes, and lead package paths.

Find Consumables and Replacement Parts

Filler metal lookup Stick, TIG, MIG, flux-cored, and aluminum filler starting points.

Breakdown and Lookup Links

Lincoln Engine-Drive Machine Support Lincoln Filler Metal AWS Lookup

Catalog Sources Used

Need More Help?Troubleshooting, setup, and deeper support
Stick SupportWire Feed Problems TroubleshootingFind My Part
Lincoln Electric E1.10 full-line catalog and BK291 2024 Expendable Parts Guide. Approved Amazon links are shown only when locked in the public registry.
