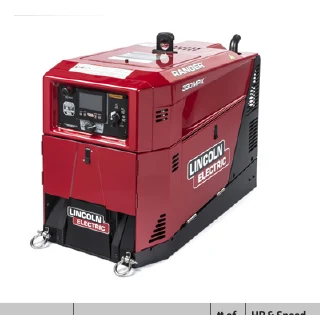

Lincoln Ranger Machine

Lincoln Ranger 330MPX Support

Multiprocess engine-drive support for stick, TIG, MIG, flux-cored, gouging, feeder/gun, and remote-control setup.

Machine Specs

Product number	K3459-1 base; K4779-1 EFI; K5720-1 One-Pak
Process	Stick / TIG / MIG / flux-cored / gouging
Rated output	330A DC CC / 28V / 100%; 312A DC CV / 29V / 100%
Output range	CC-stick 35-330A; TIG 25-330A; CV-wire 14-40V; gouging 90-330A
Generator power	11,500W peak; 10,000W continuous
Engine	Kohler OHV Command CH740 / ECH740 depending model
Size / weight	26 x 20 x 36 in.; 446 lb base

Included / Setup Starting Points

One-Pak includes all-terrain undercarriage with flat-free tires
Gouging, feeder, remote, and lead paths depend on setup
MIG and TIG use external torch/gun ecosystem pages

Compatible Guns / Torches

Lincoln Magnum MIG gun support Use for feeder/gun setup. Lincoln spool gun support Catalog table lists Magnum PRO 250LX GT path. Lincoln TIG torch support Use for TIG torch/adapter path.

Accessories and Machine Setup

Wire feeder and gun path Use for wire welding setup. Carbon arc support Use only when gouging setup is required. Engine-drive accessories Use for remotes, undercarriage, and lead package paths.

Find Consumables and Replacement Parts

Filler metal lookup Stick, TIG, MIG, flux-cored, and gouging setup support.

Breakdown and Lookup Links

Lincoln Engine-Drive Machine Support Lincoln Filler Metal AWS Lookup

Catalog Sources Used

E1.10 engine-drive section lists Ranger 330MPX base, EFI, One-Pak specs, process range, and generator ratings.
