Processes
MIG (GMAW), Pulsed MIG (GMAW-P, 240 V only), Flux-cored (FCAW), DC TIG (GTAW), Pulsed TIG (GTAW-P, 240 V only), DC stick (SMAW)
Miller MIG Machine Support
Multimatic 215 PRO
Light industrial 120/240 V multiprocess Miller package with MIG, pulsed MIG, flux-cored, DC TIG, pulsed TIG, and DC stick support. This page routes owners to the MDX-100 MIG gun, Spoolmate aluminum guns, TIG setup options, drive rolls, and accessory paths from the June 2026 spec sheet.
MIG (GMAW)Pulsed MIG (GMAW-P, 240 V only)Flux-cored (FCAW)DC TIG (GTAW)Pulsed TIG (GTAW-P, 240 V only)DC stick (SMAW)
Light industrial multiprocess
Welding range
MIG/flux-cored 30 - 140 A on 120 V and 30 - 230 A on 240 V; TIG 20 - 150 A on 120 V and 20 - 210 A on 240 V; stick 30 - 100 A on 120 V and 30 - 200 A on 240 V
Input power
120 or 240 V, single-phase, 50/60 Hz
Wire feed speed
60 - 600 ipm (1.5 - 15.2 m/min.)
Weight
35 lb. (15.9 kg)
Class
Light industrial multiprocess
Feature Highlights
Auto-Set
Predefined setup is available across the listed processes so users can start from material and wire settings quickly.
Pulse Capabilities
Pulsed MIG and pulsed TIG are listed on the spec sheet for 240 V input.
Program Mode
Favorite weld settings can be saved and recalled for repeat jobs.
BeadVision
On-screen feedback helps the operator adjust settings for penetration and bead profile.
Dyna-Pulse
Dynamic pulse output is included for a wider operating window on supported setups.
MVP Multi-Voltage Plug
The package includes MVP plugs for 120 V and 240 V input power.
Auto Spool Gun Detect
The machine automatically detects the connected spool gun path.
USB Upgradeable
Software can be updated through the machine USB port.
Machine Packages
| Stock number | Catalog package |
|---|---|
| 907840 | Multimatic 215 PRO, 120/240 V, 50/60 Hz |
| 951000074 | Multimatic 215 PRO with Welding Cart; includes machine 907840 and running gear/cylinder rack 301239 |
| 951000213 | Multimatic 215 PRO with TIG Contractor Kit; includes machine 907840 and TIG Contractor Kit 301917 |
Compatible Accessories
TIG Contractor Kit with Wireless Foot Pedal
301917 Multimatic 215 PRO kit with Weldcraft A-150, wireless remote foot pedal, regulator, gas hose, and AK2C accessory kit.
Open support pageTIG Contractor Kit with Wired Foot Pedal
301916 Multimatic 215 PRO kit with Weldcraft A-150, RFCS-14 HD wired foot pedal, regulator, gas hose, and AK2C accessory kit.
Open support pageAK2C TIG Accessory Kit
AK2C A-150 series accessory kit with short back cap, alumina nozzles, collets, collet bodies, and 2% ceriated tungsten.
Open support pageRunning Gear/Cylinder Rack
301239 Heavy-duty running gear with 8 in. rear wheels, 4 in. front casters, front handles, cable holders, and consumable box.
Buy link needs verification.
Dual Cylinder Rack Conversion Kit and Tool Holder
301454 Converts running gear/cylinder rack 301239 from a single cylinder cart to a dual cylinder cart and adds tool storage.
Dual Cylinder Rack Cart
951770 Includes running gear/cylinder rack 301239 and dual cylinder rack conversion kit 301454; must be assembled together.
Buy link needs verification.
Protective Cover
301737 Protective machine cover listed on the Multimatic 215 PRO ordering table.
Buy link needs verification.
Material Thickness Gauge
229895 Material thickness gauge listed with the machine package and accessory table.
Buy link needs verification.
NEMA 20 MVP Plug
219259 120 V, 20 A MVP plug listed for the Multimatic 215 PRO.
Flow Gauge Regulator and Gas Hose for Argon or Ar/CO2 Mix
31-50-580-6 Replacement standard regulator and gas hose path for argon or argon/CO2 mix.
Open support pageFlow Gauge Regulator for CO2
31-50-320 Required if using 100 percent CO2 shielding gas.
Buy link needs verification.
Wireless Remote Foot Control
301580 Foot control with wireless 90 ft. (27.4 m) operating range.
Open support pageRFCS-14 HD Wired Foot Control
301589 Heavy-duty foot pedal current and contactor control with 20 ft. cord and 14-pin plug.
Open support pageQuick Select Drive Roll
261157 For .024 in. solid wire, .030/.035 in. solid wire, and .030/.035 in. flux-cored wire.
Open support pageV-Knurled Dual-Groove Drive Roll
202926 For .030/.035 in. or .045 in. flux-cored wire.
Open support pageCompatible Guns / Torches
MDX-100 MIG Gun
1770029 15 ft. (4.6 m), 100-amp MIG gun listed for .030 - .035 in. (0.8 - 0.9 mm) wire.
Open support pageSpoolmate 100 Spool Gun
300371 12 ft. direct-connect spool gun for .030 - .035 in. aluminum 4043 wire and .023 - .035 in. steel/stainless wire; includes custom carrying case.
Open support pageSpoolmate 150 Spool Gun
301272 20 ft. direct-connect spool gun for .030 - .035 in. 4000/5000 series aluminum wire and .023 - .035 in. steel/stainless wire.
Open support pageWeldcraft A-150 (WP-17) TIG Torch
WP1712RDI25 12.5 ft. (3.8 m), 150-amp air-cooled TIG torch with 25 mm flow-thru Dinse-style connector.
Open support pageFull machine details
Welding Output
- MIG/flux-cored, 120 V: 110 A at 19.5 VDC, 60% duty cycle
- MIG/flux-cored, 240 V: 160 A at 22.0 VDC, 60% duty cycle
- MIG/flux-cored, 240 V: 215 A at 24.8 VDC, 30% duty cycle
- TIG, 120 V: 140 A at 15.6 VDC, 40% duty cycle
- TIG, 240 V: 190 A at 17.6 VDC, 20% duty cycle
- Stick, 120 V: 95 A at 23.8 VDC, 40% duty cycle
- Stick, 240 V: 190 A at 27.6 VDC, 20% duty cycle
- Stick process is not recommended for 6010 electrodes.
Wire Capacity
- Uses 4- or 8-inch spools.
- Solid wire: .024 - .035 in. (0.6 - 0.9 mm)
- Flux-cored wire: .030 - .045 in. (0.8 - 1.2 mm)
- Spool gun aluminum path supports .030 - .035 in. aluminum wire depending on gun selection.
Material Capacity
- 120 V: 24 ga. - 3/16 in. steel
- 120 V: 18 ga. - 1/8 in. aluminum
- 240 V: 24 ga. - 3/8 in. steel
- 240 V: 18 ga. - 3/8 in. aluminum

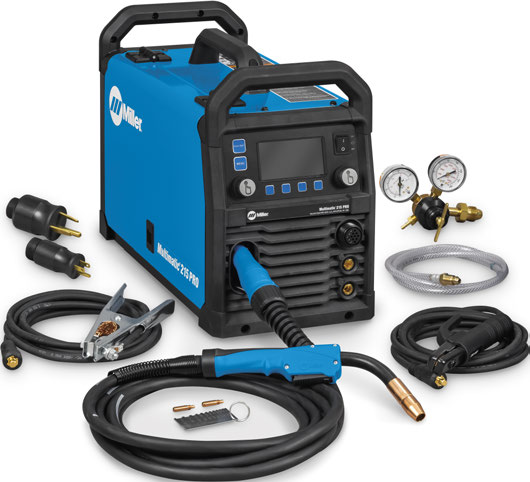

Included With This Machine
- Power source
- 15 ft. (4.6 m) MDX-100 MIG gun
- 15 ft. (4.6 m) cable with electrode holder and 25 mm Dinse-style connector
- 15 ft. (4.6 m) work cable with clamp
- 6.5 ft. (2 m) power cord with MVP plugs for 120 V and 240 V
- Flow gauge regulator and gas hose for argon or Ar/CO2 mix
- Two contact tips for .035 in. (0.9 mm) wire
- Quick Select drive roll for .024 in. solid, .030/.035 in. solid, and .030/.035 in. flux-cored wire
- Hook-and-loop cord wraps
- Material thickness gauge 229895
- Shielding gas and safety equipment not included
Dimensions
H: 14.625 in. (372 mm), W: 9.75 in. (248 mm), D: 20 in. (508 mm)
Source: Miller Electric Multimatic 215 PRO Spec Sheet, Issued June 2026, index DC/13.5. Product relationships on this page are kept separate from Amazon monetization data. Amazon buy buttons appear only after the product match, manufacturer, package quantity, and compatibility are verified.
