Processes
MIG (GMAW), Flux-cored (FCAW), DC stick (SMAW), AC/DC TIG (GTAW), Pulsed TIG (GTAW-P)
Miller MIG Machine Support
Multimatic 220 AC/DC
Portable 120/240 V AC/DC multiprocess Miller package with MIG, flux-cored, DC stick, AC/DC TIG, and pulsed TIG support. This page routes owners to the MDX-100 MIG gun, Spoolmate aluminum guns, Weldcraft A-150 TIG torch, foot controls, MVP plugs, cooler accessories, and drive-roll paths from the February 2026 spec sheet.
MIG (GMAW)Flux-cored (FCAW)DC stick (SMAW)AC/DC TIG (GTAW)Pulsed TIG (GTAW-P)
Light industrial multiprocess
Welding range
MIG 30 - 230 A; DC stick 30 - 200 A; AC/DC TIG 20 - 210 A
Input power
120/240 V, single-phase, 50/60 Hz
Wire feed speed
60 - 600 ipm (1.5 - 15.2 m/min.)
Weight
56 lb. (25.3 kg)
Class
Light industrial multiprocess
Feature Highlights
AC/DC Multiprocess
MIG, flux-cored, DC stick, AC TIG, DC TIG, and pulsed TIG support are packaged into one portable machine.
QuickTech
Automatically determines polarity, switches to the triggered process, and recalls the last settings used for that process.
Auto-Set
Predefined settings are available for MIG, stick, and AC/DC TIG with fine tuning after setup.
Pro-Set
Stick and TIG manual modes provide guided starting points for DIG, AC balance, AC frequency, and DC pulse.
MVP Multi-Voltage Plug
The power cord accepts 120 V and 240 V MVP plugs for common shop and field receptacles.
Dual Gas Connections
Separate MIG and TIG shielding gas connections let both gases stay connected to the machine.
14-Pin Controls
The standard 14-pin connector supports foot, fingertip, and wireless foot control options.
Generator Compatible
Full output is available from generators with 10,000-watt output or higher.
Machine Packages
| Stock number | Catalog package |
|---|---|
| 907757 | Multimatic 220 AC/DC, 120/240 V, 50/60 Hz with RFCS-14 HD foot control |
| 907757002 | Multimatic 220 AC/DC, 120/240 V, 50/60 Hz with wireless foot control |
| 951000070 | Multimatic 220 AC/DC with Cart; includes machine 907757 and dual cylinder rack cart 951770 |
| 951000104 | Multimatic 220 AC/DC with Cart; includes machine 907757002 and dual cylinder rack cart 951770 |
Compatible Accessories
AK2C TIG Accessory Kit
AK2C A-150 series accessory kit with short back cap, alumina nozzles, collets, collet bodies, and 2% ceriated tungsten.
Open support pageCoolmate 1S
301856 120/240 V, single-phase cooler for torches up to 250 amps; requires 25 mm flow-thru Dinse and coolant.
Open support page25 mm Flow Thru Dinse for Water Cooler
301883 Required for Multimatic 220 AC/DC use with Coolmate 1S.
Open support pageTIG Coolant
043810 One-gallon low-conductivity coolant; spec sheet notes it must be ordered in quantities of four.
Open support pageProtective Cover
301524 Protective machine cover listed for Multimatic 220 AC/DC.
Dual Cylinder Rack Cart
951770 Includes running gear/cylinder rack 301239 and dual cylinder rack conversion kit 301454; must be assembled together.
Buy link needs verification.
MVP Plug 6-50P
219258 240 V, 50 A MVP plug included with the machine.
MVP Plug 5-15P
219261 120 V, 15 A MVP plug included with the machine.
MVP Plug 5-20P
219259 120 V, 20 A MVP plug; optional and not included with the machine.
Material Thickness Gauge
229895 Material thickness gauge listed with the machine package and accessory table.
Buy link needs verification.
Replacement Screen Cover
271493 Replacement cover for the LCD display panel.
Buy link needs verification.
Flow Gauge Regulator for Argon or Ar/CO2 Mix
31-50-580-6 Replacement standard regulator for argon or argon/CO2 mix.
Open support pageFlow Gauge Regulator for CO2
31-50-320 Required if using 100 percent CO2 shielding gas.
Buy link needs verification.
Wireless Remote Foot Control
301580 Foot control with wireless 90 ft. (27.4 m) operating range; the spec sheet notes this machine is not compatible with wireless hand control.
Open support pageRFCS-14 HD Foot Control
301589 Heavy-duty foot control included with the TIG kit and TIG package.
Open support pageRCC-14 Remote Contactor and Current Control
151086 East/west rotary fingertip control with 26.5 ft. cord and 14-pin plug.
Open support pageRCCS-14 Remote Contactor and Current Control
043688 North/south rotary fingertip control with 26.5 ft. cord and 14-pin plug.
Open support pageQuick Select Drive Roll
261157 For .024 in. solid wire, .030/.035 in. solid wire, and .030/.035 in. flux-cored wire.
Open support pageV-Knurled Dual-Groove Drive Roll
202926 For .030/.035 in. or .045 in. flux-cored wire.
Open support pageCompatible Guns / Torches
MDX-100 MIG Gun
1770028 10 ft. (3 m), 100-amp MDX-100 MIG gun with MDX consumables for .030 - .035 in. wire.
Open support pageSpoolmate 100 Spool Gun
300371 12 ft. direct-connect spool gun for .030 - .035 in. aluminum 4043 wire and .023 - .035 in. steel/stainless wire; includes custom carrying case.
Open support pageSpoolmate 150 Spool Gun
301272 20 ft. direct-connect spool gun for .030 - .035 in. 4000/5000 series aluminum wire and .023 - .035 in. steel/stainless wire.
Open support pageWeldcraft A-150 (WP-17) TIG Torch
WP1712RDI25 12.5 ft. (3.8 m), 150-amp air-cooled TIG torch with 25 mm flow-thru Dinse-style connector.
Open support pageAK-150MFC TIG Torch Accessory Kit
AK-150MFC Modular flex conversion kit for Weldcraft A-150 (WP-17) TIG torch applications.
Open support pageExtended Power Pin
214-6-116 Required if using a Bernard BTB MIG gun.
Buy link needs verification.
Full machine details
Welding Output
- MIG/flux-cored, 120 V: 105 A at 19.2 V, 60% duty cycle
- MIG/flux-cored, 240 V: 200 A at 24 V, 20% duty cycle
- MIG/flux-cored, 240 V: 170 A at 21.5 V, 40% duty cycle
- Stick, 120 V: 90 A at 23.6 V, 40% duty cycle
- Stick, 240 V: 200 A at 28.4 V, 15% duty cycle
- TIG, 120 V: 130 A at 15.2 V, 40% duty cycle
- TIG, 240 V: 210 A at 18.4 V, 20% duty cycle
- Spec sheet notes superior stick arc performance even on difficult-to-run E6010 electrodes.
Wire Capacity
- Plastic hub with retaining ring accepts 8-inch spools; shaft also accepts 4-inch spools.
- Included Quick Select drive roll supports .024 in. solid wire, .030/.035 in. solid wire, and .030/.035 in. flux-cored wire.
- Included MDX-100 MIG gun is listed for .030 - .035 in. wire.
- Spoolmate 100 and Spoolmate 150 aluminum paths are listed separately from the steel MIG gun path.
Material Capacity
- MIG: 24 ga. - 3/8 in. steel
- MIG with aluminum spool gun: 18 ga. - 3/8 in. aluminum
- DC stick: 16 ga. - 3/8 in. steel
- AC/DC TIG: 24 ga. - 1/4 in. steel and aluminum

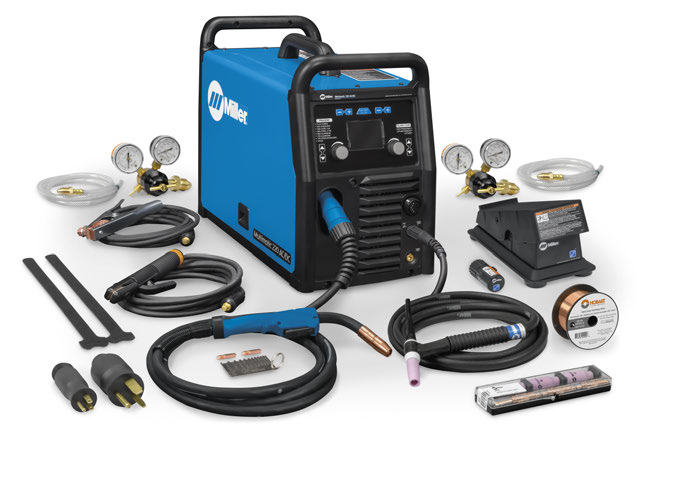

Included With This Machine
- Power source
- 10 ft. (3 m) MDX-100 MIG gun
- 13 ft. (4 m) cable with electrode holder and 25 mm Dinse-style connector
- 12.5 ft. (3.8 m) Weldcraft A-150 (WP-17) TIG torch with 25 mm Dinse-style connector
- 10 ft. (3 m) work cable with clamp and 25 mm Dinse-style connector
- 6.5 ft. (2 m) power cord with MVP plugs for 120 V and 240 V
- RFCS-14 HD foot control with 20 ft. (6 m) cord or wireless foot control, depending on package
- Two flow gauge regulators and gas hoses for argon or Ar/CO2 mix
- Hobart spool of .030 in. (0.8 mm) solid wire
- Two contact tips for .030 in. (0.8 mm) wire
- Quick Select drive roll for .024 in. solid, .030/.035 in. solid, and .030/.035 in. flux-cored wire
- AK2C TIG torch accessory kit
- Hook-and-loop cord wraps
- Material thickness gauge 229895
- Shielding gas and safety equipment not included
Dimensions
H: 17.5 in. (445 mm), W: 11.25 in. (286 mm), D: 21.5 in. (546 mm)
Source: Miller Electric Multimatic 220 AC/DC Spec Sheet, Issued February 2026, index AD/9.0. Product relationships on this page are kept separate from Amazon monetization data. Amazon buy buttons appear only after the product match, manufacturer, package quantity, and compatibility are verified.
