Identify the machine package
Match the 907579 12 ft. package or 907579001 20 ft. package before ordering a replacement torch or case.
Miller portable air plasma cutter
Miller Spectrum 625 X-TREME Plasma Cutter Machine Support
The Spectrum 625 X-TREME is a 120-240 V single-phase air plasma cutting and gouging system with Auto-Line circuitry, an XT40 torch, MVP adapters, and 30/40 amp consumable options. This page follows Miller specification sheet PC/9.6, issued October 2019.
Start Here
Use the shortest path for the machine, torch, consumables, or cutting problem you are trying to solve.
Replace the XT40 torch
The sheet lists 12 ft. and 20 ft. XT40 hand-held torches. Confirm cable length before ordering.
Find consumables
XT40 cutting parts are shared across the 30 A and 40 A configurations; gouging uses a separate tip and shield.
Check cut quality
Start with the correct air supply, tip, drag shield, electrode, standoff, and material thickness.
Use it with an engine drive
Miller lists compatibility with an engine-driven welder or generator that has a 240 V receptacle of 4 kW or more.
Open the family chart
Use the broader Miller Spectrum table when the machine is a different Spectrum model or the torch family is uncertain.
Spectrum 625 X-TREME Specs
Core machine data transcribed from PC/9.6. Output is automatically reduced when using 120 V input.

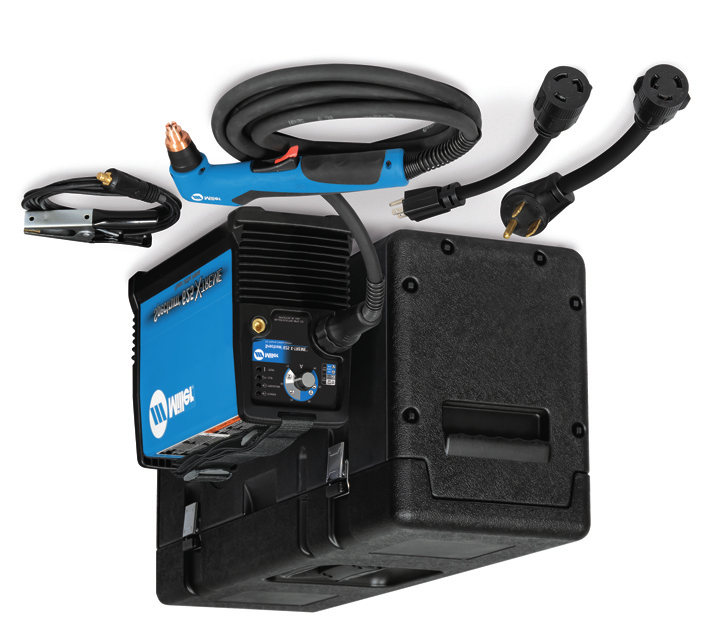

What Comes With the Machine
Package contents called out on the first page of the Miller sheet.
- XT40 hand-held torch with either a 12 ft. or 20 ft. cable, including a complete set of 40 A consumables.
- Heavy-duty work clamp with flexible cable and quick connect.
- 12 ft. power cord with a 240 V L6-30P twist-lock plug for MVP adapters.
- MVP adapters with 240 V / 50 A 6-50P and 120 V / 15 A 5-15P plugs; the 120 V / 20 A 5-20P adapter is optional.
- X-CASE protection, shoulder strap, and consumables box.
- Consumables box with two electrodes, two 40 A tips, one 30 A tip, one 30 A drag shield, one deflector, and an air fitting.
Cutting and Gouging Notes
Use the correct configuration for the work and verify the air supply before diagnosing the torch.
- At 40 A on 240 V, the sheet lists 1/4 in. mild steel at approximately 64 ipm and 5/8 in. at approximately 13 ipm.
- At 27 A on 120 V, the sheet lists 1/8 in. mild steel at approximately 88 ipm and 3/8 in. at approximately 15 ipm.
- Recommended maximum piercing is 5/16 in. for handheld cutting at 40 A and 1/8 in. at 27 A.
- For aluminum and other high-thermal-conductivity metals, Miller notes that cutting capability may be reduced by as much as 30%.
- For 30 A cutting, use the 30 A tip and drag shield. For 40 A cutting, use the 40 A tip and drag shield.
- For gouging, replace the cutting tip and drag shield with the XT40 gouge tip and gouge shield. The deflector improves arc visibility while maintaining a 1/16 in. standoff.
Machine Packages and Core Accessories
Exact ordering rows from PC/9.6. Direct buy buttons appear only where the approved Miller registry has a matching product.
| Part / stock | Item | Catalog use | Buy / lookup |
|---|---|---|---|
| 907579 | Spectrum 625 X-TREME 12 ft. package | 120-240 V power source with 12 ft. XT40 hand-held torch and X-CASE. | Search Amazon Site lookup |
| 907579001 | Spectrum 625 X-TREME 20 ft. package | 120-240 V power source with 20 ft. XT40 hand-held torch and X-CASE. | View on Amazon Site lookup |
| 300184 | X-CASE Carrying case | Protection and storage for the Spectrum 625 X-TREME, accessories, and gear. | View on Amazon Site lookup |
| 300517 | Full KVA adapter cord Power accessory | Field NEMA 14-50P to NEMA 6-50R adapter for engine-drive 120/240 V output. | View on Amazon Site lookup |
| 253521 | XT40 consumable kit Consumable kit | Kit with electrodes, 30/40 A tips and shields, deflector, o-ring, swirl ring, retaining cup, gouge parts, and silicone grease. | View on Amazon Site lookup |
| 253054 | Plasma standoff roller guide Cutting guide | Helps maintain recommended standoff distance to improve cutting performance and tip life. | View on Amazon Site lookup |
| 253055 | Plasma circle-cutting guide Cutting guide | Cuts straight lines or circles up to 12 in. diameter. | View on Amazon Site lookup |
XT40 Replacement Torches
Choose the torch cable length that matches the machine package and the operator's reach.
| Part | Torch | Use | Buy / lookup |
|---|---|---|---|
| 260633 | XT40 hand-held torch 12 ft. | 12 ft. XT40 replacement torch for the shorter package. | View on Amazon Site lookup |
| 260635 | XT40 hand-held torch 20 ft. | 20 ft. XT40 replacement torch for the longer package. | View on Amazon Site lookup |
| 259305 / 257462 | XT40M machine torch paths 25 ft. long or short body | Listed in the Miller Spectrum torch selection data; confirm machine-torch body and fitment before ordering. | Open XT40M support Site lookup |
XT40 Consumables
The XT40 can be configured for 30 A or 40 A cutting. Verify the amperage, torch family, and part number together.
| Part | Item | Configuration | Buy / lookup |
|---|---|---|---|
| 249969 | O-ring | Common XT40 consumable component. | Find My Part |
| 249931 | Swirl ring | Common XT40 consumable component. | View on Amazon Site lookup |
| 249926 | Electrode | Common XT40 consumable component. | View on Amazon Site lookup |
| 249928 / 249927 | Cutting tips | 249928 for 40 A; 249927 for 30 A. | 40 A tip 30 A tip Lookup |
| 251960 / 249930 | Drag shields | 251960 for 40 A; 249930 for 30 A. | 40 A shield 30 A shield Lookup |
| 249932 | Retaining cup | Common XT40 consumable component. | View on Amazon Site lookup |
| 249933 | Deflector | Improves arc visibility while maintaining a 1/16 in. standoff. | View on Amazon Site lookup |
| 249934 / 249936 | Gouge tip and gouge shield | Replace the cutting tip and drag shield for gouging. | Gouge tip Gouge shield Lookup |
Genuine Miller Accessories
Additional accessories shown in the PC/9.6 catalog. Search links are buying aids; use the WSP lookup to confirm the part before ordering.
| Part | Accessory | Catalog note | Buy / lookup |
|---|---|---|---|
| 195979 | Suction/magnetic pivot base | Attachment for a cutting guide on flat surfaces; extended arm accommodates holes up to 30 in. | Search Amazon Site lookup |
| 228926 | In-line air filter kit | Includes 1/4 in. NPT quick disconnect fittings and hose; filter element to .85 microns. | View on Amazon Site lookup |
| 228928 | Replacement filter element | Replacement element for in-line air filter kit 228926. | View on Amazon Site lookup |
| 239642 / 231867 | Torch cable covers | 239642 for 20 ft.; 231867 for 25 ft. | 20 ft. 25 ft. Lookup |
| 263799 / 263800 | Flexible work cable | 263799 for 12 ft.; 263800 for 20 ft.; both include quick connect and heavy-duty clamp. | 12 ft. 20 ft. Lookup |
| 254328 / 254330 / 254331 | MVP adapters | 6-50P 240 V / 50 A included; 5-15P 120 V / 15 A included; 5-20P 120 V / 20 A optional. | 6-50P 5-15P 5-20P |
| 235658 / 235657 / 235659 | Shade 5 safety glasses | Black, blue, and orange frame options; recommended by Miller for plasma work. | Search Amazon Site lookup |
| 272205 / 272209 | Slag safety glasses | Black and white frame options; shade 5 lens family listed in the catalog. | Search Amazon Site lookup |
Source: Miller Electric Spectrum 625 X-TREME specification sheet PC/9.6, issued October 2019, pages 1-4. Compatibility and accessory descriptions are transcribed from the supplied Miller literature. Amazon links are optional buying aids; direct buttons are limited to approved Miller registry matches.
