Miller XLi Helmet Parts Breakdown
Match a number in the original XLi drawing to the part number below. XLi and XLix use different lens assemblies, cover lenses, holders and headgear. Check the helmet model and part number before ordering.

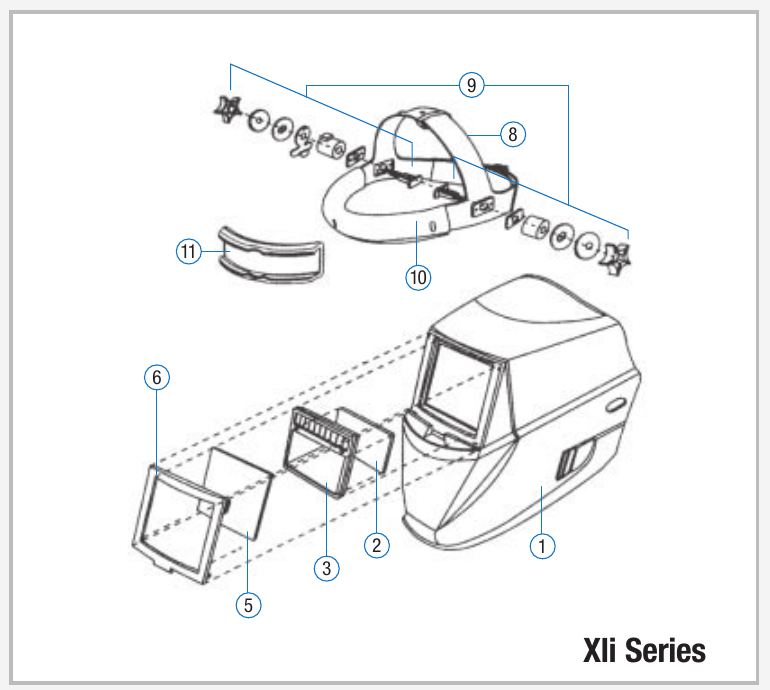

Numbered diagram
Diagram callouts 1, 2, 3, 5, 6, 8, 9, 10 and 11 match the table.
Parts list
| Item | Part number | Description | Buy |
|---|---|---|---|
| 1 | 217606 | Black helmet shell (listed N/A in the 2011 catalog) | Check availability with Miller |
| 2 | 770237 | Inside lens cover, 4-1/4 x 2 in (5-pack) | Search Amazon |
| 3 | 216822 | Auto-darkening lens assembly | Search Amazon |
| 5 | 770240 | Front lens cover, 4-1/2 x 3-3/8 in (5-pack) | Search Amazon |
| 6 | 770156 | Black front lens holder | Search Amazon |
| 6 | 770242 | Gray front lens holder | Search Amazon |
| 6 | 223460 | Blue front lens holder | Search Amazon |
| 8 | 770120 | Ratchet headgear assembly | Search Amazon |
| 9 | 770247 | Adjustment angle/stop hardware kit | Search Amazon |
| 10 | 770249 | Fabric headband | Search Amazon |
| 11 | 216336 | Comfort cushion | Search Amazon |
| Not shown | 213110 | Hard-hat adapter | Search Amazon |
| Not shown | 217043 | CR2450 lithium battery | Search Amazon |
| Not shown | 217044 | Battery cover | Search Amazon |
| Not shown | 770250 | Miller helmet bag | Search Amazon |
Amazon buttons search for the Miller part number; results are not verified listings. Parts shown as N/A in the source catalog have no buy link. As an Amazon Associate, WSP earns from qualifying purchases.
Source: Miller welding protection replacement-parts guide (2011), XLi column and numbered drawing, and Miller OM-217 741C. Confirm your helmet's exact version. Miller manuals and parts.
