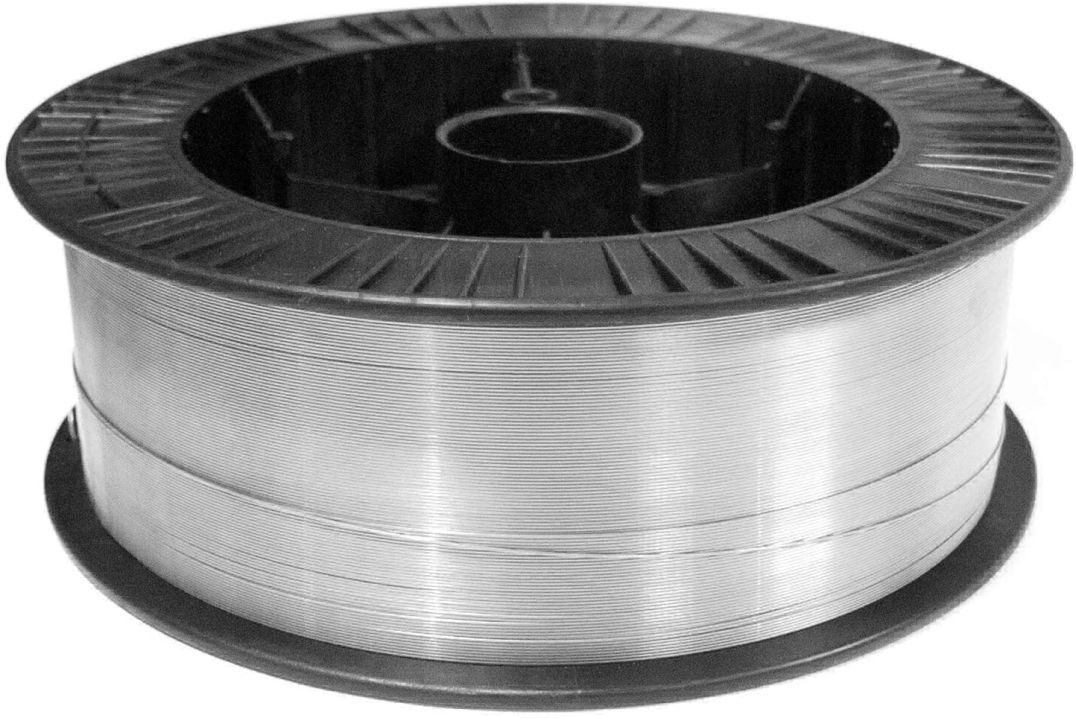

Washington Alloy Stainless 310 GMAW
Washington Alloy 310 stainless MIG wire setup guidance and spool options.
MIG (GMAW)
Washington Alloy
Amazon gated until verified
Process Notes
310 is used for welding types AISI 310, 304 clad stainless steel, ferritic and martensitic chromium steels, and for stainless steel overlay work on mild and carbon steels. 310 welding wire produces weld deposits of high strength and high resistance to scalling at elevated temperatures.
TYPICAL CHEMISTRY : Carbon 0.14 Manganese 1.80
Nickel 21.10 Chromium 27.00
Silicon 0.50
Short-Circuit Setup
Power: DCEP Short Circuit Shielding gas: Tri-mix gas = 90%He+7.5%Ar+2.5%CO2 | SPECIFICATIONS: ANSI/AWS A5.9 ER310 ASME SFA 5.9 ER310 |
| Wire Size | Wire Speed (IPM) | Amps | Volts | Stick out | Trimix Flow (CFH) |
|---|---|---|---|---|---|
| .023 | 180-400 | 30-85 | 14-19 | 3/8-1/2" | 20-25 |
| .030 | 150-350 | 45-125 | 15-20 | 3/8-1/2" | 20-25 |
| .035 | 120-330 | 60-150 | 16-22 | 3/8-1/2" | 20-30 |
| .045 | 100-280 | 90-210 | 17-22 | 3/8-1/2" | 25-30 |
Spray Transfer Setup
Power: DCEP Spray Arc Shielding gas: 98% Argon / 2% Oxygen | SPECIFICATIONS: ANSI/AWS A5.9 ER310 ASME SFA 5.9 ER310 |
| Wire Size | Wire Speed (IPM) | Amps | Volts | Stick out | 98/2 Flow (CFH) |
|---|---|---|---|---|---|
| .030 | 280-600 | 160-220 | 24-28 | 3/8-1/2" | 25-35 |
| .035 | 250-470 | 170-295 | 23-29 | 1/2-3/4" | 25-35 | |
| .045 | 200-385 | 195-360 | 24-30 | 1/2-3/4" | 30-35 |
| 1/16 | 110-200 | 210-380 | 25-31 | 1/2-3/4" | 35-40 |
310 .035 Solid Wire
310 .035 - 11 LB Spool - 8" Spool
Amazon link: Needs verification.
310 .035 - 33 LB Spool - 12" Spool
Amazon link: Needs verification.310 .045 Solid Wire
310 .045 - 2 LB Spool - 4" Spool
Amazon link: Needs verification.
310 .045 - 11 LB Spool - 8" Spool
Amazon link: Needs verification.
310 .045 - 11 LB Spool - 12" Spool
Amazon link: Needs verification.310 1/16 Solid Wire
310 1/16 - 33 LB Spool - 12" Spool
