Consumable diagram
Mechanized Consumables

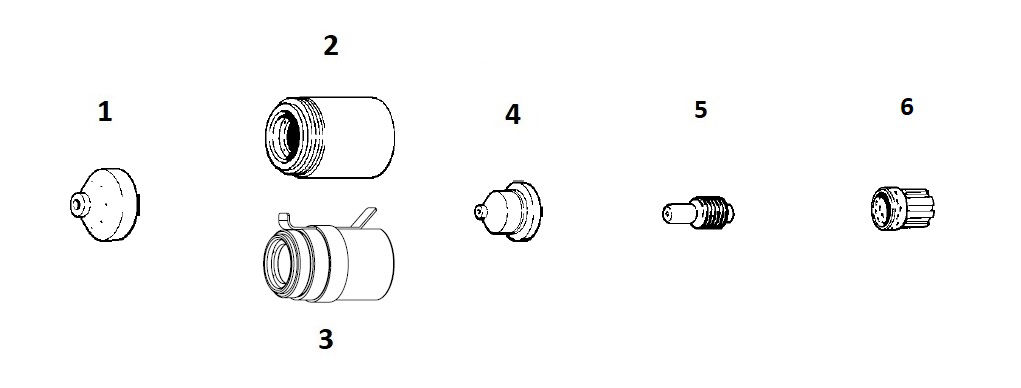

Mechanized consumable stack for the PAC123M machine torch.
Plasma torch support

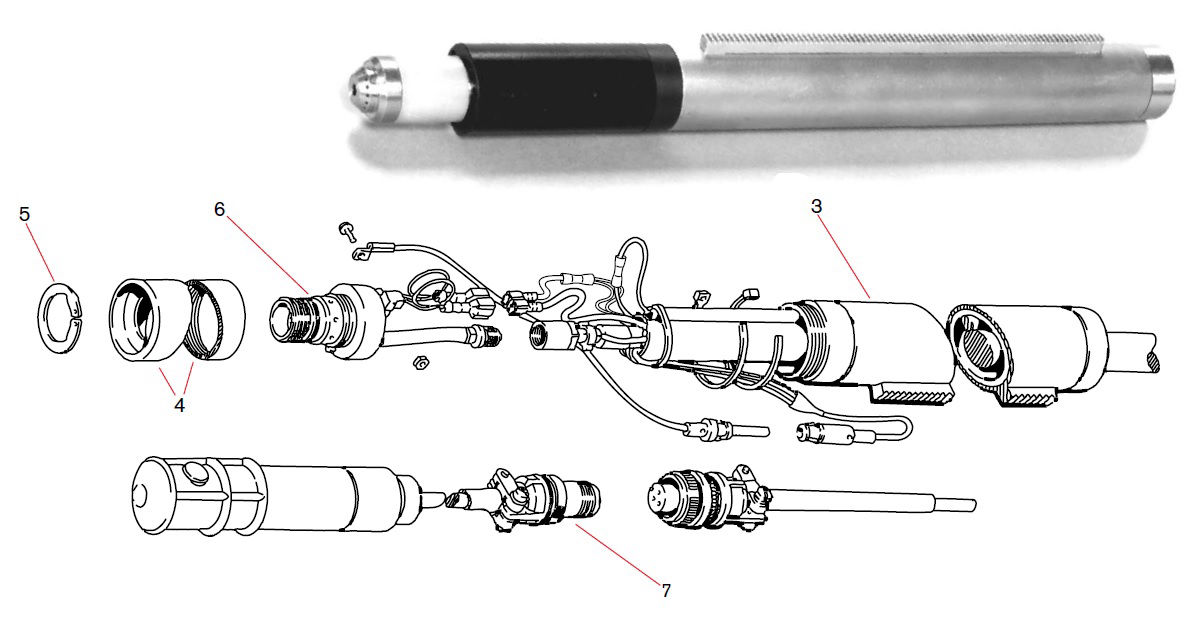

PAC123M machine torch positioning parts, sleeves, pendants, work leads, mechanized consumables, unshielded consumables, gouging consumables, and FineCut consumables for the Powermax 600 platform.
Hypertherm consumable reference
Consumable diagrams for the PAC123M machine torch on the Powermax 600 support path. Use the parts list below to identify mechanized, unshielded, FineCut, or gouging consumables before ordering.
Consumable diagram
Mechanized consumable stack for the PAC123M machine torch.
Consumable diagram
Unshielded consumable stack for the PAC123M support path.
Consumable diagram
FineCut consumable stack for the PAC123M support path.
Consumable diagram
Gouging consumable stack for the PAC123M support path.
As an Amazon Associate, I earn from qualifying purchases.
| Item # | Part # | Description | Qty | Buy |
|---|---|---|---|---|
| 3 | 020620 |
Torch positioning sleeve
|
Buy link unavailable. | |
| 4 | 120613 |
Torch sleeve
|
Buy link unavailable. | |
| 5 | 027599 |
Snap ring
|
Buy link unavailable. | |
| 6 | 044016 |
O-ring, Buna – N 90 Duro (pk of 5)
|
pk of 5 | View on Amazon |
| 7 | 028714 |
On/Off pendant, 7.6 m (25')
|
Buy link unavailable. | |
| 7 | 128061 |
On/Off pendant, 15.2 m (50')
|
Buy link unavailable. | |
| 7 | 128062 |
On/Off pendant, 22.8 m (75')
|
Buy link unavailable. | |
| Ground | 123375 |
Work lead with clamp, 4.5 m (15')
|
Buy link unavailable. | |
| Ground | 128379 |
Work lead with clamp, 15.2 m (50')
|
Buy link unavailable. | |
| 1 | 120827 |
Shield/Deflector
|
View on Amazon | |
| 2 | 120600 |
Retaining cap
|
View on Amazon | |
| 3 | 120964 |
Ohmic Retaining cap
|
Buy link unavailable. | |
| 4 | 120826 |
40 Amp Shielded Nozzle (pk of 5)
|
pk of 5 | View on Amazon |
| 5 | 120573 |
40 Amp Electrode (pk of 5)
|
pk of 5 | View on Amazon |
| 5 | 120576 |
Swirl Ring
|
View on Amazon | |
| 1 | 120303 |
Deflector
|
Buy link unavailable. | |
| 2 | 120600 |
Retaining cap
|
View on Amazon | |
| 3 | 120606 |
35 Amp Nozzle (pk of 5)
|
pk of 5 | View on Amazon |
| 4 | 120574 |
35 Amp Electrode (pk of 5)
|
pk of 5 | View on Amazon |
| 4 | 120576 |
Swirl Ring
|
View on Amazon | |
| 1 | 120608 |
Shield/Deflector
|
Buy link unavailable. | |
| 2 | 120600 |
Retaining cap
|
View on Amazon | |
| 3 | 120831 |
Gouging Nozzle (pk of 5)
|
pk of 5 | Buy link unavailable. |
| 4 | 120573 |
Plasma Electrode (pk of 5)
|
pk of 5 | View on Amazon |
| 5 | 120576 |
Swirl ring
|
View on Amazon | |
| 1 | 120303 |
Deflector
|
Buy link unavailable. | |
| 2 | 120600 |
Retaining cap
|
View on Amazon | |
| 3 | 220330 |
40 Amp Nozzle (pk of 5)
|
pk of 5 | Buy link unavailable. |
| 4 | 120574 |
40 Amp Electrode (pk of 5)
|
pk of 5 | View on Amazon |
| 5 | 120576 |
Swirl Ring
|
View on Amazon |
Related consumables
Hand torch path for the Powermax 600 platform.
Open PAC123T hand torchDuramax retrofit machine torch option for the Powermax 600 platform.
Open Duramax MRT machine torch
Match the part number, machine model, gun or torch family, package quantity, and generation before buying. Amazon links are convenience links only, not compatibility proof.
