MIG spool gun support

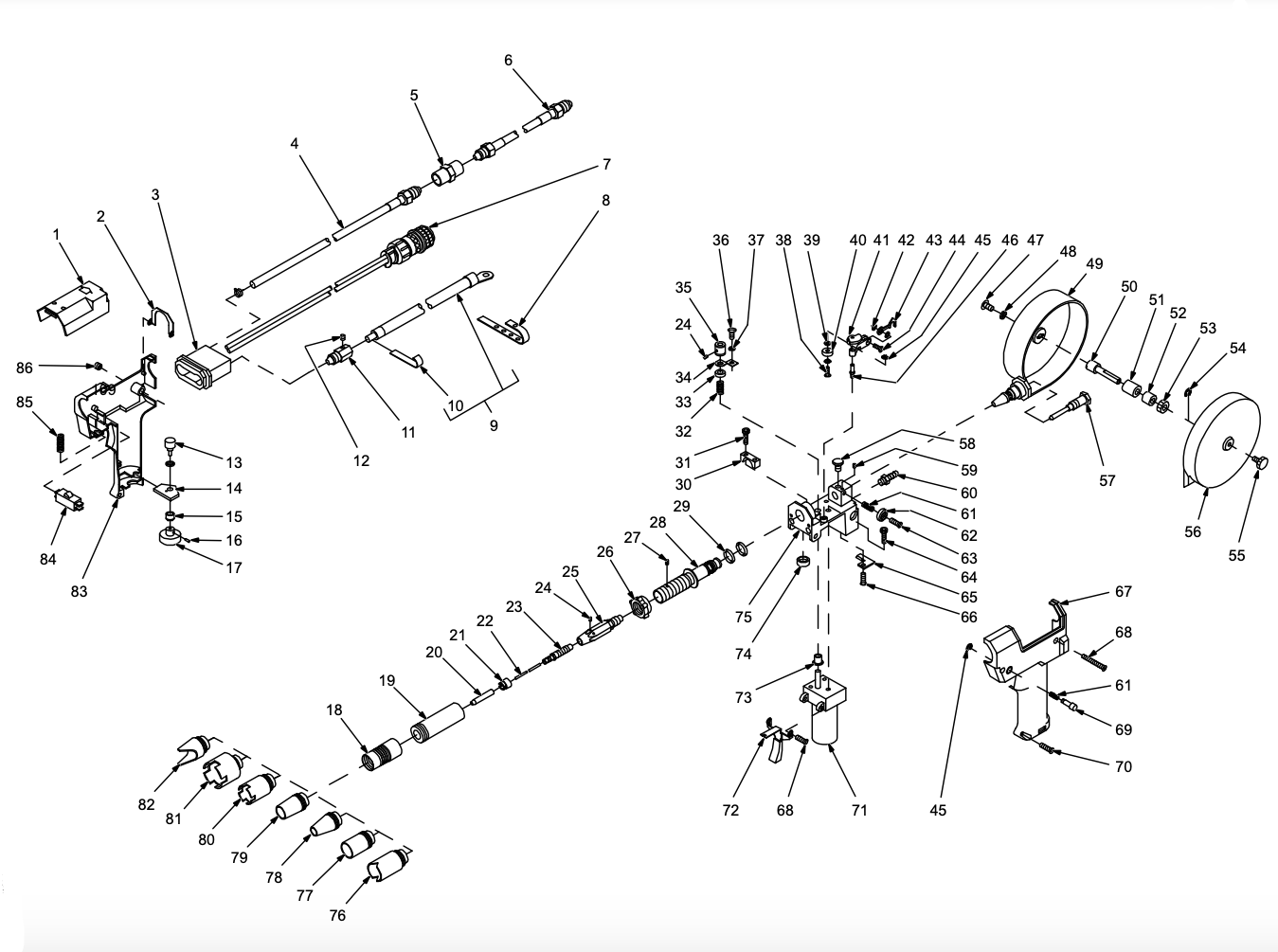

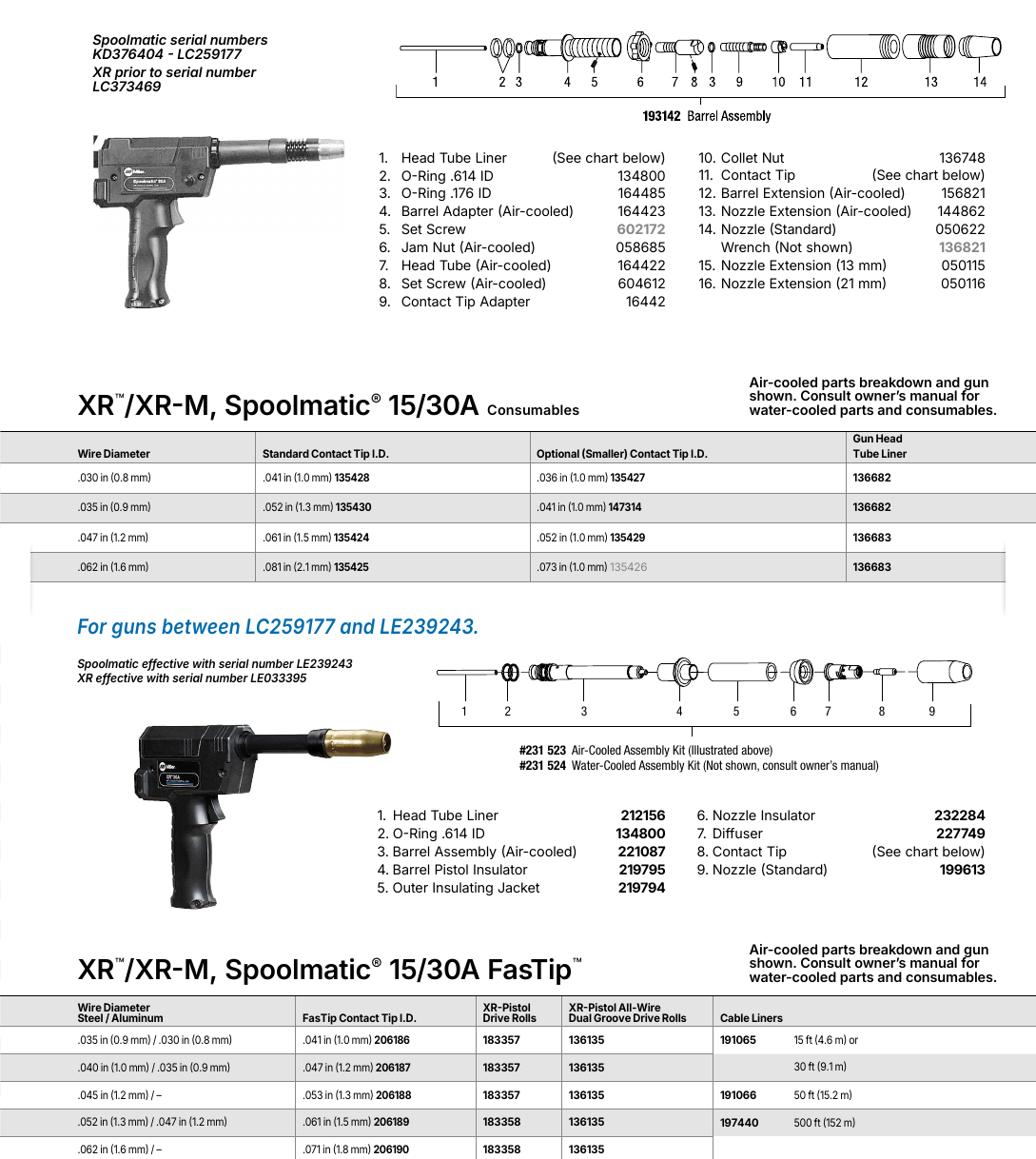

Miller Spoolmatic Spool Guns Parts Breakdown

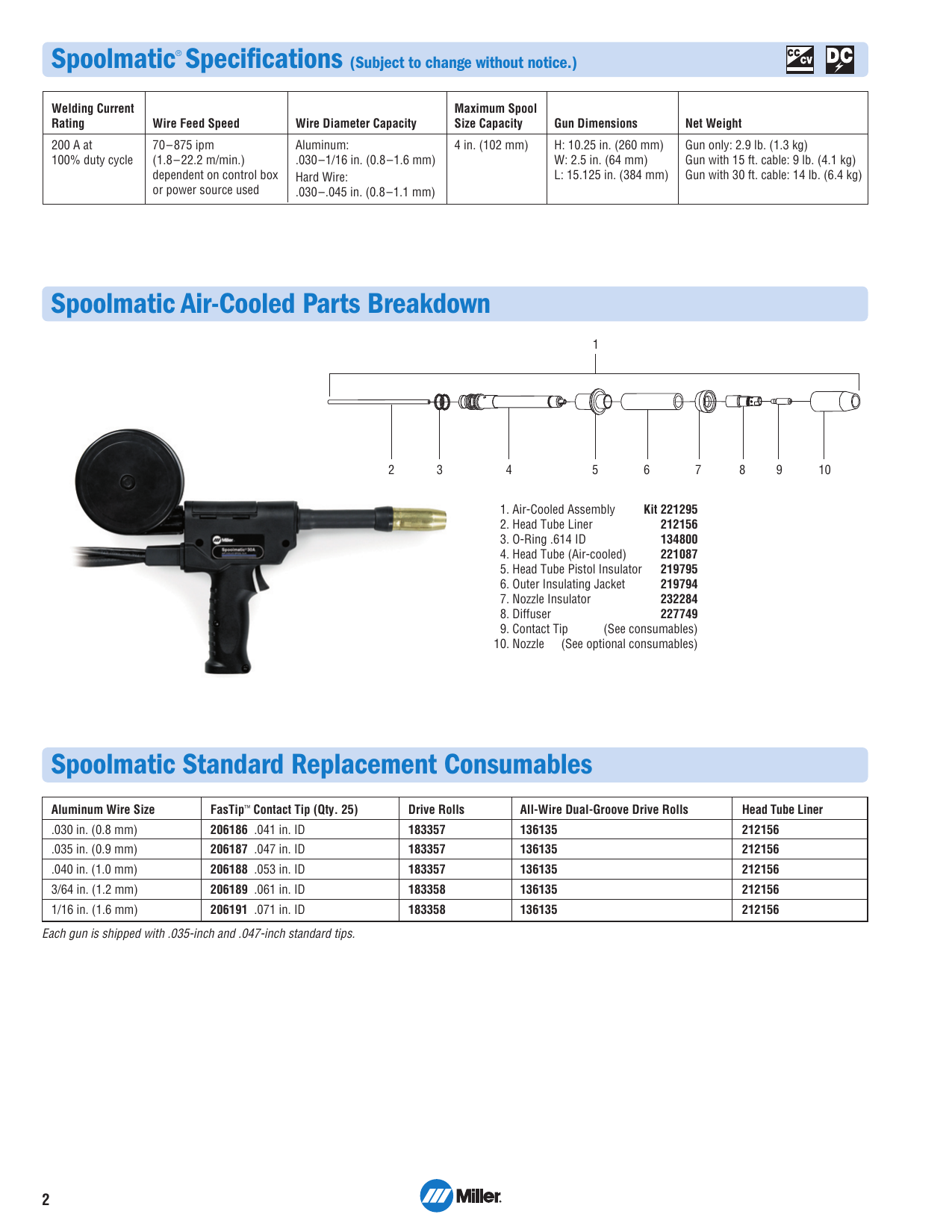

Spoolmatic guns are industrial aluminum spool guns available in 15 ft. and 30 ft. cable lengths, including Spoolmatic Pro.

Item number lookup

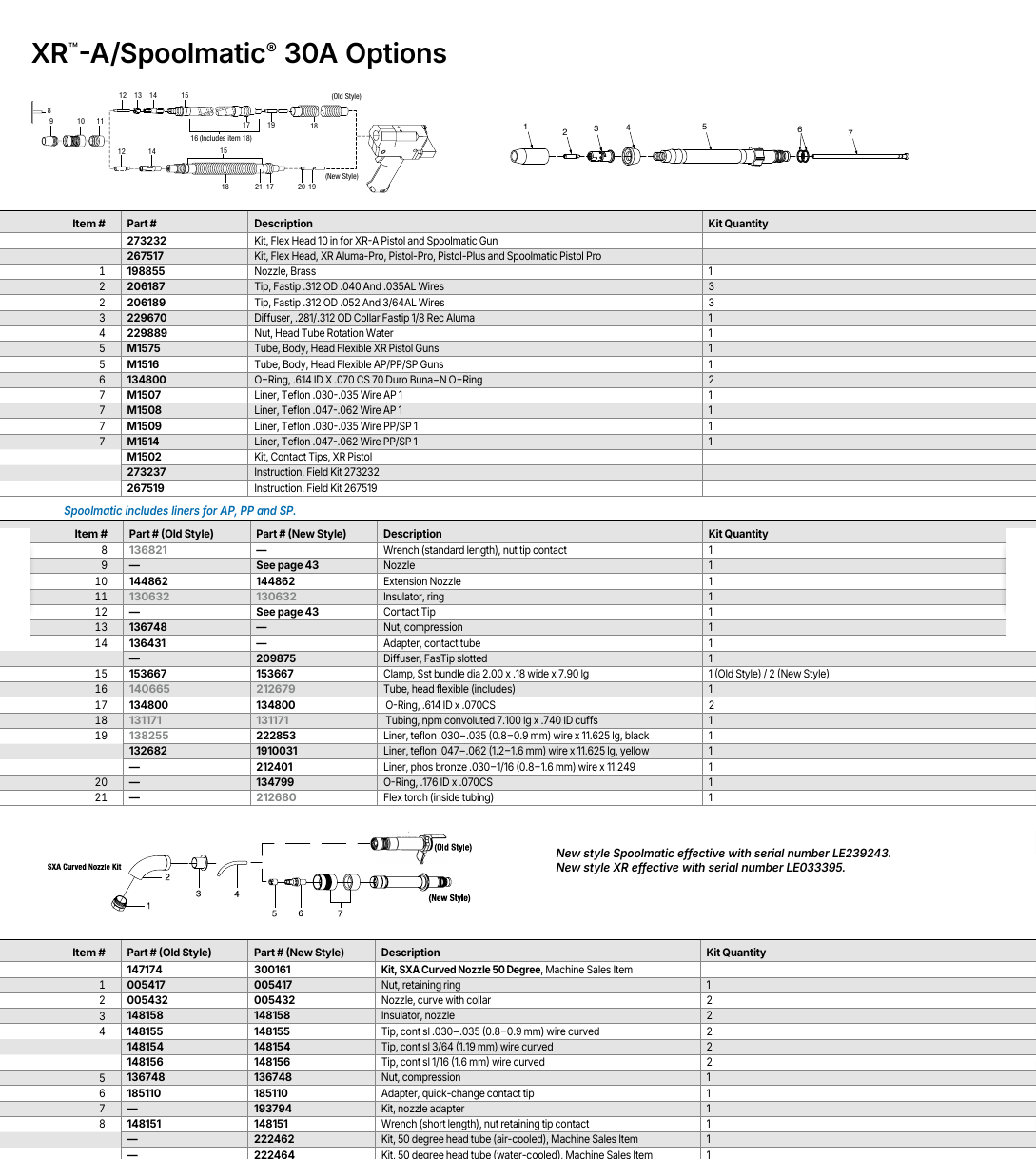

Parts List

As an Amazon Associate, I earn from qualifying purchases.

Item # Part # Description Qty Buy
Gun 195156
Spoolmatic, 15 ft. (4.6 m), 200 A at 100% duty cycle
gun assembly Spoolmatic gun models Wire size: Aluminum .030 - 1/16 in.; solid .030 - .045 in.
Spoolmatic family
1 N/A
Gun 130831
Spoolmatic, 30 ft. (9 m), 200 A at 100% duty cycle
gun assembly Spoolmatic gun models Wire size: Aluminum .030 - 1/16 in.; solid .030 - .045 in.
Spoolmatic family
1 N/A
Gun 301147
Spoolmatic Pro, 15 ft. (4.6 m), 200 A at 100% duty cycle
gun assembly Spoolmatic gun models Wire size: Aluminum .030 - 1/16 in.; solid .030 - .045 in.
Spoolmatic family
1 N/A
Gun 301148
Spoolmatic Pro, 30 ft. (9 m), 200 A at 100% duty cycle
gun assembly Spoolmatic gun models Wire size: Aluminum .030 - 1/16 in.; solid .030 - .045 in.
Spoolmatic family
1 N/A
1 058678
Adapter, contact tube
adapter Spoolmatic consumables and replacement parts XR-15/30 alternate part shown in source: 112704.
Spoolmatic family
1 Amazon link: Needs verification.
2 009541
Adapter, barrel
adapter Spoolmatic consumables and replacement parts XR-15/30 alternate part shown in source: 112885.
Spoolmatic family
1 Amazon link: Needs verification.
3 604771
Screw, set steel socket head 10-32 x .125 cup point
hardware Spoolmatic consumables and replacement parts
Spoolmatic family
4 Amazon link: Needs verification.
4 058681
Liner, teflon .030-.035 wire x 5.187
liner Spoolmatic consumables and replacement parts Wire size: .030-.035 in.
Spoolmatic family
3 Amazon link: Needs verification.
4 058682
Liner, teflon .047-1/16 wire x 5.187
liner Spoolmatic consumables and replacement parts Wire size: .047-1/16 in.
Spoolmatic family
3 Amazon link: Needs verification.
5 058685
Nut, jam nozzle extension
retaining hardware Spoolmatic consumables and replacement parts
Spoolmatic family
1 Amazon link: Needs verification.
6 058676
Nut, brass compression .438-20
retaining hardware Spoolmatic consumables and replacement parts
Spoolmatic family
1 Amazon link: Needs verification.

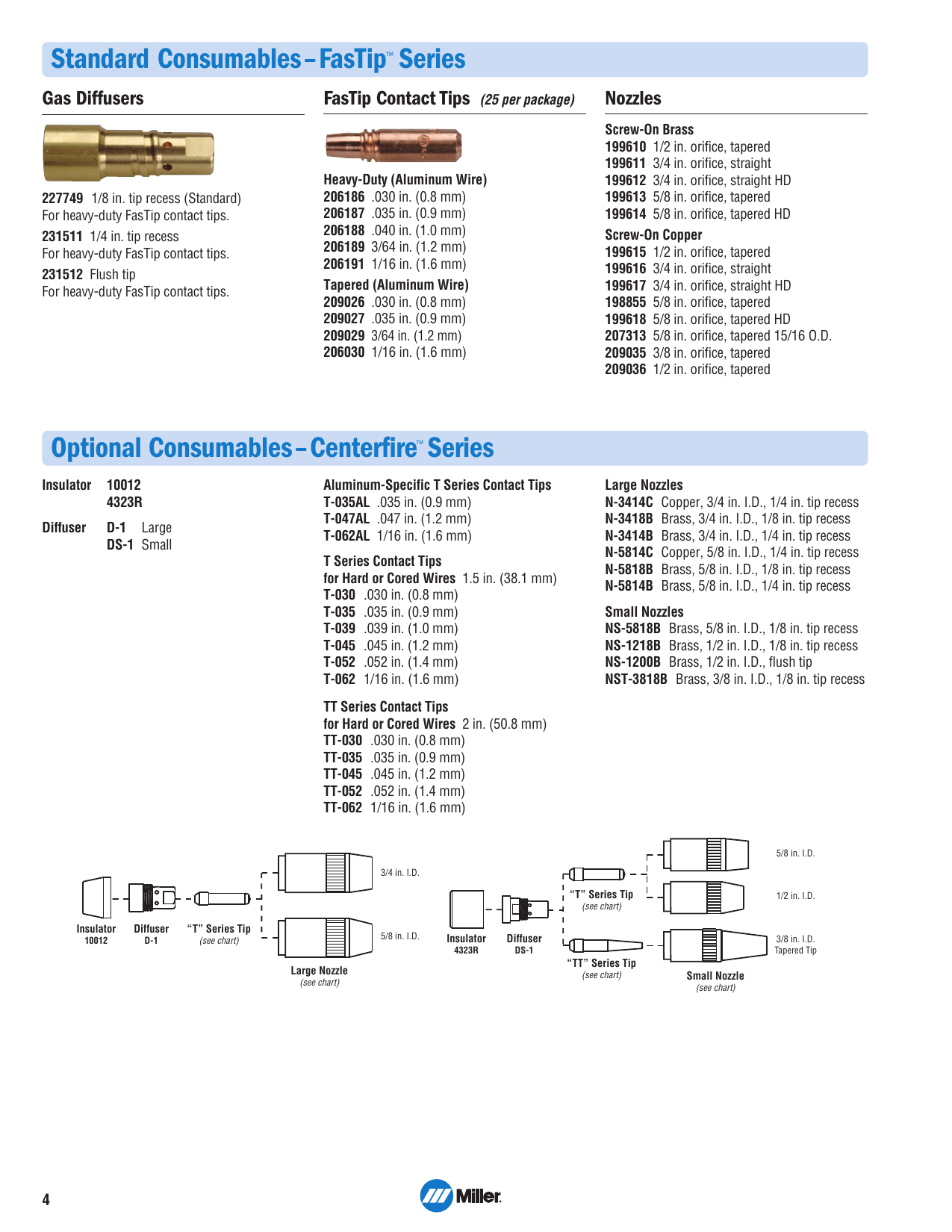

7 050638
Contact tube .030 wire x 4.000
contact tube Spoolmatic consumables and replacement parts Wire size: .030 in.
Spoolmatic family
1 (5 per pkg) Amazon link: Needs verification.
7 094259
Contact tube .035 wire x 4.000
contact tube Spoolmatic consumables and replacement parts Wire size: .035 in.
Spoolmatic family
1 (5 per pkg) Amazon link: Needs verification.
7 094260
Contact tube .047 wire x 4.000
contact tube Spoolmatic consumables and replacement parts Wire size: .047 in.
Spoolmatic family
1 (5 per pkg) Amazon link: Needs verification.
7 050637
Contact tube 1/16 wire x 4.000
contact tube Spoolmatic consumables and replacement parts Wire size: 1/16 in.
Spoolmatic family
1 (5 per pkg) Amazon link: Needs verification.
8 156821
Extension, barrel 2.875 length
barrel extension Spoolmatic consumables and replacement parts
Spoolmatic family
1 Amazon link: Needs verification.
9 144862
Extension, nozzle
nozzle extension Spoolmatic consumables and replacement parts
Spoolmatic family
1 Amazon link: Needs verification.
10 050622
Nozzle, 5/8 orifice x 1-5/8 length
nozzle Spoolmatic consumables and replacement parts
Spoolmatic family
1 (2 per pkg) Amazon link: Needs verification.
11 050115
Nozzle, 1/2 orifice x 1-5/8 length
nozzle Spoolmatic consumables and replacement parts
Spoolmatic family
1 (2 per pkg) Amazon link: Needs verification.
12 050116
Nozzle, 13/16 orifice x 1-5/8 length
nozzle Spoolmatic consumables and replacement parts
Spoolmatic family
1 (2 per pkg) Amazon link: Needs verification.
13 009925
Nozzle, spot outside corner .937 ID x 2.375
nozzle Spoolmatic consumables and replacement parts
Spoolmatic family
1 Amazon link: Needs verification.
14 000443
Nozzle, spot inside corner
nozzle Spoolmatic consumables and replacement parts
Spoolmatic family
1 Amazon link: Needs verification.
15 004466
Nozzle, spot flat, 1-3/8 orifice
nozzle Spoolmatic consumables and replacement parts
Spoolmatic family
1 Amazon link: Needs verification.
16 000442
Nozzle, spot flat, 15/16 orifice
nozzle Spoolmatic consumables and replacement parts
Spoolmatic family
1 Amazon link: Needs verification.
Tool 050960
Wrench
tool Spoolmatic consumables and replacement parts
Spoolmatic family
1 Amazon link: Needs verification.
Drive 053131
Drive Roll, V-knurl .030-1/16
drive roll Spoolmatic consumables and replacement parts Wire size: .030-1/16 in.
Spoolmatic family
1 Amazon link: Needs verification.

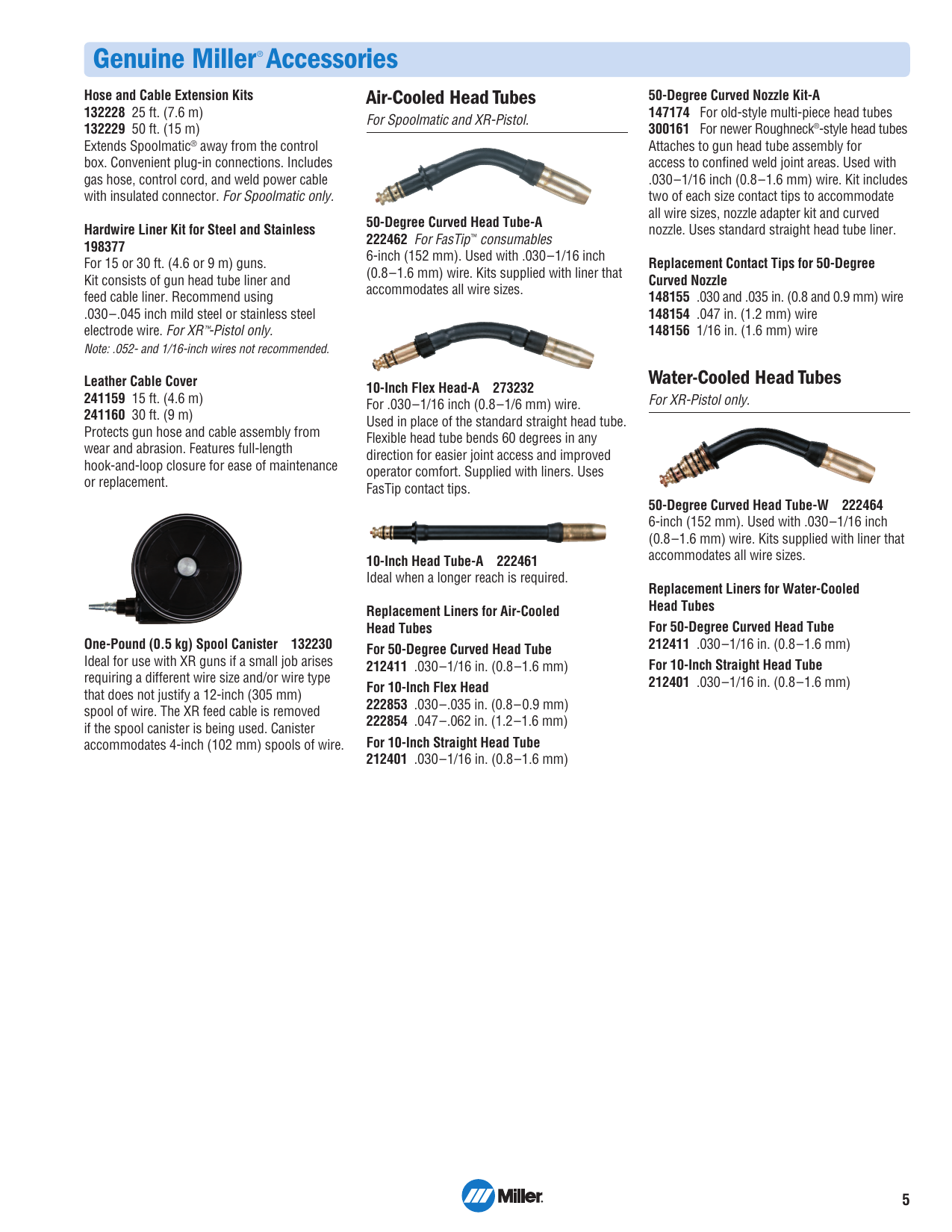

Cable 194405
Complete conduit assembly with liner and fittings, 15 ft.
conduit Spoolmatic consumables and replacement parts
Spoolmatic family
15 ft. Amazon link: Needs verification.
Cable 194410
Complete conduit assembly with liner and fittings, 30 ft.
conduit Spoolmatic consumables and replacement parts
Spoolmatic family
30 ft. Amazon link: Needs verification.
Liner 191065
Replacement liner, gun feed cable .187 OD x .110 ID
liner Spoolmatic consumables and replacement parts
Spoolmatic family
32 ft. Amazon link: Needs verification.
Liner 191066
Replacement liner, gun feed cable .187 OD x .110 ID
liner Spoolmatic consumables and replacement parts
Spoolmatic family
50 ft. Amazon link: Needs verification.
Liner 197440
Replacement liner, bulk gun feed cable .187 OD x .110 ID
liner Spoolmatic consumables and replacement parts
Spoolmatic family
500 ft. Amazon link: Needs verification.
Carrier 191061
Replacement tubing, gun liner carrier
liner carrier Spoolmatic consumables and replacement parts
Spoolmatic family
15 ft. Amazon link: Needs verification.
Carrier 191062
Replacement tubing, gun liner carrier
liner carrier Spoolmatic consumables and replacement parts
Spoolmatic family
30 ft. Amazon link: Needs verification.
Carrier 191063
Replacement tubing, gun liner carrier
liner carrier Spoolmatic consumables and replacement parts
Spoolmatic family
50 ft. Amazon link: Needs verification.
Kit 156486
Conversion kit, converts XRs with 4 in. contact tubes to 1-7/16 in. tubes
conversion kit Spoolmatic consumables and replacement parts
Spoolmatic family
1 Amazon link: Needs verification.
Control 137546
WC-115A control
control Spoolmatic consumables and replacement parts
Spoolmatic family
N/A
Control 137546011
WC-115A with contactor
control Spoolmatic consumables and replacement parts
Spoolmatic family
N/A
Control 137549
WC-24 control
control Spoolmatic consumables and replacement parts
Spoolmatic family
N/A
