Duramax MRT Retrofit Machine Torch torch assembly and replacement parts from the Hypertherm parts catalog. Match the item number on the breakdown to the parts list before ordering.
As an Amazon Associate, I earn from qualifying purchases. Buy buttons only appear where a WSP-approved Amazon registry match exists.
| Item # | Part # | Description | Qty | Buy |
|---|---|---|---|---|
| 40 | 120928 |
Hypertherm part 120928
|
Verification pending | |
| 40 | 120932 |
Hypertherm part 120932
|
Verification pending | |
| 40 | 220006 |
Hypertherm part 220006
|
Verification pending | |
| 60 | 120931 |
Hypertherm part 120931
|
Verification pending | |
| 60 | 220007 |
Hypertherm part 220007
|
Verification pending | |
| 60 | 220061 |
Hypertherm part 220061
|
Verification pending | |
120925 |
Hypertherm Shield/Deflector 120925
|
Verification pending | ||
120925 |
Hypertherm part 120925
|
Verification pending | ||
120925 |
Hypertherm Swirl ring 120925
|
Verification pending | ||
120926 |
Hypertherm Shield/Deflector 120926
|
Verification pending | ||
120926 |
Hypertherm part 120926
|
Verification pending | ||
120926 |
Hypertherm Electrode 120926
|
Verification pending | ||
120928 |
Hypertherm Shield/Deflector 120928
|
Verification pending | ||
120928 |
Hypertherm Retaining cap 120928
|
Verification pending | ||
120929 |
Hypertherm Shield/Deflector 120929
|
Verification pending | ||
120930 |
Hypertherm part 120930
|
Verification pending | ||
120977 |
Hypertherm Shield/deflector 120977
|
Verification pending | ||
120979 |
Hypertherm Shield/Deflector 120979
|
Verification pending | ||
220059 |
Hypertherm Nozzle 220059
|
Verification pending |

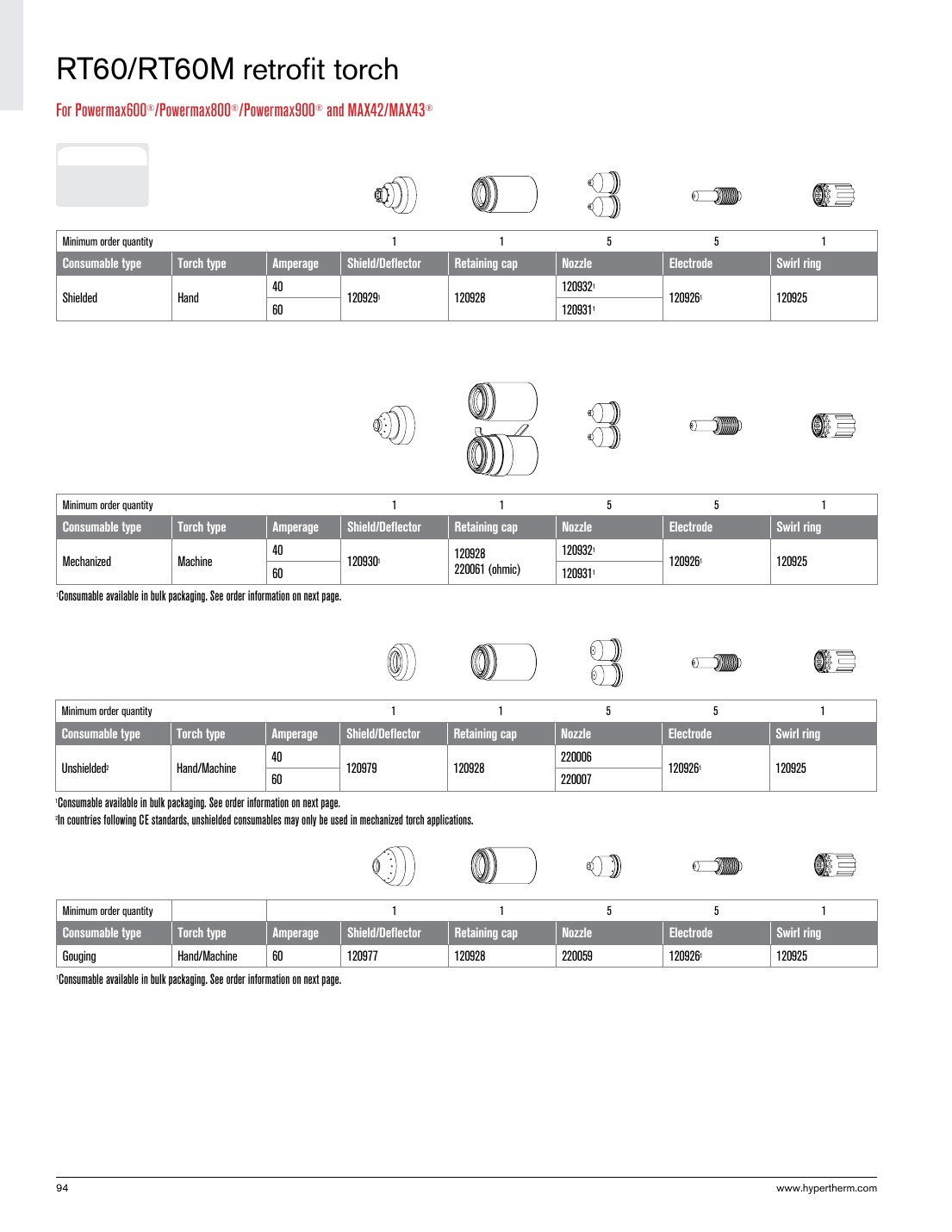

Source: 2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems, page 96. Catalog page images are used when a cleaned diagram asset is not already available.
Hypertherm plasma support

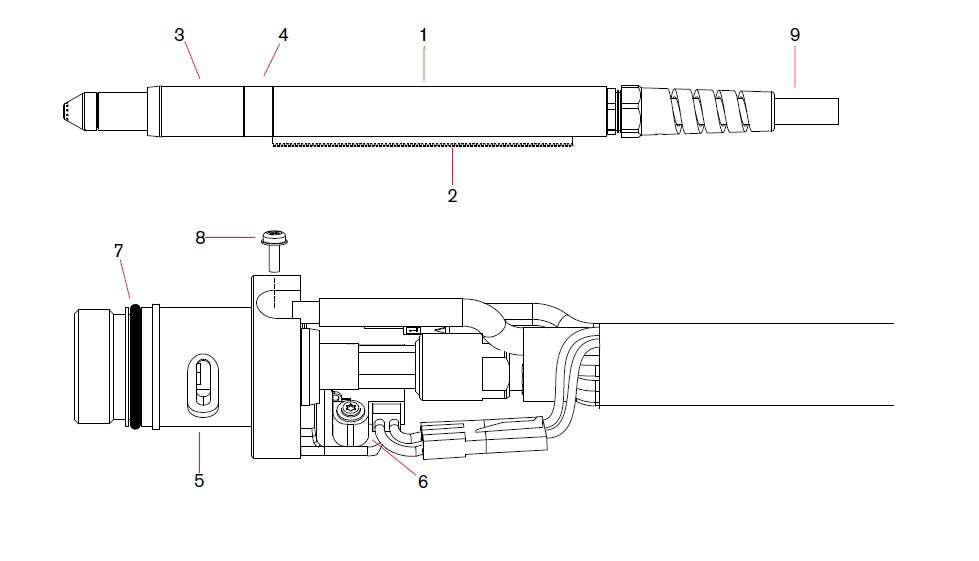

Duramax MRT Retrofit Machine Torch torch assembly and replacement parts from the Hypertherm parts catalog. Match the item number on the breakdown to the parts list before ordering.
As an Amazon Associate, I earn from qualifying purchases. Buy buttons only appear where a WSP-approved Amazon registry match exists.
| Item # | Part # | Description | Qty | Buy |
|---|---|---|---|---|
| 2 | 027889 |
Hypertherm part 027889
|
Verification pending | |
| 3 | 058519 |
Hypertherm O-Ring 058519
|
View on Amazon | |
| 4 | 128639 |
Hypertherm Switch/Sensor 128639
|
Verification pending | |
| 5 | 075571 |
Hypertherm Switch/Sensor 075571
|
Verification pending | |
| 6 | 128521 |
Hypertherm Kit 128521
|
Verification pending | |
| 7 | 128643 |
Hypertherm Kit 128643
|
Verification pending | |
| 8 | 075618 |
Hypertherm part 075618
|
Verification pending | |
| Torch | 128645 |
Hypertherm Torch Assembly 128645
|
Verification pending | |
| 9 | 128710 |
Hypertherm Mounting Sleeve 128710
|
Verification pending | |
| 12 | 128926 |
Hypertherm Kit 128926
|
Verification pending |

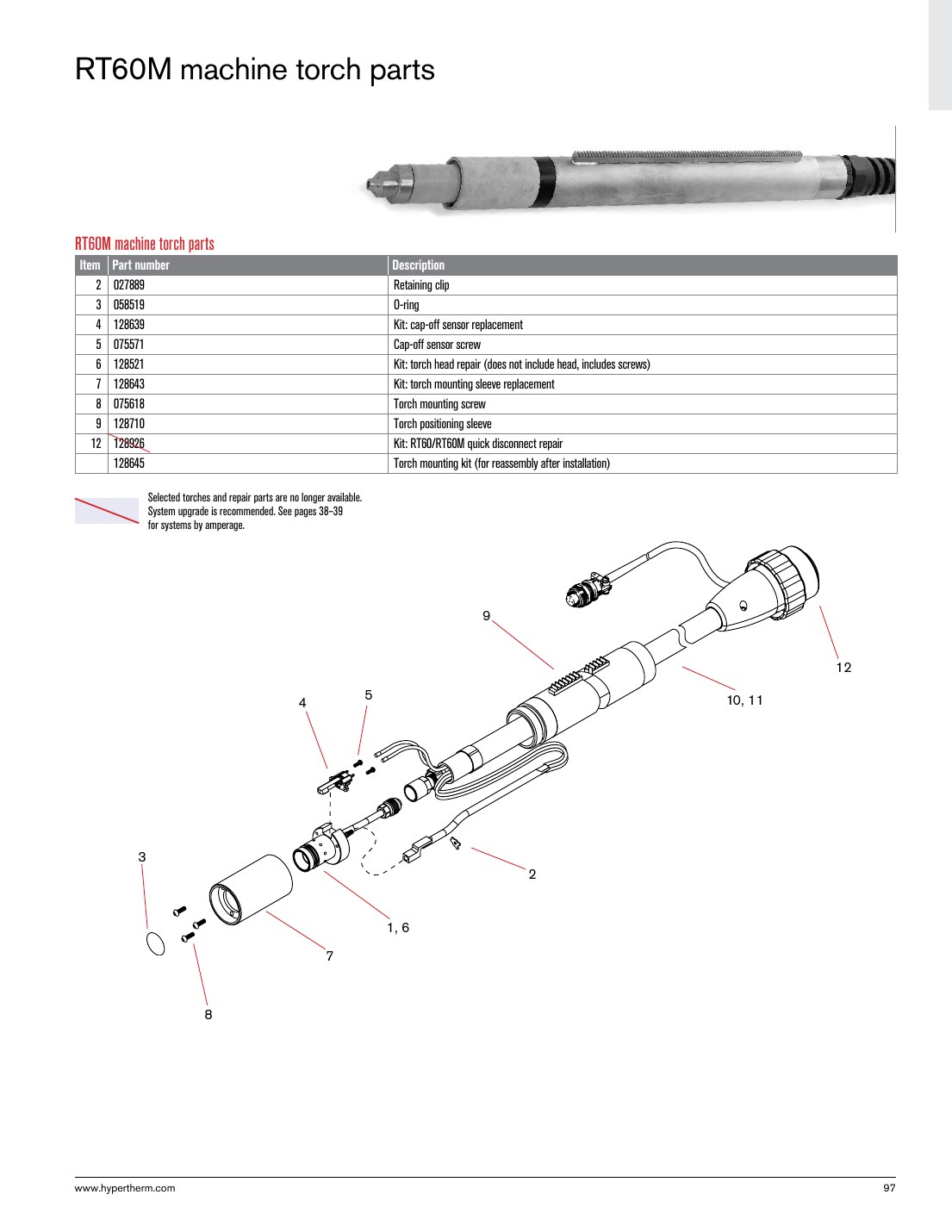

Source: 2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems, page 99. Catalog page images are used when a cleaned diagram asset is not already available.
Hypertherm plasma support

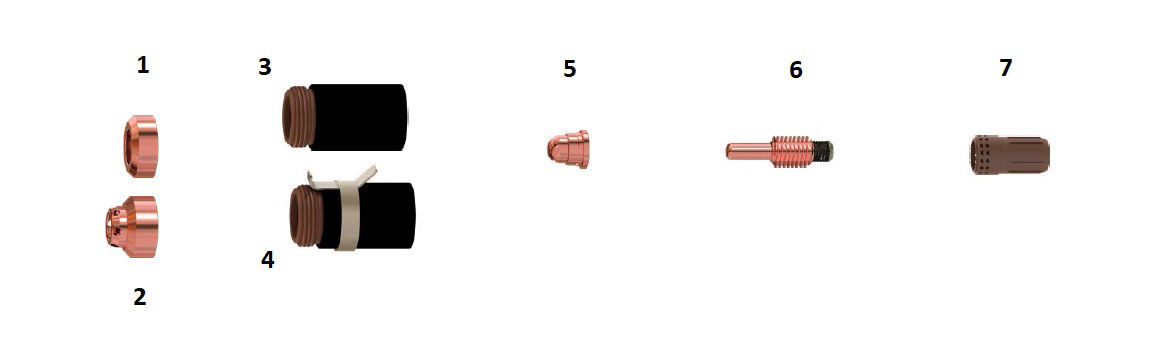

Duramax MRT retrofit machine torch consumables for the Powermax 600 mechanized path. Match the Duramax mechanized, FineCut, unshielded, or gouging stack before ordering.
As an Amazon Associate, I earn from qualifying purchases. Buy buttons only appear where a WSP-approved Amazon registry match exists.
| Item # | Part # | Description | Qty | Buy |
|---|---|---|---|---|
| 1 | 220931 |
Deflector
|
View on Amazon | |
| 2 | 220948 |
Deflector, Ohmic
|
View on Amazon | |
| 3 | 220854 |
Retaining cap
|
View on Amazon | |
| 4 | 220953 |
Retaining cap, Ohmic
|
View on Amazon | |
| 5 | 220842 |
Electrode (pk of 5)
|
pk of 5 | View on Amazon |
| 5 | 220857 |
Swirl Ring
|
View on Amazon | |
| 5 | 220930 |
35-40 Amp Nozzle (pk of 5)
|
pk of 5 | View on Amazon |
Source: Powermax 600 structured retrofit consumable extraction, page 601. Catalog page images are used when a cleaned diagram asset is not already available.
Hypertherm plasma support

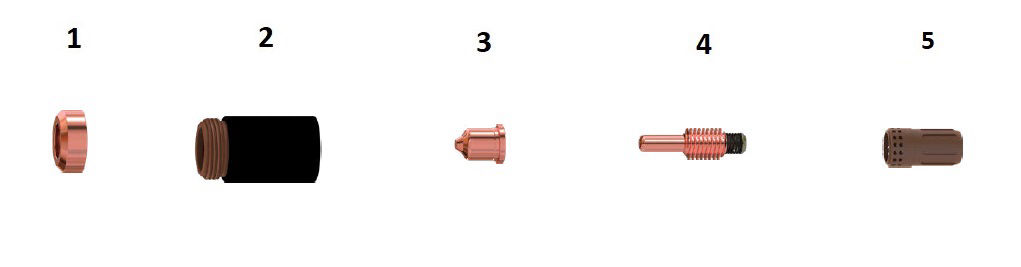

Duramax MRT retrofit machine torch consumables for the Powermax 600 mechanized path. Match the Duramax mechanized, FineCut, unshielded, or gouging stack before ordering.
As an Amazon Associate, I earn from qualifying purchases. Buy buttons only appear where a WSP-approved Amazon registry match exists.
| Item # | Part # | Description | Qty | Buy |
|---|---|---|---|---|
| 1 | 420480 |
Deflector
|
View on Amazon | |
| 2 | 220854 |
Retaining cap
|
View on Amazon | |
| 3 | 220797 |
Nozzle (pk of 5)
|
pk of 5 | View on Amazon |
| 4 | 220842 |
Electrode (pk of 5)
|
pk of 5 | View on Amazon |
| 5 | 220857 |
Swirl Ring
|
View on Amazon |
Source: Powermax 600 structured retrofit consumable extraction, page 601. Catalog page images are used when a cleaned diagram asset is not already available.

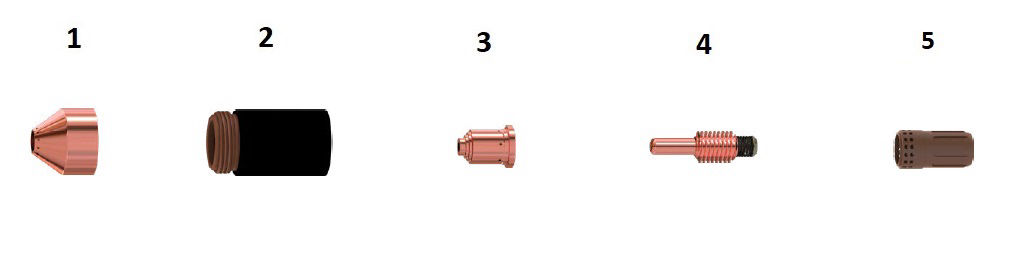

Hypertherm plasma support
Duramax MRT retrofit machine torch consumables for the Powermax 600 mechanized path. Match the Duramax mechanized, FineCut, unshielded, or gouging stack before ordering.
As an Amazon Associate, I earn from qualifying purchases. Buy buttons only appear where a WSP-approved Amazon registry match exists.
| Item # | Part # | Description | Qty | Buy |
|---|---|---|---|---|
| 1 | 220798 |
Shield/Deflector
|
View on Amazon | |
| 2 | 220854 |
Retaining cap
|
View on Amazon | |
| 3 | 220797 |
Gouging Nozzle (pk of 5)
|
pk of 5 | View on Amazon |
| 4 | 220842 |
Plasma Electrode (pk of 5)
|
pk of 5 | View on Amazon |
| 5 | 220857 |
Swirl ring
|
View on Amazon |
Source: Powermax 600 structured retrofit consumable extraction, page 601. Catalog page images are used when a cleaned diagram asset is not already available.
Hypertherm plasma support

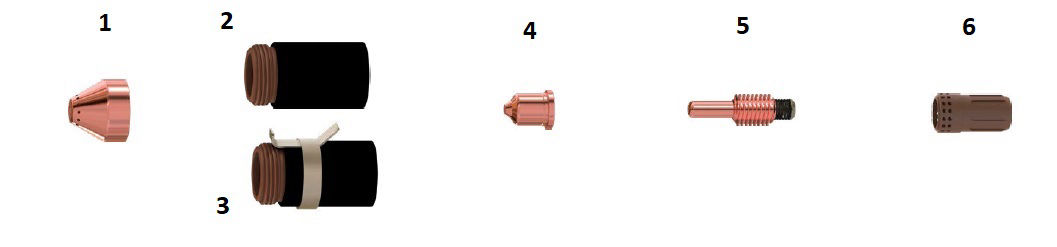

Duramax MRT retrofit machine torch consumables for the Powermax 600 mechanized path. Match the Duramax mechanized, FineCut, unshielded, or gouging stack before ordering.
As an Amazon Associate, I earn from qualifying purchases. Buy buttons only appear where a WSP-approved Amazon registry match exists.
| Item # | Part # | Description | Qty | Buy |
|---|---|---|---|---|
| 1 | 220817 |
Shield/Deflector
|
View on Amazon | |
| 2 | 220854 |
Retaining cap, Standard
|
View on Amazon | |
| 3 | 220953 |
Retaining cap, Ohmic
|
View on Amazon | |
| 4 | 220941 |
40 Amp Shielded Nozzle (pk of 5)
|
pk of 5 | View on Amazon |
| 5 | 220842 |
40 Amp Electrode (pk of 5)
|
pk of 5 | View on Amazon |
| 5 | 220857 |
Swirl Ring
|
View on Amazon |
Source: Powermax 600 structured retrofit consumable extraction, page 601. Catalog page images are used when a cleaned diagram asset is not already available.

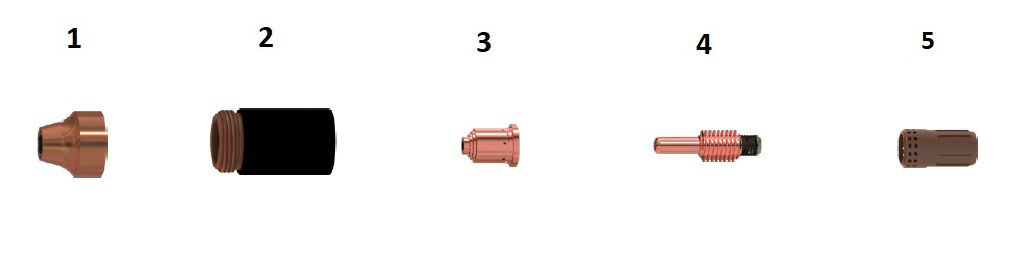

Hypertherm plasma support
Duramax MRT retrofit machine torch consumables for the Powermax 600 mechanized path. Match the Duramax mechanized, FineCut, unshielded, or gouging stack before ordering.
As an Amazon Associate, I earn from qualifying purchases. Buy buttons only appear where a WSP-approved Amazon registry match exists.
| Item # | Part # | Description | Qty | Buy |
|---|---|---|---|---|
| 1 | 220955 |
Deflector
|
View on Amazon | |
| 2 | 220854 |
Retaining cap
|
View on Amazon | |
| 3 | 220941 |
35 Amp Nozzle (pk of 5)
|
pk of 5 | View on Amazon |
| 4 | 220842 |
35 Amp Electrode (pk of 5)
|
pk of 5 | View on Amazon |
| 4 | 220857 |
Swirl Ring
|
View on Amazon |
Source: Powermax 600 structured retrofit consumable extraction, page 601. Catalog page images are used when a cleaned diagram asset is not already available.
