Hypertherm SmartSYNC 90 Degree Robotic Torch Parts Breakdown

SmartSYNC 90 Degree Robotic Torch torch assembly and replacement parts from the Hypertherm parts catalog. Match the item number on the breakdown to the parts list before ordering.

Hypertherm's current SmartSYNC reference lists this torch family for Powermax45 SYNC, Powermax65 SYNC, Powermax85 SYNC, and Powermax105 SYNC. Confirm the installed torch style and lead length before ordering. Verify the SmartSYNC torch table on Hypertherm

2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems Catalog page 27

As an Amazon Associate, I earn from qualifying purchases. Buy buttons only appear where a WSP-approved Amazon registry match exists.

Item #	Part #	Description	Buy
Torch	`059733`	Hypertherm Torch Assembly 059733 torch assembly SmartSYNC 90 robotic torch parts catalog verified Powermax45 SYNC Powermax65 SYNC	Verification pending
Torch	`059734`	Hypertherm Torch Assembly 059734 torch assembly SmartSYNC 90 robotic torch parts catalog verified Powermax45 SYNC Powermax65 SYNC	Verification pending
Torch	`059735`	Hypertherm Torch Assembly 059735 torch assembly SmartSYNC 90 robotic torch parts catalog verified Powermax45 SYNC Powermax65 SYNC	Verification pending
1	`428896`	Hypertherm Kit 428896 kit SmartSYNC 90 robotic torch parts catalog verified Powermax45 SYNC Powermax65 SYNC	Verification pending
2	`528066`	Hypertherm Kit 528066 kit SmartSYNC 90 robotic torch parts catalog verified Powermax45 SYNC Powermax65 SYNC	Verification pending
3	`428950`	Hypertherm O-Ring 428950 o-ring SmartSYNC 90 robotic torch parts catalog verified Powermax45 SYNC Powermax65 SYNC	Verification pending
4	`428860`	Hypertherm Torch Handle 428860 torch handle SmartSYNC 90 robotic torch parts catalog verified Powermax45 SYNC Powermax65 SYNC	Verification pending
5	`428867`	Hypertherm Switch/Sensor 428867 switch/sensor SmartSYNC 90 robotic torch parts catalog verified Powermax45 SYNC Powermax65 SYNC	Verification pending
6	`428870`	Hypertherm Kit 428870 kit SmartSYNC 90 robotic torch parts catalog verified Powermax45 SYNC Powermax65 SYNC	Verification pending
7	`428900`	Hypertherm Torch Lead 428900 torch lead SmartSYNC 90 robotic torch parts catalog verified Powermax45 SYNC Powermax65 SYNC	Verification pending
7	`428901`	Hypertherm Torch Lead 428901 torch lead SmartSYNC 90 robotic torch parts catalog verified Powermax45 SYNC Powermax65 SYNC	Verification pending
7	`428902`	Hypertherm Torch Lead 428902 torch lead SmartSYNC 90 robotic torch parts catalog verified Powermax45 SYNC Powermax65 SYNC	Verification pending
7	`428903`	Hypertherm Torch Lead 428903 torch lead SmartSYNC 90 robotic torch parts catalog verified Powermax45 SYNC Powermax65 SYNC	Verification pending
7	`428904`	Hypertherm Torch Lead 428904 torch lead SmartSYNC 90 robotic torch parts catalog verified Powermax45 SYNC Powermax65 SYNC	Verification pending
8	`428863`	Hypertherm Torch Lead 428863 torch lead SmartSYNC 90 robotic torch parts catalog verified Powermax45 SYNC Powermax65 SYNC	Verification pending
9	`428148`	Hypertherm Kit 428148 kit SmartSYNC 90 robotic torch parts catalog verified Powermax45 SYNC Powermax65 SYNC	Verification pending
10	`428877`	Hypertherm Kit 428877 kit SmartSYNC 90 robotic torch parts catalog verified Powermax45 SYNC Powermax65 SYNC	Verification pending
11	`428899`	Hypertherm Kit 428899 kit SmartSYNC 90 robotic torch parts catalog verified Powermax45 SYNC Powermax65 SYNC	Verification pending

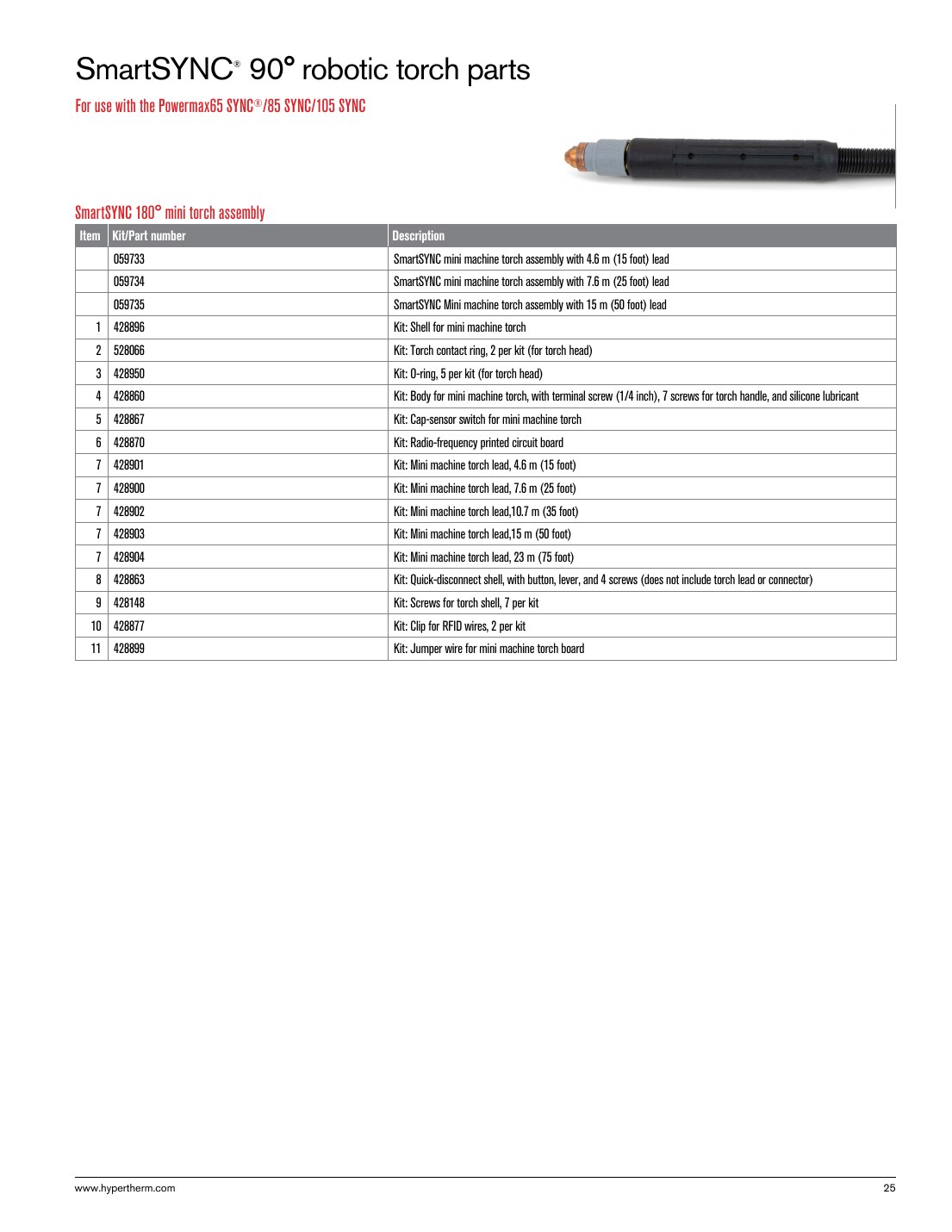

Source: 2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems, page 27. Catalog page images are used when a cleaned diagram asset is not already available.
