Powermax1000
Catalog-linked machine/system context for this torch or consumable family.
Open machine supportHypertherm Torch Support
Hypertherm T60 Hand Torch
T60 Hand Torch lookup for Powermax1000, Powermax1250, Powermax800, Powermax900. Use this page to identify Torch Assembly, Kit, Switch/Sensor, Torch Lead, Shield/Deflector, confirm the machine context, and move into approved buy options where available.
Consumable lookup
Powermax and Legacy
Catalog backed
Compatible Machines
Powermax1250
Catalog-linked machine/system context for this torch or consumable family.
Open machine supportPowermax800
Catalog-linked machine/system context for this torch or consumable family.
Open machine supportPowermax900
Catalog-linked machine/system context for this torch or consumable family.
Open machine supportMost Common Replacement Parts
Swirl ring: 120925
Hypertherm Swirl ring 120925. Buy option pending verification.
View tableElectrode: 120926
Hypertherm Electrode 120926. Buy option pending verification.
View tableRetaining cap: 120928
Hypertherm Retaining cap 120928. Buy option pending verification.
View tableShield/deflector: 120977
Hypertherm Shield/deflector 120977. Buy option pending verification.
View tableNozzle: 220059
Hypertherm Nozzle 220059. Buy option pending verification.
View tableTorch Assembly: 002244
Hypertherm Torch Assembly 002244. Approved buy option available in the table below.
View tableSwitch/Sensor: 128642
Hypertherm Switch/Sensor 128642. Approved buy option available in the table below.
View tableTorch Assembly: 228916
Hypertherm Torch Assembly 228916. Approved buy option available in the table below.
View tableConsumable Types
Torch Assembly
Verify machine, torch style, amperage, and process before ordering.
View matching partsKit
Verify machine, torch style, amperage, and process before ordering.
View matching partsSwitch/Sensor
Verify machine, torch style, amperage, and process before ordering.
View matching partsTorch Lead
Verify machine, torch style, amperage, and process before ordering.
View matching partsShield/Deflector
Verify machine, torch style, amperage, and process before ordering.
View matching partsTorch Body
Verify machine, torch style, amperage, and process before ordering.
View matching partsTorch Handle
Verify machine, torch style, amperage, and process before ordering.
View matching partsShield/deflector
Verify machine, torch style, amperage, and process before ordering.
View matching partsCatalog Parts
Buy buttons only appear where an existing WSP Amazon registry link is approved. No unverified Amazon links are shown.
As an Amazon Associate, I earn from qualifying purchases.
| Part number | Description | Type | Machine/System | Status | Buy |
|---|---|---|---|---|---|
| 002244 | Hypertherm Torch Assembly 002244 | Torch Assembly | Powermax1000 | Catalog verified | View on Amazon |
| 002244 | Hypertherm Torch Assembly 002244 | Torch Assembly | Powermax1250 | Catalog verified | View on Amazon |
| 128642 | Hypertherm Switch/Sensor 128642 | Switch/Sensor | Powermax1000 | Catalog verified | View on Amazon |
| 128642 | Hypertherm Switch/Sensor 128642 | Switch/Sensor | Powermax1250 | Catalog verified | View on Amazon |
| 075571 | Hypertherm Switch/Sensor 075571 | Switch/Sensor | Powermax1000 | Catalog verified | Verification pending |
| 075571 | Hypertherm Switch/Sensor 075571 | Switch/Sensor | Powermax1250 | Catalog verified | Verification pending |
| 075714 | Hypertherm Torch Handle 075714 | Torch Handle | Powermax1000 | Catalog verified | Verification pending |
| 075714 | Hypertherm Torch Handle 075714 | Torch Handle | Powermax1250 | Catalog verified | Verification pending |
| 083171 | Hypertherm Torch Assembly 083171 | Torch Assembly | Powermax1000, Powermax800, Powermax900 | Catalog verified | Verification pending |
| 083172 | Hypertherm Torch Assembly 083172 | Torch Assembly | Powermax1000, Powermax800, Powermax900 | Catalog verified | Verification pending |
| 083208 | Hypertherm Torch Assembly 083208 | Torch Assembly | Powermax1000, Powermax800, Powermax900 | Catalog verified | Verification pending |
| 083244 | Hypertherm Torch Assembly 083244 | Torch Assembly | Powermax1000, Powermax800, Powermax900 | Catalog verified | Verification pending |
| 085061 | Hypertherm Torch Assembly 085061 | Torch Assembly | Powermax1000, Powermax1250 | Catalog verified | Verification pending |
| 085064 | Hypertherm Torch Assembly 085064 | Torch Assembly | Powermax1000, Powermax1250 | Catalog verified | Verification pending |
| 085065 | Hypertherm Torch Assembly 085065 | Torch Assembly | Powermax1000, Powermax1250 | Catalog verified | Verification pending |
| 087047 | Hypertherm Torch Assembly 087047 | Torch Assembly | Powermax1000, Powermax1250 | Catalog verified | Verification pending |
| 087082 | Hypertherm Torch Assembly 087082 | Torch Assembly | Powermax1000, Powermax1250 | Catalog verified | Verification pending |
| 120925 | Hypertherm Swirl ring 120925 | Swirl ring | Powermax1000 | Catalog verified | Verification pending |
| 120926 | Hypertherm Electrode 120926 | Electrode | Powermax1000 | Catalog verified | Verification pending |
| 120928 | Hypertherm Retaining cap 120928 | Retaining cap | Powermax1000 | Catalog verified | Verification pending |
| 120977 | Hypertherm Shield/deflector 120977 | Shield/deflector | Powermax1000 | Catalog verified | Verification pending |
| 123106 | Hypertherm Torch Lead 123106 | Torch Lead | Powermax1250 | Catalog verified | Verification pending |
| 123645 | Hypertherm Torch Lead 123645 | Torch Lead | Powermax1000 | Catalog verified | Verification pending |
| 128145 | Hypertherm Torch Lead 128145 | Torch Lead | Powermax1250 | Catalog verified | Verification pending |
| 128521 | Hypertherm Kit 128521 | Kit | Powermax1000 | Catalog verified | Verification pending |
| 128521 | Hypertherm Kit 128521 | Kit | Powermax1250 | Catalog verified | Verification pending |
| 128564 | Hypertherm Torch Body 128564 | Torch Body | Powermax1000 | Catalog verified | Verification pending |
| 128564 | Hypertherm Torch Body 128564 | Torch Body | Powermax1250 | Catalog verified | Verification pending |
| 128638 | Hypertherm Kit 128638 | Kit | Powermax1000 | Catalog verified | Verification pending |
| 128638 | Hypertherm Kit 128638 | Kit | Powermax1250 | Catalog verified | Verification pending |
| 128639 | Hypertherm Switch/Sensor 128639 | Switch/Sensor | Powermax1000 | Catalog verified | Verification pending |
| 128639 | Hypertherm Switch/Sensor 128639 | Switch/Sensor | Powermax1250 | Catalog verified | Verification pending |
| 128640 | Hypertherm Torch Body 128640 | Torch Body | Powermax1000 | Catalog verified | Verification pending |
| 128640 | Hypertherm Torch Body 128640 | Torch Body | Powermax1250 | Catalog verified | Verification pending |
| 128643 | Hypertherm Kit 128643 | Kit | Powermax1000 | Catalog verified | Verification pending |
| 128643 | Hypertherm Kit 128643 | Kit | Powermax1250 | Catalog verified | Verification pending |
| 128644 | Hypertherm Torch Handle 128644 | Torch Handle | Powermax1000 | Catalog verified | Verification pending |
| 128644 | Hypertherm Torch Handle 128644 | Torch Handle | Powermax1250 | Catalog verified | Verification pending |
| 128645 | Hypertherm Kit 128645 | Kit | Powermax1000 | Catalog verified | Verification pending |
| 128645 | Hypertherm Kit 128645 | Kit | Powermax1250 | Catalog verified | Verification pending |
| 128710 | Hypertherm Kit 128710 | Kit | Powermax1000 | Catalog verified | Verification pending |
| 128710 | Hypertherm Kit 128710 | Kit | Powermax1250 | Catalog verified | Verification pending |
| 128717 | Hypertherm Torch Lead 128717 | Torch Lead | Powermax1000 | Catalog verified | Verification pending |
| 128718 | Hypertherm Torch Lead 128718 | Torch Lead | Powermax1250 | Catalog verified | Verification pending |
| 220059 | Hypertherm Nozzle 220059 | Nozzle | Powermax1000 | Catalog verified | Verification pending |
| 027254 | Hypertherm part 027254 | Unknown | Powermax1000 | Review | View on Amazon |
| 027254 | Hypertherm part 027254 | Unknown | Powermax1250 | Review | View on Amazon |
| 128650 | Hypertherm part 128650 | Unknown | Powermax1000 | Review | View on Amazon |
| 128650 | Hypertherm part 128650 | Unknown | Powermax1250 | Review | View on Amazon |
| 128651 | Hypertherm part 128651 | Unknown | Powermax1000 | Review | View on Amazon |
| 128651 | Hypertherm part 128651 | Unknown | Powermax1250 | Review | View on Amazon |
| 228916 | Hypertherm Torch Assembly 228916 | Torch Assembly | Powermax1000, Powermax800, Powermax900 | Review | View on Amazon |
| 228917 | Hypertherm Torch Assembly 228917 | Torch Assembly | Powermax1000, Powermax800, Powermax900 | Review | View on Amazon |
| 228920 | Hypertherm Torch Assembly 228920 | Torch Assembly | Powermax1000, Powermax800, Powermax900 | Review | View on Amazon |
| 027889 | Hypertherm part 027889 | Unknown | Powermax1000 | Review | Verification pending |
| 027889 | Hypertherm part 027889 | Unknown | Powermax1250 | Review | Verification pending |
| 083066 | Hypertherm Torch Assembly 083066 | Torch Assembly | Powermax1000, Powermax800, Powermax900 | Review | Verification pending |
| 083067 | Hypertherm Torch Assembly 083067 | Torch Assembly | Powermax1000, Powermax800, Powermax900 | Review | Verification pending |
| 083068 | Hypertherm Torch Assembly 083068 | Torch Assembly | Powermax1000, Powermax800, Powermax900 | Review | Verification pending |
| 083069 | Hypertherm Torch Assembly 083069 | Torch Assembly | Powermax1000, Powermax800, Powermax900 | Review | Verification pending |
| 083070 | Hypertherm Torch Assembly 083070 | Torch Assembly | Powermax1000, Powermax800, Powermax900 | Review | Verification pending |
| 083071 | Hypertherm Torch Assembly 083071 | Torch Assembly | Powermax1000, Powermax800, Powermax900 | Review | Verification pending |
| 083072 | Hypertherm Torch Assembly 083072 | Torch Assembly | Powermax1000, Powermax800, Powermax900 | Review | Verification pending |
| 083073 | Hypertherm Torch Assembly 083073 | Torch Assembly | Powermax1000, Powermax800, Powermax900 | Review | Verification pending |
| 083074 | Hypertherm Torch Assembly 083074 | Torch Assembly | Powermax1000, Powermax800, Powermax900 | Review | Verification pending |
| 083075 | Hypertherm Torch Assembly 083075 | Torch Assembly | Powermax1000, Powermax800, Powermax900 | Review | Verification pending |
| 083127 | Hypertherm Torch Assembly 083127 | Torch Assembly | Powermax1000, Powermax800, Powermax900 | Review | Verification pending |
| 083128 | Hypertherm Torch Assembly 083128 | Torch Assembly | Powermax1000, Powermax800, Powermax900 | Review | Verification pending |
| 083129 | Hypertherm Torch Assembly 083129 | Torch Assembly | Powermax1000, Powermax800, Powermax900 | Review | Verification pending |
| 083130 | Hypertherm Torch Assembly 083130 | Torch Assembly | Powermax1000, Powermax800, Powermax900 | Review | Verification pending |
| 083131 | Hypertherm Torch Assembly 083131 | Torch Assembly | Powermax1000, Powermax800, Powermax900 | Review | Verification pending |
| 083133 | Hypertherm Torch Assembly 083133 | Torch Assembly | Powermax1000, Powermax800, Powermax900 | Review | Verification pending |
Related Hypertherm Lookup
Hypertherm Plasma Torch Support
Brand-level torch family routing page.
Open torchesHypertherm Machine Support
Start from the machine if the torch is uncertain.
Open machinesFind My Part
Search by machine, torch, consumable, cartridge, or part number.
Search partsNeed More Help?
Replace First
For plasma cut-quality issues, check the cartridge or electrode first, then nozzle/shield condition, swirl ring or gas path, and air quality.
Fitment Check
Confirm the machine model, torch style, amperage, and hand versus mechanized setup before ordering.
Troubleshooting

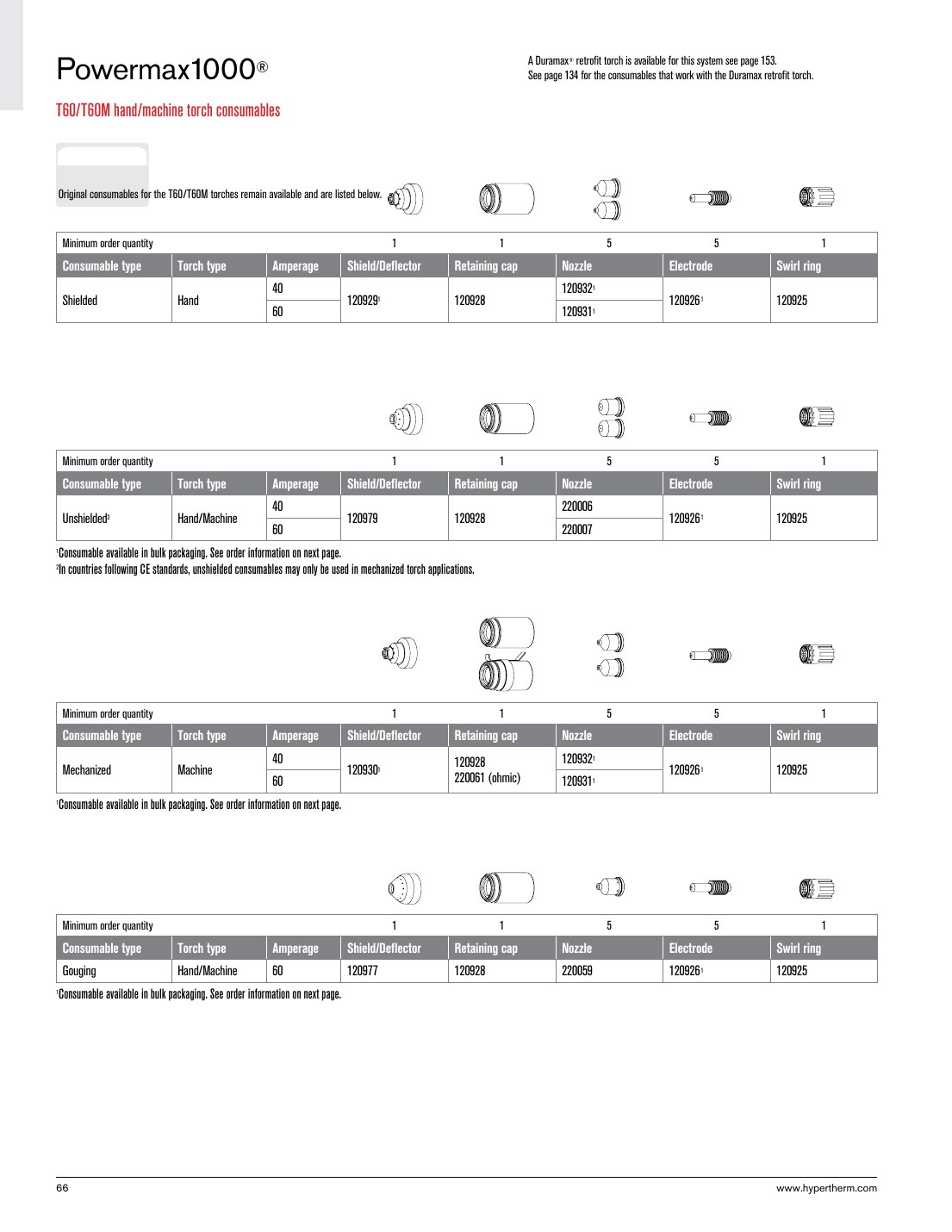

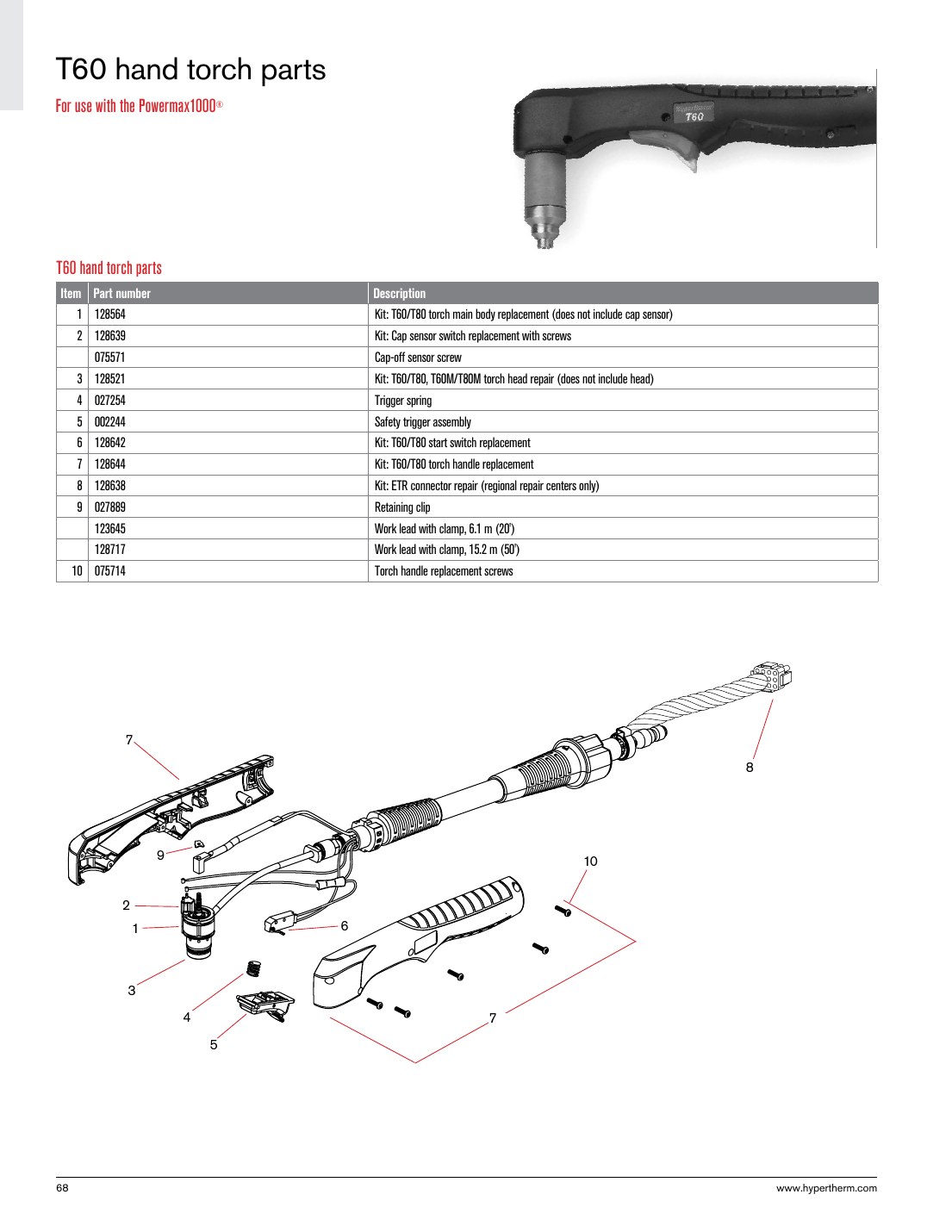

Source: 2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems (page 68, page 70, page 71, page 74, page 75, page 102, page 103). Parsed into the WSP compatibility graph from uploaded manufacturer PDFs.
