TIG torches and consumables
Caliber TIG torch consumables
Diagram / Consumables
Parts List
No exact part number found on these pages. Search the full Lincoln catalog.
| Item # | Part # | Description | Buy / Search |
|---|---|---|---|
| 1 | KP4745-L | Long back cap; catalog package quantity 2 | Search Amazon |
| 1 | KP4745-L-B10 | Long back cap; catalog package quantity 10 | Search Amazon |
| 1 | KP4746-L | Long back cap; catalog package quantity 2 | Search Amazon |
| 1 | KP4746-L-B10 | Long back cap; catalog package quantity 10 | Search Amazon |
| 2 | KP4745-M | Medium back cap; catalog package quantity 2 | Search Amazon |
| 2 | KP4745-M-B10 | Medium back cap; catalog package quantity 10 | Search Amazon |
| 2 | KP4746-M | Medium back cap; catalog package quantity 2 | Search Amazon |
| 2 | KP4746-M-B10 | Medium back cap; catalog package quantity 10 | Search Amazon |
| 3 | KP4745-S | Short back cap; catalog package quantity 2 | Search Amazon |
| 3 | KP4745-S-B10 | Short back cap; catalog package quantity 10 | Search Amazon |
| 3 | KP4746-S | Short back cap; catalog package quantity 2 | Search Amazon |
| 3 | KP4746-S-B10 | Short back cap; catalog package quantity 10 | Search Amazon |
| - | KP4747-ST | Insulator; catalog package quantity 2 Confirm the standard or gas-lens setup against the source chart. | Search Amazon |
| - | KP4747-ST-B10 | Insulator; catalog package quantity 10 Confirm the standard or gas-lens setup against the source chart. | Search Amazon |
| - | KP4748-ST | Insulator; catalog package quantity 2 Confirm the standard or gas-lens setup against the source chart. | Search Amazon |
| - | KP4748-ST-B10 | Insulator; catalog package quantity 10 Confirm the standard or gas-lens setup against the source chart. | Search Amazon |
As an Amazon Associate, Weld Support Parts earns from qualifying purchases. Search links do not confirm stock or an exact product match.
Original catalog and ordering notes
Source: Lincoln Electric BK291, 2024 Expendable Parts Guide. This is a dated catalog reference, not a current availability list. Check machine code, torch version, dimensions and package quantity before ordering.

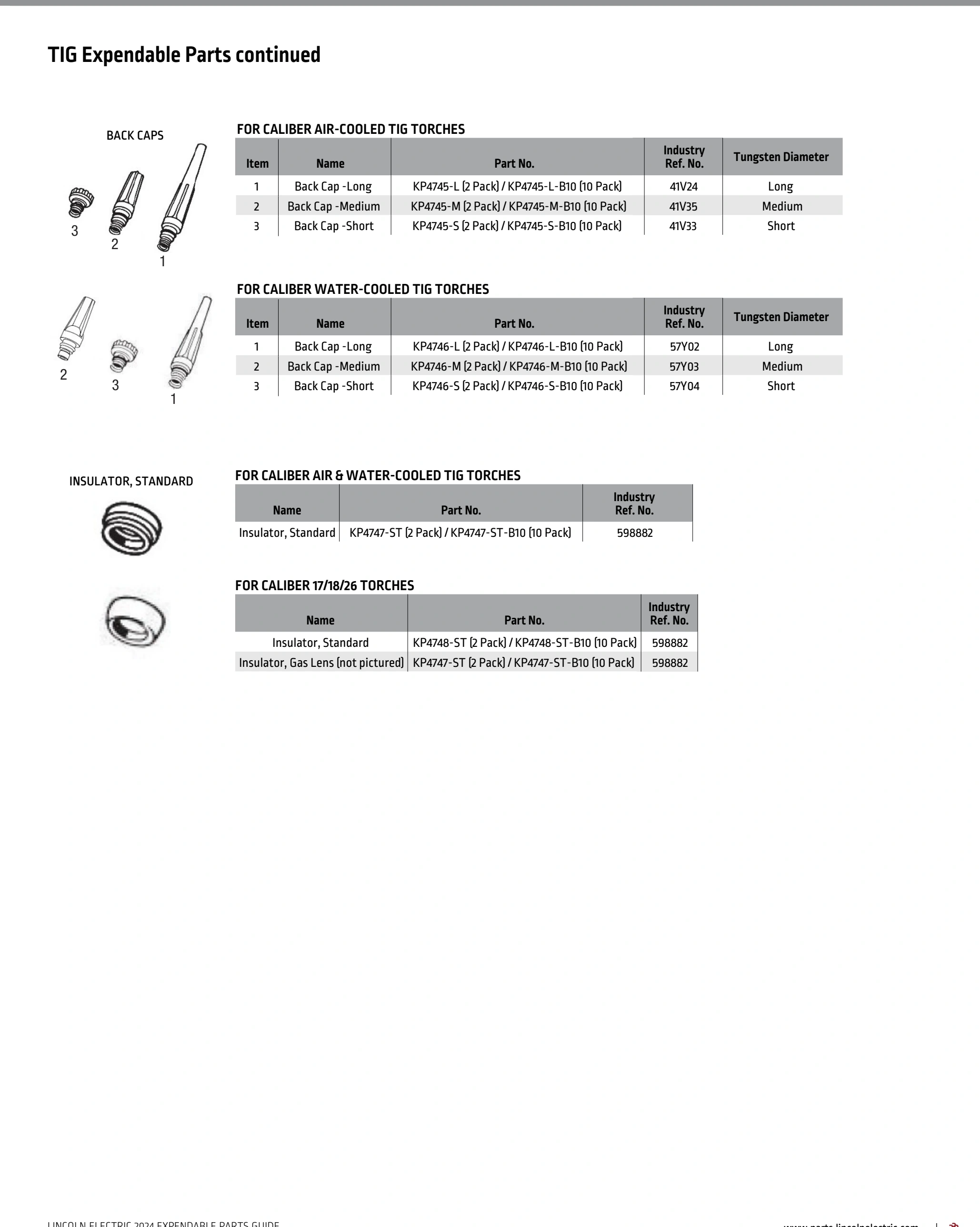

Catalog page 39
