TIG torches and consumables
Lincoln TIG collets, bodies, cups and back caps
Diagram / Consumables
Parts List
No exact part number found on these pages. Search the full Lincoln catalog.
| Part # | Description | Buy / Search |
|---|---|---|
| KP2016-1B1 | Alumina Nozzle; nozzle orifice: 5/8 (16) | Search Amazon |
| KP2016-2B1 | Alumina Nozzle; nozzle orifice: 1/2 (12.5) | Search Amazon |
| KP2016-3B1 | Alumina Nozzle; nozzle orifice: 7/16 (11) | Search Amazon |
| KP2016-4B1 | Alumina Nozzle; nozzle orifice: 3/8 (10) | Search Amazon |
| KP2016-5B1 | Alumina Nozzle; nozzle orifice: 5/16 (8) | Search Amazon |
| KP2016-6B1 | Alumina Nozzle; nozzle orifice: 1/4 (6) | Search Amazon |
| KP2017-1B1 | Alumina Nozzle; nozzle orifice: 1/4 (6) | Search Amazon |
| KP2017-2B1 | Alumina Nozzle; nozzle orifice: 5/16 (8) | Search Amazon |
| KP2017-3B1 | Alumina Nozzle; nozzle orifice: 3/8 (10) | Search Amazon |
| KP2017-4B1 | Alumina Nozzle; nozzle orifice: 7/16 (11) | Search Amazon |
| KP2017-5B1 | Alumina Nozzle; nozzle orifice: 1/2 (12.5) | Search Amazon |
| KP2017-6B1 | Alumina Nozzle; nozzle orifice: 5/8 (16) | Search Amazon |
| KP2018-1B1 | Alumina Gas Lens Nozzle2; nozzle orifice: 1/2 (12.5) Requires KP2037-3B1 gas lens insulator; see source footnote. | Search Amazon |
| KP2018-2B1 | Alumina Gas Lens Nozzle2; nozzle orifice: 7/16 (11) Requires KP2037-3B1 gas lens insulator; see source footnote. | Search Amazon |
| KP2018-3B1 | Alumina Gas Lens Nozzle2; nozzle orifice: 3/8 (10) Requires KP2037-3B1 gas lens insulator; see source footnote. | Search Amazon |
| KP2018-4B1 | Alumina Gas Lens Nozzle2; nozzle orifice: 5/16 (8) Requires KP2037-3B1 gas lens insulator; see source footnote. | Search Amazon |
| KP2018-5B1 | Alumina Gas Lens Nozzle2; nozzle orifice: 1/4 (6) Requires KP2037-3B1 gas lens insulator; see source footnote. | Search Amazon |
| KP2018-6B1 | Alumina Gas Lens Nozzle2; nozzle orifice: 11/16 (17) Requires KP2037-3B1 gas lens insulator; see source footnote. | Search Amazon |
| KP2019-1B1 | Alumina Gas Lens Nozzle; nozzle orifice: 1/4 (6) | Search Amazon |
| KP2019-2B1 | Alumina Gas Lens Nozzle; nozzle orifice: 5/16 (8) | Search Amazon |
| KP2019-3B1 | Alumina Gas Lens Nozzle; nozzle orifice: 3/8 (10) | Search Amazon |
| KP2019-4B1 | Alumina Gas Lens Nozzle; nozzle orifice: 7/16 (11) | Search Amazon |
| KP2029-1B1 | Collet; tungsten diameter: 0.020 (0.5) | Search Amazon |
| KP2029-2B1 | Collet; tungsten diameter: 0.040 (1.0) | Search Amazon |
| KP2029-3B1 | Collet; tungsten diameter: 1/16 (1.6) | Search Amazon |
| KP2029-4B1 | Collet; tungsten diameter: 3/32 (2.4) | Search Amazon |
| KP2029-5B1 | Collet; tungsten diameter: 1/8 (3.2) | Search Amazon |
| KP2030-1B1 | Collet; tungsten diameter: 0.020 (0.5) | Search Amazon |
| KP2030-2B1 | Collet; tungsten diameter: 0.040 (1.0) | Search Amazon |
| KP2030-3B1 | Collet; tungsten diameter: 1/16 (1.6) | Search Amazon |
| KP2030-4B1 | Collet; tungsten diameter: 3/32 (2.4) | Search Amazon |
| KP2030-5B1 | Collet; tungsten diameter: 1/8 (3.2) | Search Amazon |
| KP2030-6B1 | Collet; tungsten diameter: 5/32 (4.0) | Search Amazon |
| KP2031-1B1 | Collet Body; tungsten diameter: 0.020 (0.5) | Search Amazon |
| KP2031-2B1 | Collet Body; tungsten diameter: 0.040 (1.0) | Search Amazon |
| KP2031-3B1 | Collet Body; tungsten diameter: 1/16 (1.6) | Search Amazon |
| KP2031-4B1 | Collet Body; tungsten diameter: 3/32 (2.4) | Search Amazon |
| KP2031-5B1 | Collet Body; tungsten diameter: 1/8 (3.2) | Search Amazon |
| KP2032-1B1 | Collet Body; tungsten diameter: 0.020 (0.5) | Search Amazon |
| KP2032-2B1 | Collet Body; tungsten diameter: 0.040 (1.0) | Search Amazon |
| KP2032-3B1 | Collet Body; tungsten diameter: 1/16 (1.6) | Search Amazon |
| KP2032-4B1 | Collet Body; tungsten diameter: 3/32 (2.4) | Search Amazon |
| KP2032-5B1 | Collet Body; tungsten diameter: 1/8 (3.2) | Search Amazon |
| KP2032-6B1 | Collet Body; tungsten diameter: 5/32 (4.0) | Search Amazon |
| KP2033-1B1 | Gas Lens Collet Body; tungsten diameter: 0.020 (0.5) | Search Amazon |
| KP2033-2B1 | Gas Lens Collet Body; tungsten diameter: 0.040 (1.0) | Search Amazon |
| KP2033-3B1 | Gas Lens Collet Body; tungsten diameter: 1/16 (1.6) | Search Amazon |
| KP2033-4B1 | Gas Lens Collet Body; tungsten diameter: 3/32 (2.4) | Search Amazon |
| KP2033-5B1 | Gas Lens Collet Body; tungsten diameter: 1/8 (3.2) | Search Amazon |
| KP2034-1B1 | Gas Lens Collet Body1; tungsten diameter: 0.020 (0.5) Requires KP2037-3B1 gas lens insulator; see source footnote. | Search Amazon |
| KP2034-2B1 | Gas Lens Collet Body1; tungsten diameter: 0.040 (1.0) Requires KP2037-3B1 gas lens insulator; see source footnote. | Search Amazon |
| KP2034-3B1 | Gas Lens Collet Body1; tungsten diameter: 1/16 (1.6) Requires KP2037-3B1 gas lens insulator; see source footnote. | Search Amazon |
| KP2034-4B1 | Gas Lens Collet Body1; tungsten diameter: 3/32 (2.4) Requires KP2037-3B1 gas lens insulator; see source footnote. | Search Amazon |
| KP2034-5B1 | Gas Lens Collet Body1; tungsten diameter: 1/8 (3.2) Requires KP2037-3B1 gas lens insulator; see source footnote. | Search Amazon |
| KP2034-6B1 | Gas Lens Collet Body1; tungsten diameter: 5/32 (4.0) Requires KP2037-3B1 gas lens insulator; see source footnote. | Search Amazon |
| KP2035-1B1 | Back Caps; size: Short | Search Amazon |
| KP2035-2B1 | Back Caps; size: Medium | Search Amazon |
| KP2035-4B1 | Back Caps; size: Long | Search Amazon |
| KP2036-1B1 | Back Caps; size: Long | Search Amazon |
| KP2036-2B1 | Back Caps; size: Short | Search Amazon |
| KP2037-3B1 | Gas lens insulator | Search Amazon |
As an Amazon Associate, Weld Support Parts earns from qualifying purchases. Search links do not confirm stock or an exact product match.
Original catalog and ordering notes
Source: Lincoln Electric BK291, 2024 Expendable Parts Guide. This is a dated catalog reference, not a current availability list. Check machine code, torch version, dimensions and package quantity before ordering.

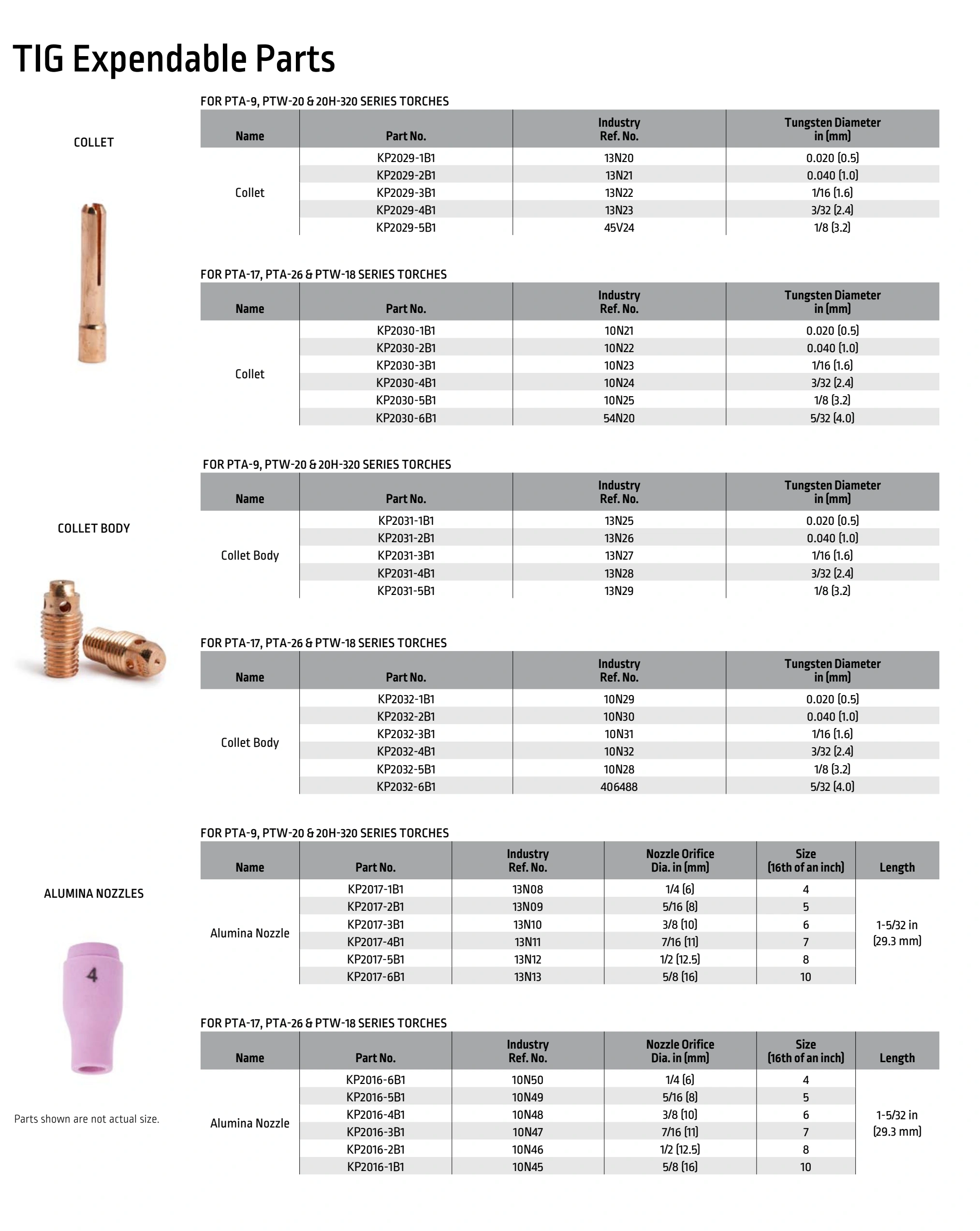

Catalog page 37
