Plasma torches
Tomahawk LC65 and LC65M torch parts
Diagram / Consumables
Parts List
No exact part number found on these pages. Search the full Lincoln catalog.
| Item # | Part # | Description | Buy / Search |
|---|---|---|---|
| 1 | KP2844-1 | Description: see source chart | Search Amazon |
| 2 | KP2844-14 | Swirl Ring (40,50,60A) | Search Amazon |
| 3 | KP2844-4 | Nozzle (60A) | Search Amazon |
| 4 | KP2844-9 | Description: see source chart | Search Amazon |
| 5 | KP2843-10 | Spacer | Search Amazon |
| 6 | KP2844-2 | Nozzle (40A) | Search Amazon |
| 6 | KP2844-3 | Nozzle (50A) | Search Amazon |
| 12 | KP2844-12 | Gouge Shield | Search Amazon |
| - | K2848-1 | LC65 Handheld Plasma Torch (25’) (7.5m), Includes: | Search Amazon |
| - | K2848-2 | LC65 Handheld Plasma Torch (50’) (15m), Includes: | Search Amazon |
| - | K2848-3 | Description: see source chart | Search Amazon |
| - | KP2844-5 | Description: see source chart | Search Amazon |
| - | KP2844-6 | Description: see source chart | Search Amazon |
| - | KP2844-7 | Description: see source chart | Search Amazon |
| - | KP2844-8 | Nozzle (Gouging) | Search Amazon |
| - | KP2844-10 | Retaining Cap (Shielded Contact) | Search Amazon |
| - | KP2844-11 | Description: see source chart | Search Amazon |
| - | KP2844-13 | Shield (40,60A) | Search Amazon |
| - | KP5348-1 | Description: see source chart | Search Amazon |
As an Amazon Associate, Weld Support Parts earns from qualifying purchases. Search links do not confirm stock or an exact product match.
Original catalog and ordering notes
Source: Lincoln Electric BK291, 2024 Expendable Parts Guide. This is a dated catalog reference, not a current availability list. Check machine code, torch version, dimensions and package quantity before ordering.

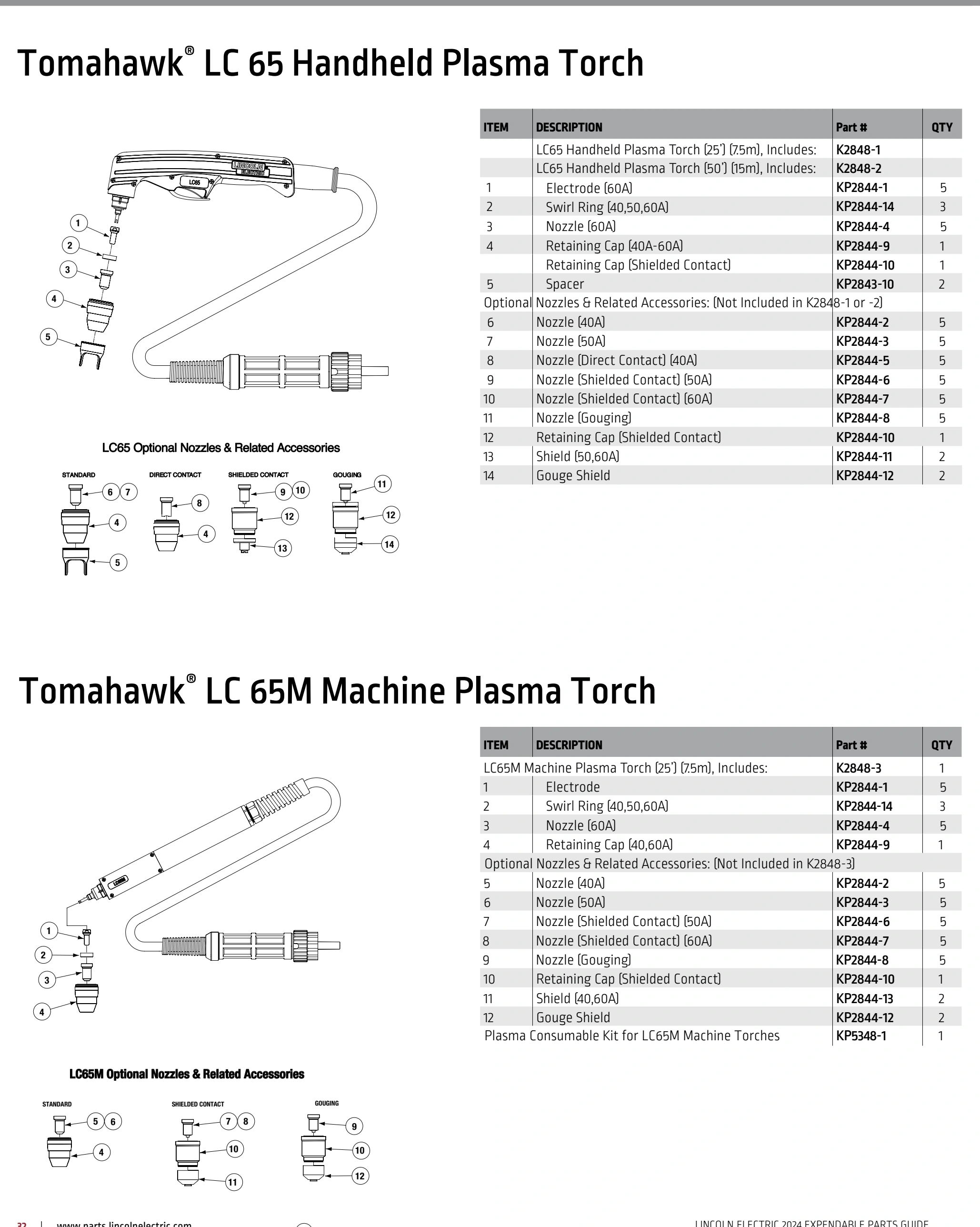

Catalog page 32
