Use this Analog Elite parts list when your Miller welding helmet parts search matches the older Elite helmet family. Match the part number in the table before buying shell parts, lens assembly, cover lenses, headgear, battery tray, CR2450 battery, or hard-hat adapters.
If the search is for Miller Elite welding helmet parts, confirm whether the helmet is Analog Elite, Digital Elite, Digital Elite 2.0, Performance, or ClearLight 4X before using the parts list.
Miller welding helmet parts
Start with these verified rows for Miller Welding Helmet Parts: Analog Elite. Buy buttons are copied only from WSP-approved links already present in this page table; use the full table below for part numbers that still need verification.
770246Ratchet Headgear Assembly (includes #9 & #10)
Jump to table row216326Front Lens Cover 4-11/16 x 5-5/8" (5-pkg)
Jump to table row216339Battery Tray
Jump to table row217043Battery, Lithium Cr2450
Jump to table row237872Helmet Shell, Lucky's Speed Shop
Jump to table row770249Fabric Headband
Jump to table rowSearch shortcut
Use this page for older Analog Elite helmet parts. For broad Miller Elite welding helmet parts searches, confirm this is not a Digital Elite or Performance helmet before ordering.
Start here if the helmet family is not certain.
Open helmet hubUse when the helmet says Digital Elite instead of Analog Elite.
Open Digital EliteUse when you only need a lens cover or magnifier route.
Open lens lookupAs an Amazon Associate, I earn from qualifying purchases.

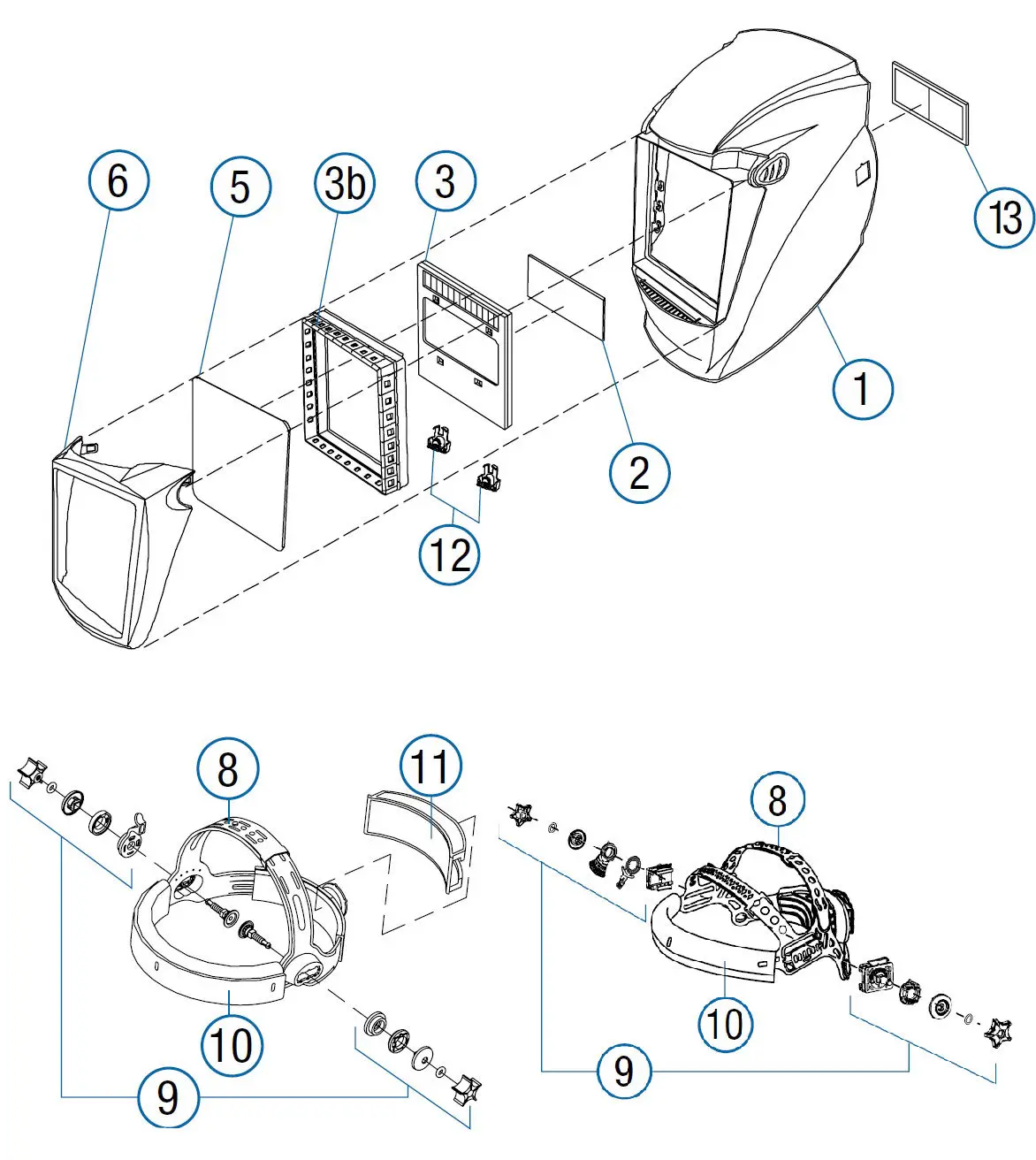

| Item # | Part # | Description | Qty | Buy |
|---|---|---|---|---|
| 1 | 216331 |
Helmet Shell, Black
|
Buy link unavailable. | |
| 1 | 241976 |
Helmet Shell, Black (QR)
|
Buy link unavailable. | |
| 1 | 227190 |
Helmet Shell, Camouflage
|
Buy link unavailable. | |
| 1 | 265709 |
Helmet Shell, Stars and Stripes III
|
Check Price on Amazon | |
| 1 | 237872 |
Helmet Shell, Lucky's Speed Shop
|
Check Price on Amazon | |
| 1 | 273954 |
Helmet Shell, Pink Camo
|
Buy link unavailable. | |
| 1 | 256172 |
Helmet Shell, Fury
|
Buy link unavailable. | |
| 1 | 260086 |
Helmet Shell, Vintage Roadster
|
Buy link unavailable. | |
| 1 | 260128 |
Helmet Shell, Not Forgotten
|
Buy link unavailable. | |
| 1 | 268619 |
Helmet Shell, Cat® - 1st Edition
|
Buy link unavailable. | |
| 1 | 269274 |
Helmet Shell, Blue Flame
|
Buy link unavailable. | |
| 1 | 269947 |
Helmet Shell, Hot Rod Garage
|
Buy link unavailable. | |
| 2 | 216327 |
Inside Lens Cover 4-1/4" x 2-1/2" (5-Pkg)
|
Check Price on Amazon | |
| 3 | 234758 |
Lens Assembly, Digital Elite
|
Check Price on Amazon | |
| 3a | 271323 |
Gasket, Auto-Darkening Lens Assy
|
Check Price on Amazon | |
| 3b | 241977 |
Gasket, Lens Assembly (QR)
|
Check Price on Amazon | |
| 4 | 216337 |
Gasket, Front Lens
|
Check Price on Amazon | |
| 5 | 216326 |
Front Lens Cover 4-11/16 x 5-5/8" (5-pkg)
|
Check Price on Amazon | |
| 6 | 241978 |
Front Lens Holder, Black, Flat
|
Check Price on Amazon | |
| 7 | 216335 |
Lens Holding Frame
|
Buy link unavailable. | |
| 8 | 770246 |
Ratchet Headgear Assembly (includes #9 & #10)
|
Check Price on Amazon | |
| 9 | 770248 |
Adjustment Angle/Stop Hardware Kit
|
Check Price on Amazon | |
| 10 | 770249 |
Fabric Headband
|
Check Price on Amazon | |
| Not Shown | 079975 |
Replacement O-Rings For Kits - Pack of 5
|
pk of 5 | Check Price on Amazon |
| 11 | 216336 |
Comfort Cushion
|
Buy link unavailable. | |
| 12 | 216339 |
Battery Tray
|
Check Price on Amazon | |
| Not Shown | 217043 |
Battery, Lithium Cr2450
|
Check Price on Amazon | |
| 13 | 212235 |
Lens, 0.75 Magnification
|
Check Price on Amazon | |
| 13 | 212236 |
Lens, 1.00 Magnification
|
Check Price on Amazon | |
| 13 | 212237 |
Lens, 1.25 Magnification
|
Check Price on Amazon | |
| 13 | 212238 |
Lens, 1.50 Magnification
|
Check Price on Amazon | |
| 13 | 212239 |
Lens, 1.75 Magnification
|
Check Price on Amazon | |
| 13 | 212240 |
Lens, 2.00 Magnification
|
Check Price on Amazon | |
| 13 | 212241 |
Lens, 2.25 Magnification
|
Check Price on Amazon | |
| 13 | 212242 |
Lens, 2.50 Magnification
|
Check Price on Amazon | |
222003 |
Hard Hat Adapter
|
Check Price on Amazon | ||
259637 |
Slotted Hard Hat Adapter (QR)
|
Check Price on Amazon |
