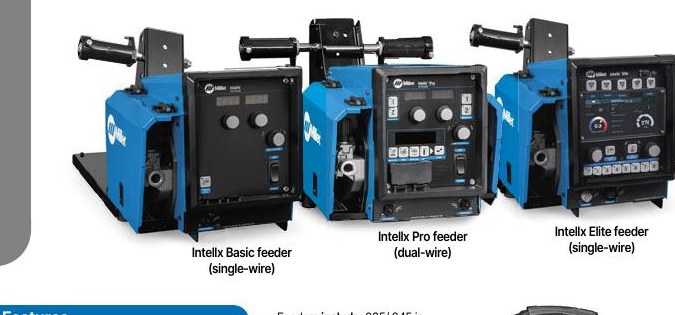

Miller Intellx Series Bench Feeders
Intellx Basic, Pro, Elite, and Swingarc feeder path for Deltaweld 350/500 and XMT 400 shop systems.
Bench feeder
MIG (GMAW)Flux-cored (FCAW)Advanced MIG functions on Pro / Elite models where catalog-supported
Compatibility Snapshot
- Catalog page 16 lists Deltaweld 350/500 and XMT 400 as suggested power-source paths.
- XR-Aluma-Pro Plus and XR-Pistol Plus are listed with Intellx Elite only.
Feeder Packages
| Stock number | Catalog item | Included gun | Manufacturer UPC check | Notes |
|---|---|---|---|---|
| 951783001 | Intellx Basic single-wire feeder with gun PKG,INTELLX, Q4015 ,DR ROLL KIT |
Bernard BTB Gun 400 A | 715959701457 | Includes drive roll kit per manufacturer product data. |
| 951815001 | Intellx Basic dual-wire feeder with two guns PKG, INTELLX DUAL Q4015 DR ROLL KIT |
Two Bernard BTB Gun 400 A paths | 715959701549 | Includes drive roll kits per manufacturer product data. |
| 951784001 | Intellx Pro single-wire feeder with gun PKG,INTELLX PRO, Q4015 ,DR ROLL KIT |
Bernard BTB Gun 400 A | 715959701464 | Includes drive roll kit per manufacturer product data. |
| 951816001 | Intellx Pro dual-wire feeder with two guns PKG, INTELLX PRO DUAL Q4015 DR ROLL KIT |
Two Bernard BTB Gun 400 A paths | 715959701556 | Includes drive roll kits per manufacturer product data. |
| 951941001 | Intellx Elite single-wire feeder with gun PKG,INTELLX ELITE, Q4015, DR ROLL KIT |
Bernard BTB Gun 400 A | 715959701693 | Elite model path. |
| 951942001 | Intellx Elite dual-wire feeder with two guns PKG,INTELLX ELITE DUAL, Q4015, DR ROLL KIT |
Two Bernard BTB Gun 400 A paths | 715959701709 | Elite dual-wire model path. |
| 951804001 | Intellx Pro Swingarc 12 ft single PKG,SWINGARC, INTELLX PRO 12 FT SINGLE |
Bernard BTB Gun 400 A | 715959701495 | Swingarc path. |
| 951932001 | Intellx Pro Swingarc 12 ft dual PKG,SWINGARC, INTELLX PRO 12 FT DUAL |
Two Bernard BTB Gun 400 A paths | 715959701686 | Swingarc dual-wire path. |
| 951000091 | Intellx Elite Swingarc 12 ft single PKG,SWINGARC, INTELLX ELITE 12 FT SINGLE |
Bernard BTB Gun 400 A | 715959707459 | Swingarc Elite path. |
| 951000092 | Intellx Elite Swingarc 12 ft dual PKG,SWINGARC, INTELLX ELITE 12 FT DUAL |
Two Bernard BTB Gun 400 A paths | 715959707466 | Swingarc Elite dual-wire path. |
| 951806001 | Intellx Pro Swingarc 16 ft single PKG,SWINGARC, INTELLX PRO 16 FT SINGLE |
Bernard BTB Gun 400 A | 715959701518 | Swingarc path. |
| 951000093 | Intellx Elite Swingarc 16 ft single PKG,SWINGARC, INTELLX ELITE 16 FT SINGLE |
Bernard BTB Gun 400 A | 715959707473 | Swingarc Elite path. |
Compatible Power Sources
XMT 400
Suggested multiprocess power-source path.
Open support pageCompatible Guns / Torches
Bernard BTB Gun 400 A
Included with many Intellx packages.
Open support pageXR-Aluma-Pro Plus
Catalog lists with Intellx Elite model only.
Open support pageXR-Pistol Plus
Catalog lists with Intellx Elite model only.
Open support pageAccessories To Check
| Part number | Accessory | Use | Manufacturer UPC check |
|---|---|---|---|
| 280470009 | ArcConnect control/motor cable, 9 ft | Control/motor cable path; manufacturer UPC record not found in uploaded Miller price file. | Not found / verify manually |
| 280471025 | ArcConnect control/motor cable, 25 ft ARCCONNECT CONTROL CABLE 25FT |
Control/motor cable path. | 715959668743 |
| 280471050 | ArcConnect control/motor cable, 50 ft ARCCONNECT CONTROL CABLE 50FT |
Control/motor cable path. | 715959668729 |
| 280471075 | ArcConnect control/motor cable, 75 ft ARCCONNECT CONTROL CABLE 75FT |
Control/motor cable path. | 715959668736 |
| 280471150 | ArcConnect control/motor cable, 150 ft ARCCONNECT CONTROL CABLE 150FT |
Control/motor cable path. | 715959668781 |
| 047141 | Spool adapter ADAPTER,SPOOL (14LB COIL) |
14 lb coil spool adapter. | 715959009072 |
| 295231 | Spool cover, left side / single-wire COVER,SPOOL 12 IN ASSY LH |
Single-wire or left side of dual-wire models. | 715959709910 |
| 296171 | Spool cover, right side COVER,SPOOL 12 IN ASSY RH |
Right side of dual-wire models. | 715959716338 |
| 058435 | Hanging bail HANGING BAIL, |
Bench feeder suspension path. | 715959006361 |
| 108008 | Wire reel assembly REEL, WIRE ADAPTER, 60 LB |
60 lb wire reel adapter path. | 715959006262 |
| 149838 | Pipe post with 18 in. base, 4 ft PIPE POST, 4FT W/BASE |
Bench feeder mounting path. | 715959008334 |
| 149839 | Pipe post with 18 in. base, 6 ft PIPE POST, 6FT W/BASE |
Bench feeder mounting path. | 715959008358 |
| 183997 | Swingpak base SWINGPAK 12 BASE |
Swingarc/Swingpak base path. | 715959193856 |
| 300352 | Single/dual spool carrier SPOOL CARRIER, SGL/DUAL, W/O 6FT PIPE POST |
Spool carrier for 6 ft pipe post path. | 715959379342 |
Related Lookup Pages
Miller 74 MPa Plus Bench Feeders
S-74 MPa Plus and D-74 MPa Plus feeder path for heavy industrial MIG, flux-cored, pulsed MIG, and aluminum push-pull systems.
Open support pageMiller 20 Series Bench Feeders
20 Series Basic and Digital bench feeder path for heavy industrial MIG and flux-cored work with CV/DC power sources.
Open support pageMiller MIG Drive Rolls
Drive roll lookup for Miller MIG and feeder setups.
Open support pageXR-Aluma-Pro Plus
Push-pull aluminum gun path listed with Plus feeder systems.
Open support pageMiller Catalog Accessories
These accessories are placed here only when the Miller catalog names this machine, torch, feeder, or family path. Verify plug style, voltage, package, and serial-specific details before ordering.
| Part | Accessory | Catalog fitment | Source / path |
|---|---|---|---|
| 301758 | Industrial Cart | For Deltaweld 350/500; industrial cooler integrates in the bottom of the cart. | Catalog p. 122 Open support path |
| 300390 | Industrial MIG 4/0 Kit with Lugs | For single-wire feeders. | Catalog p. 125 Open support path |
| 300957 | Industrial MIG 4/0 Kit with Lugs | For dual-wire feeders. | Catalog p. 125 Open support path |
| 300405 | Industrial MIG 4/0 Kit with Dinse-Style Connectors | For single-wire feeders. | Catalog p. 125 Open support path |
| 300956 | Industrial MIG 4/0 Kit with Dinse-Style Connectors | For dual-wire feeders. | Catalog p. 125 Open support path |
| 280471009 | ArcConnect Control / Motor Cable | 9 ft; for Intellx feeders. Connects power source to feeder or remote operator interface. | Catalog p. 130 Open support path |
Need More Help?
Wire Feed Problems
Use troubleshooting only after confirming the feeder model, power-source path, gun, wire size, and drive rolls.
Find My Part
Search by feeder stock number, gun family, drive roll, or power-source model when the setup is not clear.
Source: Miller Electric 2026 Full-Line Catalog, catalog pages 16, 19. Manufacturer UPC checks come from the uploaded Miller product/UPC file and are shown for verification only. No Amazon links were generated from this data.
