Miller Wire Feeder Support
Use this hub to route Miller feeder owners from feeder family to power source, engine drive, gun, drive rolls, and feeder accessories. This is equipment lookup first, troubleshooting second.
Deltaweld
AlumaFeed
ArcReach
SuitCase
Intellx
20 Series
74 MPa Plus
Power Sources

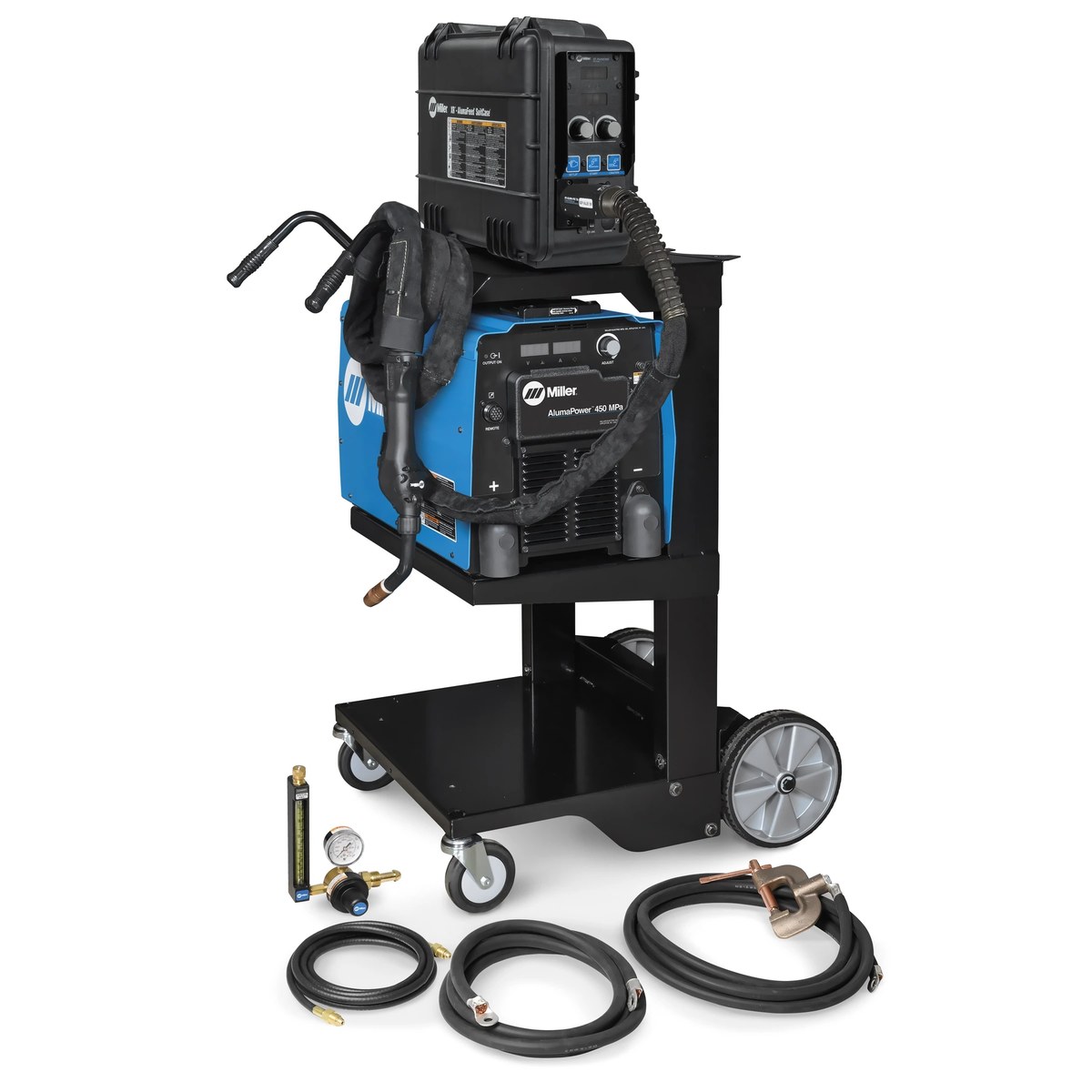

Aluminum Feeder Systems
Portable Feeders

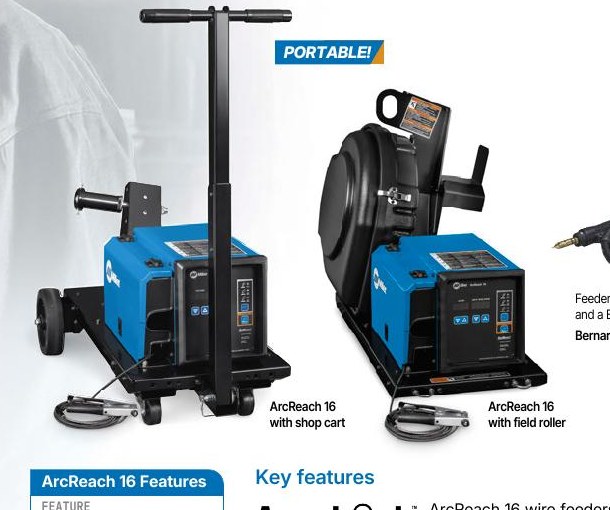

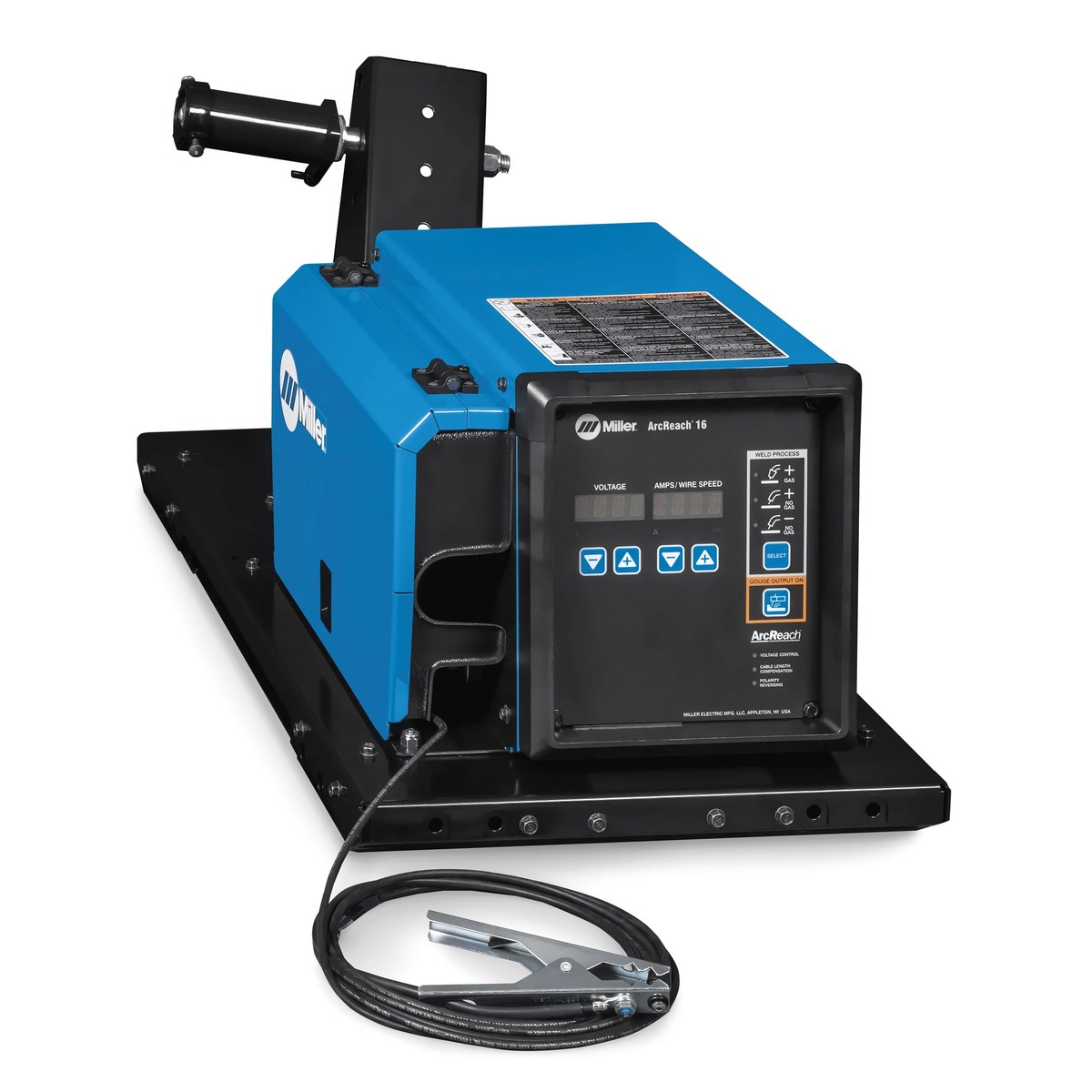

Miller ArcReach 16 Wire Feeder
Heavy industrial ArcReach feeder path for XMT 400/650 ArcReach-class systems and field packages that need a rugged remote feeder.
Portable feeder

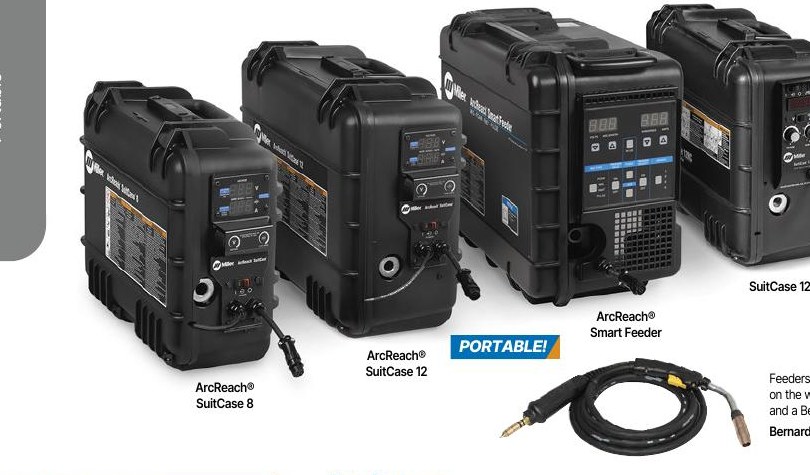

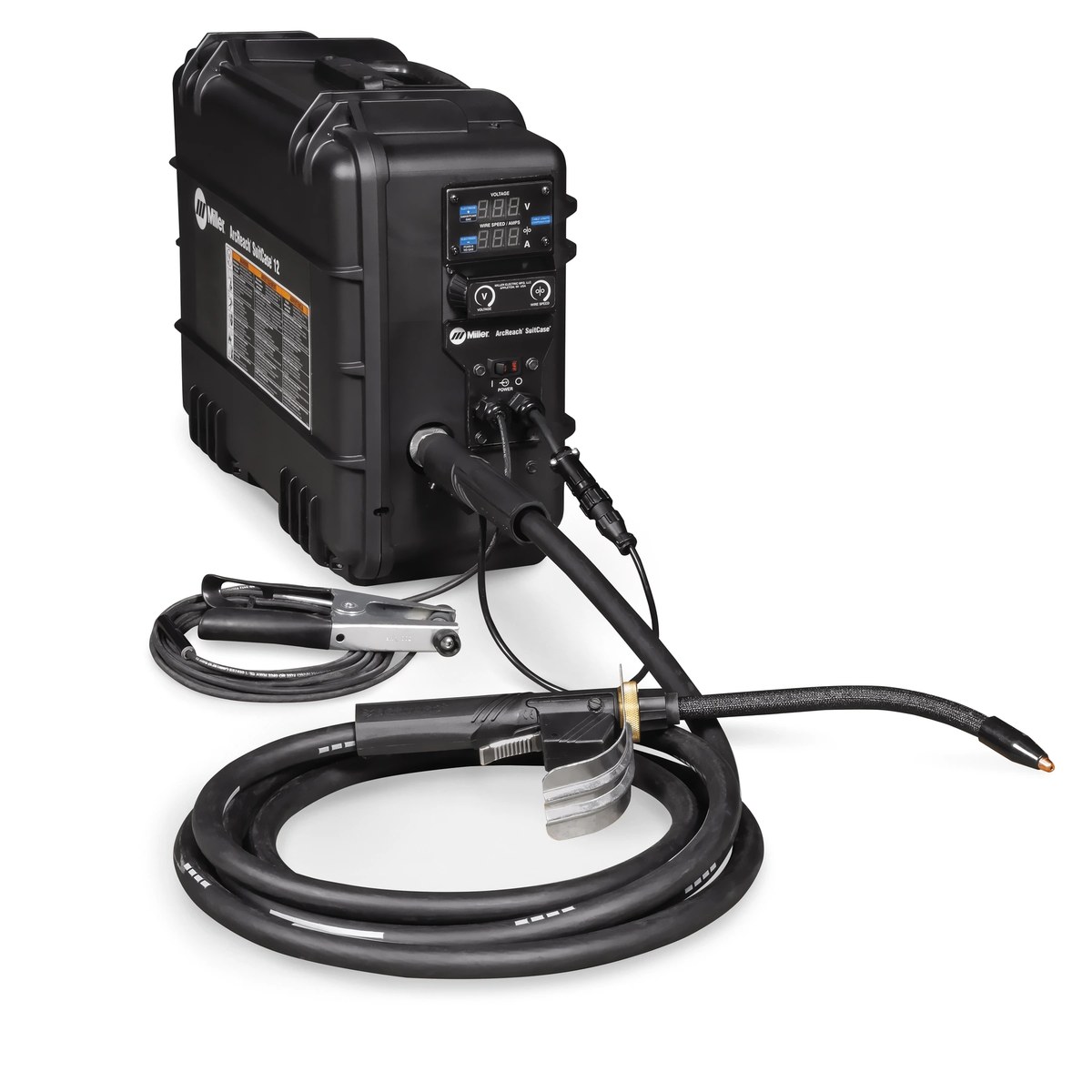

Miller SuitCase and ArcReach SuitCase Wire Feeders
Portable SuitCase feeder path for ArcReach SuitCase 8, ArcReach SuitCase 12, ArcReach SuitCase 12 Heavy Duty, ArcReach Smart Feeder, and SuitCase 12RC.
Portable feeder

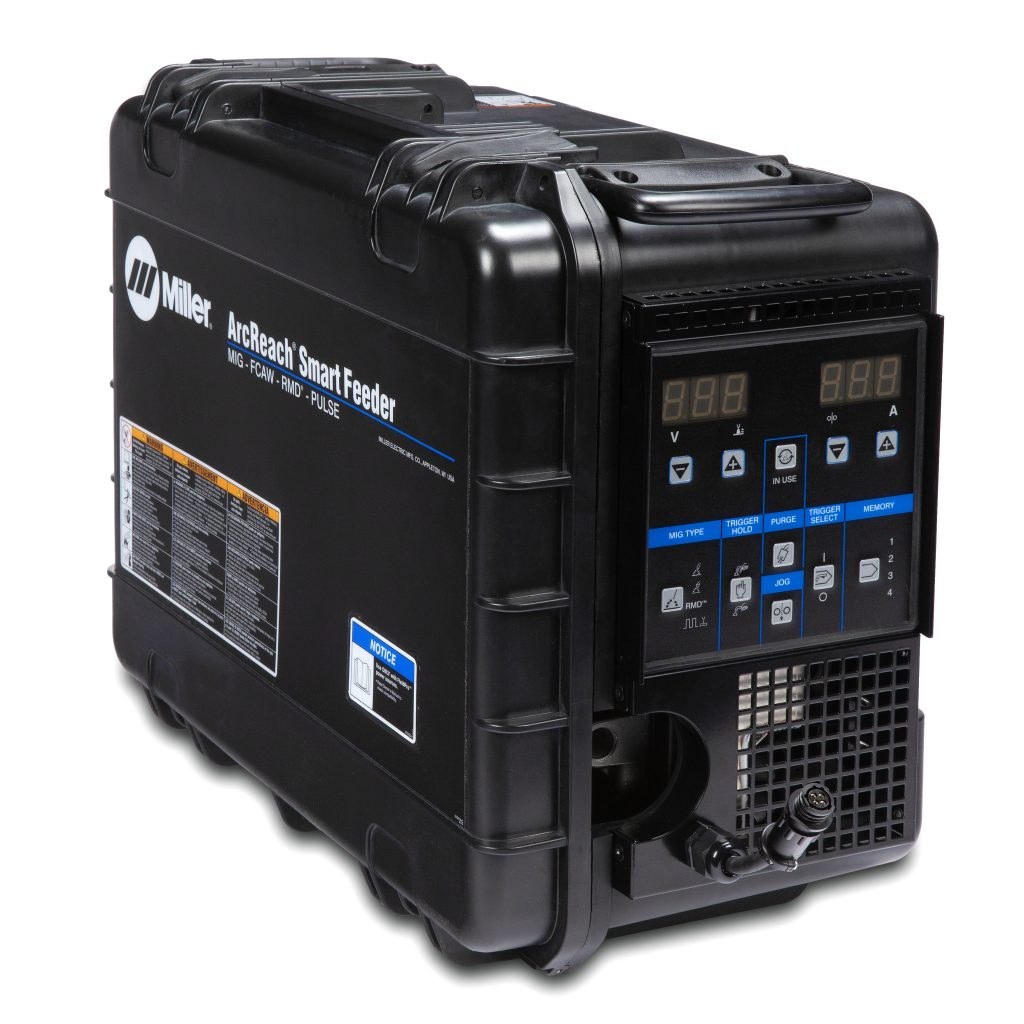

Miller ArcReach Smart Feeder
ArcReach Smart Feeder path for RMD and pulsed MIG setups with compatible XMT ArcReach or ArcReach-equipped engine-drive machines.
Portable feeder
Bench Feeders

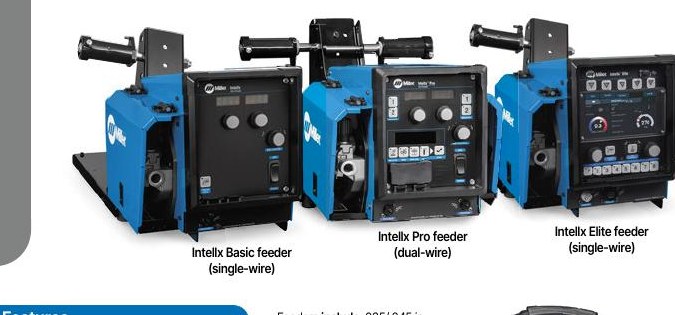

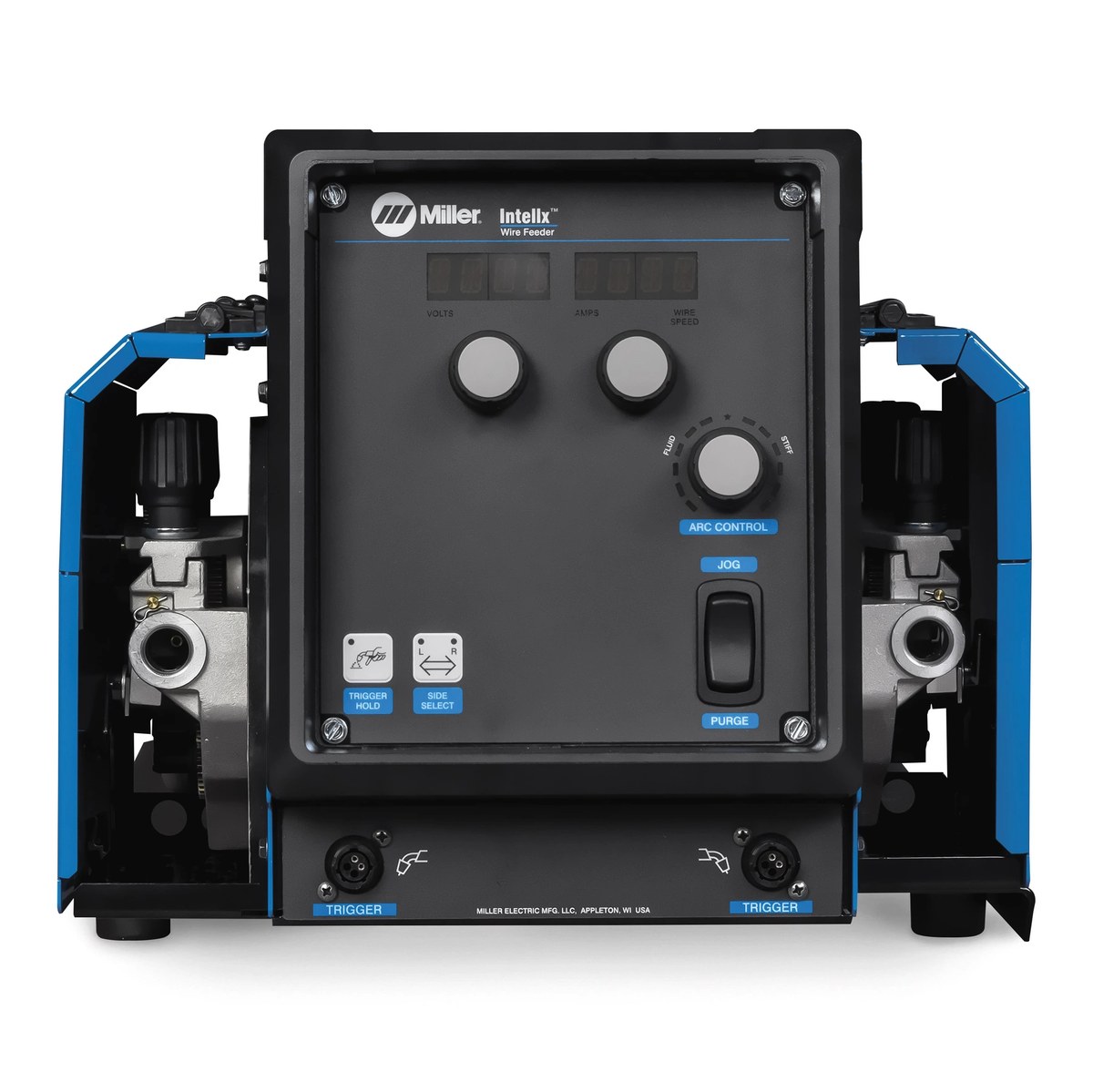

Miller Intellx Series Bench Feeders

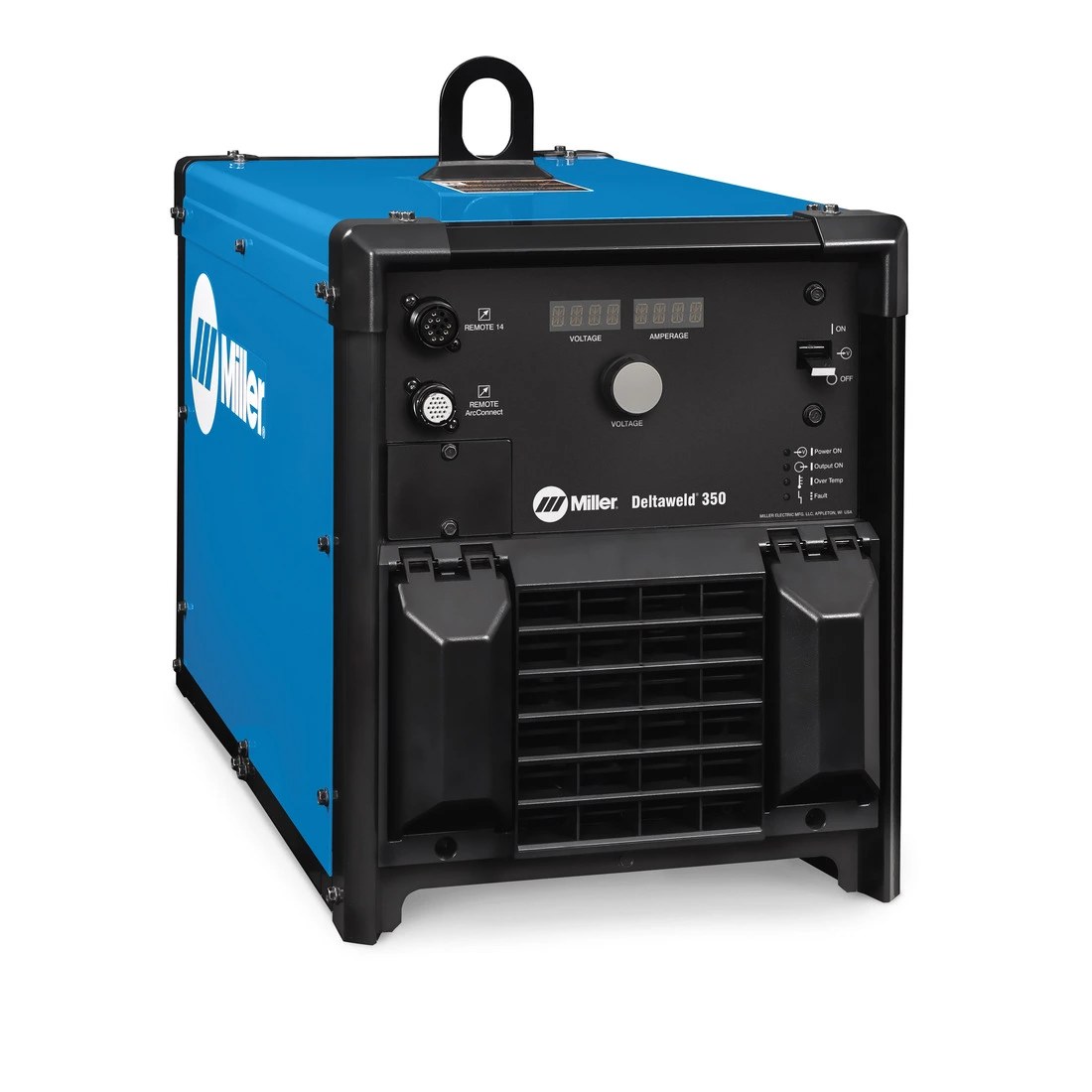

Intellx Basic, Pro, Elite, and Swingarc feeder path for Deltaweld 350/500 and XMT 400 shop systems.
Bench feeder

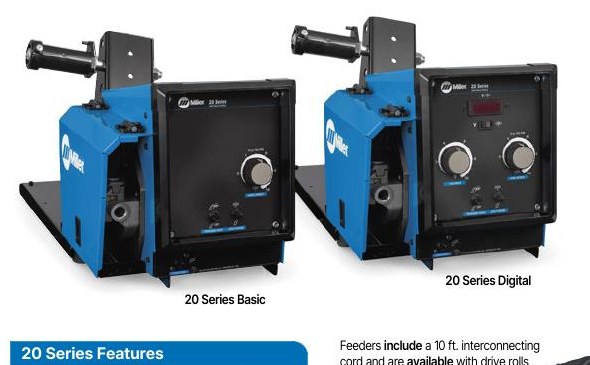

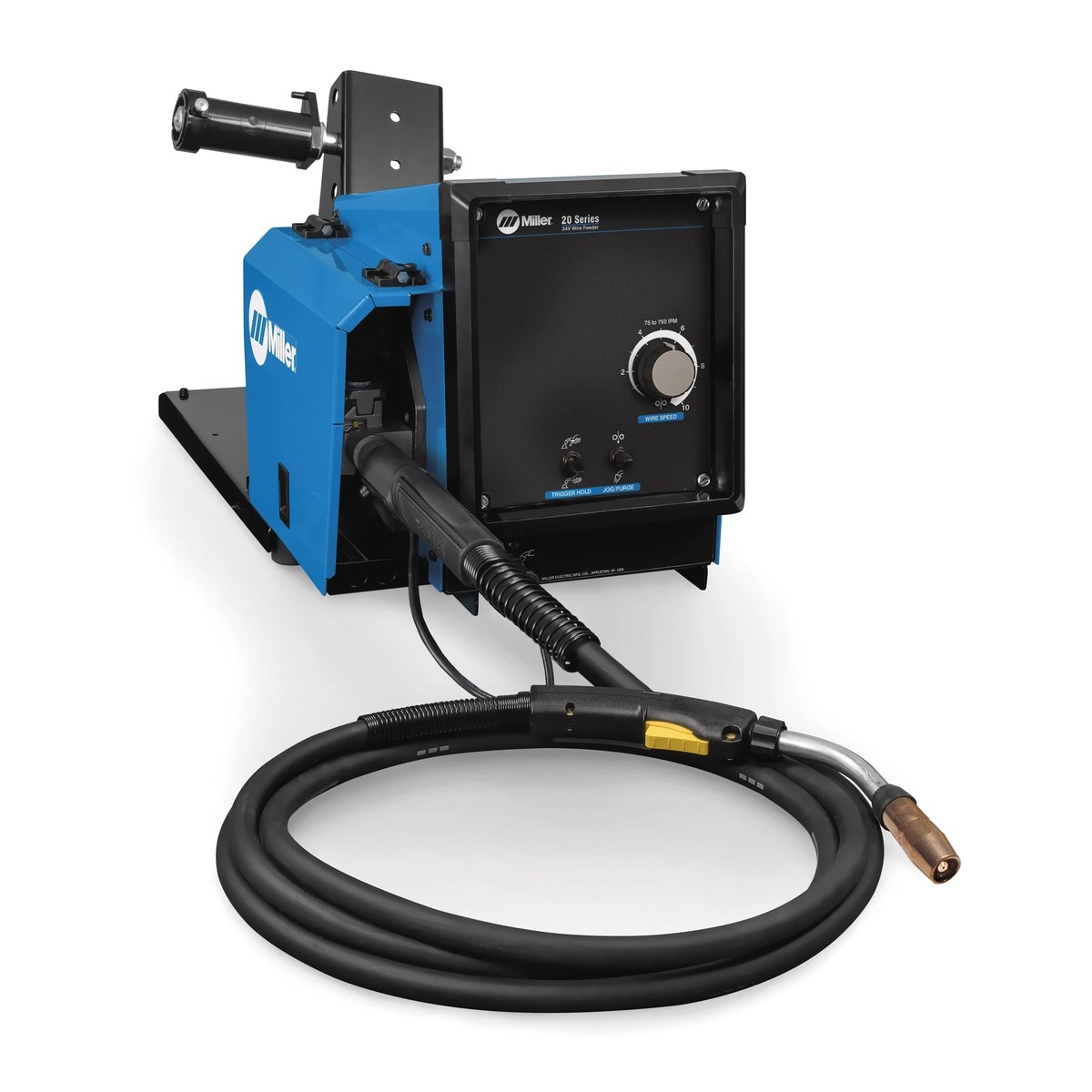

Miller 20 Series Bench Feeders
20 Series Basic and Digital bench feeder path for heavy industrial MIG and flux-cored work with CV/DC power sources.
Bench feeder

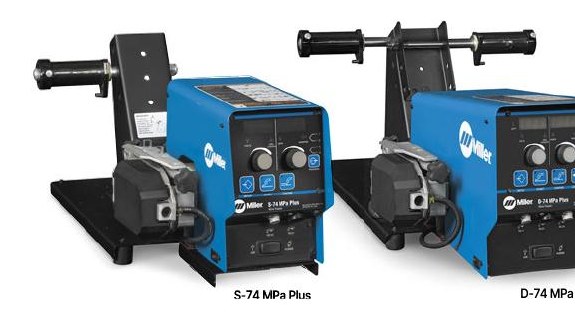

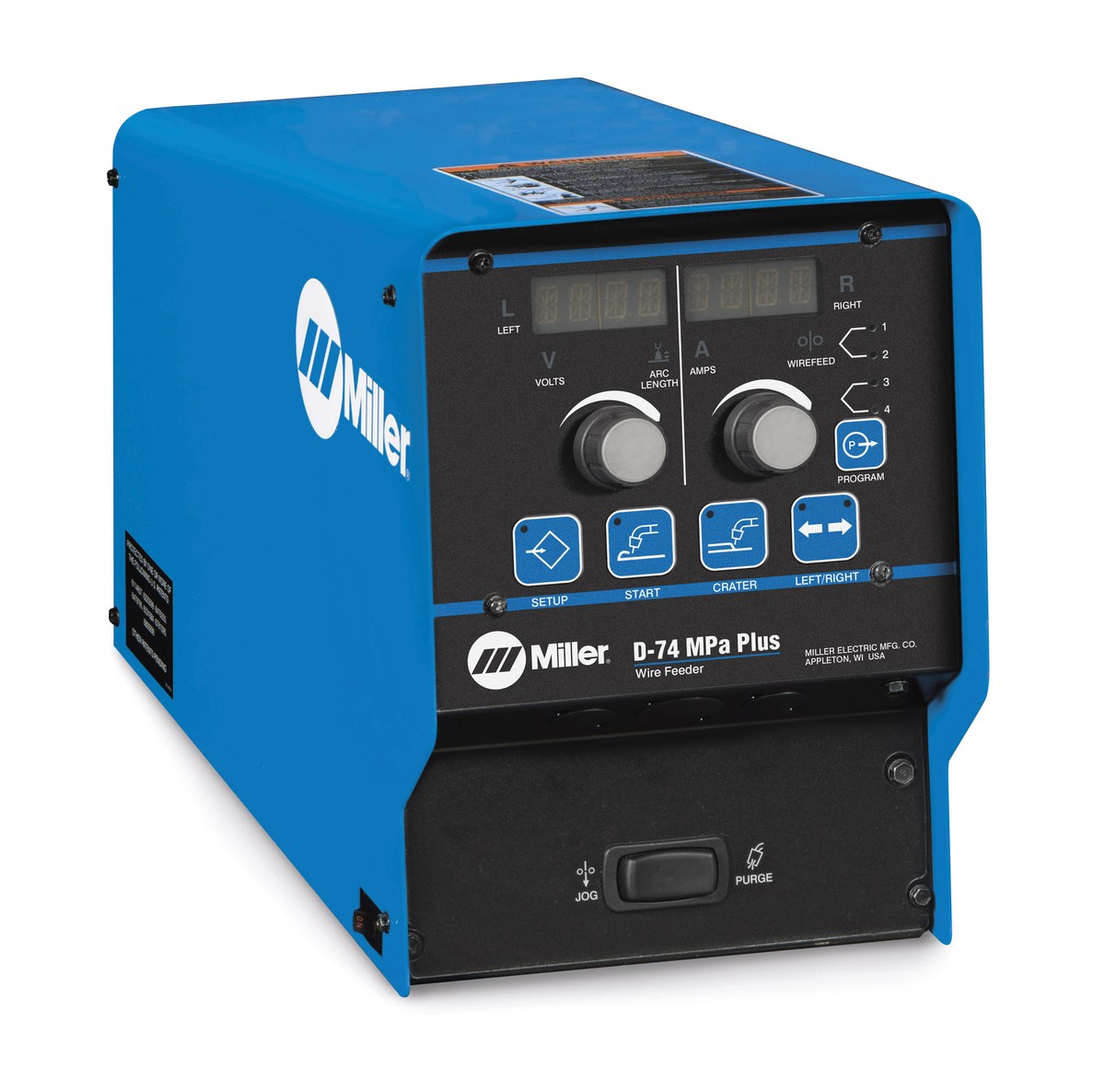

Miller 74 MPa Plus Bench Feeders
S-74 MPa Plus and D-74 MPa Plus feeder path for heavy industrial MIG, flux-cored, pulsed MIG, and aluminum push-pull systems.
Bench feeder
Main Paths From Here
Miller MIG Machine Support
Millermatic, Multimatic, and MIG-capable machine lookup.
Open support pageMiller MIG Drive Rolls
Drive roll lookup for Miller MIG and feeder setups.
Open support pageBernard BTB MIG Guns
Bernard BTB gun support used on many Miller feeder packages.
Open support pageXR-Aluma-Pro Plus
Push-pull aluminum gun path listed with Plus feeder systems.
Open support pageFind My Part
Use when the feeder, gun, drive roll, or power source is not clear.
Open support pageMiller Catalog Accessories
These accessories are placed here only when the Miller catalog names this machine, torch, feeder, or family path. Verify plug style, voltage, package, and serial-specific details before ordering.
| Part | Accessory | Catalog fitment | Source / path |
|---|---|---|---|
| 142382 | Feeder Cart | Low-profile creeper cart for moving a wire feeder around the work area. | Catalog p. 121 Open support path |
| 300408 | Running Gear Cylinder Rack | For XMT with single- or dual-wire feeders. | Catalog p. 122 Open support path |
| 301758 | Industrial Cart | For Deltaweld 350/500; industrial cooler integrates in the bottom of the cart. | Catalog p. 122 Open support path |
| 195445 | MIGRunner Cart | For AlumaFeed system and XMT 400 with single-wire feeders. | Catalog p. 122 Open support path |
| 300390 | Industrial MIG 4/0 Kit with Lugs | For single-wire feeders. | Catalog p. 125 Open support path |
| 300957 | Industrial MIG 4/0 Kit with Lugs | For dual-wire feeders. | Catalog p. 125 Open support path |
| 300405 | Industrial MIG 4/0 Kit with Dinse-Style Connectors | For single-wire feeders. | Catalog p. 125 Open support path |
| 300956 | Industrial MIG 4/0 Kit with Dinse-Style Connectors | For dual-wire feeders. | Catalog p. 125 Open support path |
| 042872 | Process Selector Control | For CC, CV, and CC/CV power sources; dual-wire feeders; isolation/polarity reversing. | Catalog p. 126 Open support path |
| 242208025 | 8-Conductor Cable | 25 ft; for 24 VAC SuitCase 12RC and 20 Series feeders and 14-pin remote controls. Not for 115 V XR feeders. | Catalog p. 130 Open support path |
| 242208050 | 8-Conductor Cable | 50 ft; for 24 VAC SuitCase 12RC and 20 Series feeders and 14-pin remote controls. Not for 115 V XR feeders. | Catalog p. 130 Open support path |
| 242208080 | 8-Conductor Cable | 80 ft; for 24 VAC SuitCase 12RC and 20 Series feeders and 14-pin remote controls. Not for 115 V XR feeders. | Catalog p. 130 Open support path |
| 247831025 | 11-Conductor Cable | 25 ft; for XR-AlumaFeed SuitCase and 74 MPa Plus feeders. | Catalog p. 130 Open support path |
| 247831050 | 11-Conductor Cable | 50 ft; for XR-AlumaFeed SuitCase and 74 MPa Plus feeders. | Catalog p. 130 Open support path |
| 247831080 | 11-Conductor Cable | 80 ft; for XR-AlumaFeed SuitCase and 74 MPa Plus feeders. | Catalog p. 130 Open support path |
| 242205025 | 14-Conductor Cable | 25 ft; for HDC and WC-115 weld controls; supports remote controls, 24 V, and 115 V feeders. | Catalog p. 130 Open support path |
| 242205050 | 14-Conductor Cable | 50 ft; for HDC and WC-115 weld controls; supports remote controls, 24 V, and 115 V feeders. | Catalog p. 130 Open support path |
| 280471009 | ArcConnect Control / Motor Cable | 9 ft; for Intellx feeders. Connects power source to feeder or remote operator interface. | Catalog p. 130 Open support path |
| 280471025 | ArcConnect Control / Motor Cable | 25 ft; for Intellx feeders. Connects power source to feeder or remote operator interface. | Catalog p. 130 Open support path |
| 280471050 | ArcConnect Control / Motor Cable | 50 ft; for Intellx feeders. Connects power source to feeder or remote operator interface. | Catalog p. 130 Open support path |
| 280471075 | ArcConnect Control / Motor Cable | 75 ft; for Intellx feeders. Connects power source to feeder or remote operator interface. | Catalog p. 130 Open support path |
| 280471150 | ArcConnect Control / Motor Cable | 150 ft; for Intellx feeders. Connects power source to feeder or remote operator interface. | Catalog p. 130 Open support path |
| 141604 | PSA-2 Control | Required when using SuitCase 12RC, 20 Series, or 74 MPa Plus feeders with power sources having only 115 V power. | Catalog p. 130 Open support path |
| 047141 | Spool Adapter | For 14 lb Hobart or Lincoln self-shielding wire. | Catalog p. 130 Open support path |
| 295231 | Spool Cover | For single-wire model and left side of dual-wire Intellx, 20 Series, and 74 MPa feeders. | Catalog p. 130 Open support path |
| 296171 | Spool Cover | For right side of dual-wire Intellx and 74 MPa feeders. | Catalog p. 130 Open support path |
| 137546 | WC-115A Weld Control | Without contactor; for CC DC power sources and CV/DC engine drives supplying 115 V. | Catalog p. 130 Open support path |
| 137546011 | WC-115A Weld Control with Contactor | For CC DC power sources and CV/DC engine drives supplying 115 V. | Catalog p. 130 Open support path |
| 137549 | WC-24 Weld Control | For Spoolmate 200, Spoolmatic, and Spoolmatic Pro with Miller CV power sources having 14-pin receptacles and 24 VAC. | Catalog p. 130 Open support path |
| 141580 | Wire Straightener | .035-.045 in wire; for 20 Series and 74 MPa Plus feeders. | Catalog p. 130 Open support path |
| 141581 | Wire Straightener | 1/16-1/8 in wire; for 20 Series and 74 MPa Plus feeders. | Catalog p. 130 Open support path |
Source: Miller Electric 2026 Full-Line Catalog, catalog pages 9, 10, 13, 14, 15, 16, 17, 18, 19, 28, 53, 122, 123, 125, 130. Manufacturer UPC checks come from the uploaded Miller product/UPC file and are shown for verification only. No Amazon links were generated from this data.
