Identify the Auto-Line package
PC/9.8 lists stock 907851 with a 20 ft. torch and 907851001 with a 50 ft. torch.

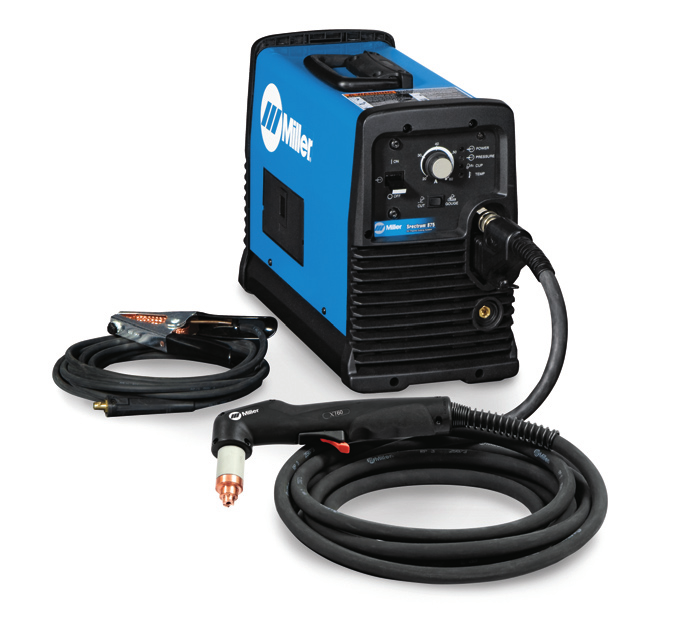

Miller multi-voltage industrial air plasma cutter and gouger
Miller Spectrum 875 Auto-Line Plasma Cutter Machine Support
The Spectrum 875 Auto-Line automatically connects to 208-575 V single- or three-phase input. PC/9.8 lists 20 ft. and 50 ft. XT60 hand-held torch packages, 7/8-inch rated cut capacity, engine-drive compatibility, and a shared XT60 consumable family.
Start Here
Use the shortest path for the Auto-Line machine, XT60 torch, consumables, accessories, or cutting problem.
Use the XT60 torch
The replacement torch numbers are 249953 for 20 ft. and 249954 for 50 ft.
Find shared consumables
The XT60 electrode, tips, shields, deflector, and gouging parts are shared with the standard Spectrum 875.
Check cut quality
Start with the correct tip, drag shield, electrode, air supply, standoff, and material thickness.
Use an engine drive
PC/9.8 lists output settings for Miller engine-driven welders with auxiliary power.
Compare the standard model
The related Spectrum 875 uses 208/230 V single-phase input rather than Auto-Line multi-voltage input.
Spectrum 875 Auto-Line Specs
Core machine data transcribed from Miller PC/9.8, issued December 2025.
What Comes With the Auto-Line Machine
Package contents called out on PC/9.8.
- XT60 hand-held torch with either a 20 ft. or 50 ft. cable, including a complete set of 60 A consumables.
- Heavy-duty work clamp with flexible cable and quick connect.
- 10 ft. power cord and extra consumables.
- Auto-Line input connection for 208-575 V, one- or three-phase, 50 or 60 Hz power.
- Auto-Refire, automatic air regulation, Auto postflow, Fan-On-Demand, Wind Tunnel Technology, and LVC line voltage compensation.
- The sheet notes that the Auto-Line power source is warranted for three years, parts and labor, and the XT torch for one year, parts only.
Auto-Line Cutting and Gouging Notes
Use the correct front-end configuration and verify the available input service before diagnosing the cut.
| Mild steel thickness | Approximate travel speed | Catalog note |
|---|---|---|
| 1/4 in. | 105 ipm | Recommended cut speed |
| 3/8 in. | 54 ipm | Recommended cut speed |
| 1/2 in. | 34 ipm | Rated cut chart |
| 5/8 in. | 27 ipm | Rated cut chart |
| 3/4 in. | 18 ipm | Rated cut chart |
| 7/8 in. | 15 ipm | Rated cut capacity |
| 1 in. | 10 ipm | Recommended cut speed |
| 1-1/4 in. | 3 ipm | Maximum sever cut |
- Recommended maximum piercing capacity for hand-held and automated applications is 7/16 in.
- For high-thermal-conductivity metals, Miller notes that cutting capability may be reduced by as much as 30 percent.
- For cutting, the sheet distinguishes the 60 A tip and 40 A tip. For gouging, replace the cutting tip and drag shield with the XT60 gouge tip and gouge shield.
- Replacing the drag shield with the deflector improves arc visibility while maintaining a 1/16 in. standoff.
Spectrum 875 Auto-Line Packages
Exact Auto-Line ordering rows from PC/9.8. No exact approved registry match is currently attached to the machine stock numbers, so these use Amazon search only.
| Stock | Package | Catalog description | Buy / lookup |
|---|---|---|---|
| 907851 | Spectrum 875 Auto-Line 20 ft. package | 208-575 V, 1- or 3-phase power source with 20 ft. XT60 hand-held torch. | Search Amazon Site lookup |
| 907851001 | Spectrum 875 Auto-Line 50 ft. package | 208-575 V, 1- or 3-phase power source with 50 ft. XT60 hand-held torch. | Search Amazon Site lookup |
Shared XT60 Parts and Accessories
These part paths are shared with the standard Spectrum 875. The standard page keeps the complete tables and approved buying paths together so both machine variants stay consistent.
| Part family | PC/9.8 part numbers | Next step |
|---|---|---|
| Replacement hand torches | 249953 20 ft.; 249954 50 ft. | Open torch table |
| XT60 consumables | 263834, 256028, 256026, 249929, 262643, 249935-3, 256029, 256030, 256031-1, 256027 | Open consumable table |
| Cutting guides | 253054, 253055, 195979 | Open accessory table |
| Air filtration | 300491, 212771, 228926, 228928 | Open accessory table |
| Cable protection and work leads | 239642, 231867, 231868, 234838, 234930 | Open accessory table |
| Power and consumable kit | 300517, 256033 | Open accessory table |
Source: Miller Electric Spectrum 875/875 Auto-Line specification sheet PC/9.8, issued December 2025, pages 1-4. Compatibility and accessory descriptions are transcribed from the supplied Miller literature. Amazon links are optional buying aids; direct buttons are limited to approved Miller registry matches.
