Identify the package
PC/9.8 lists Spectrum 875 stock 907850 with a 20 ft. torch and 907850001 with a 50 ft. torch.
Miller industrial air plasma cutter and gouger

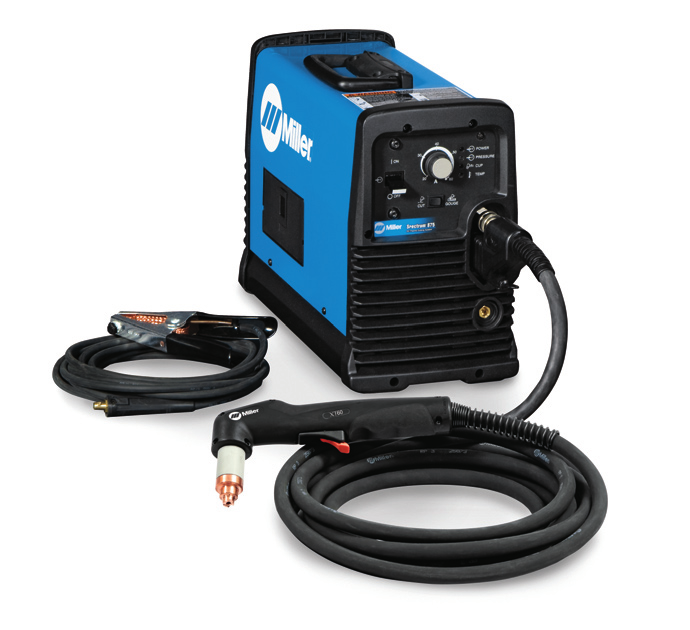

Miller Spectrum 875 Plasma Cutter Machine Support
The Spectrum 875 is a 208/230 V single-phase air plasma cutting and gouging system. PC/9.8 lists 20 ft. and 50 ft. XT60 hand-held torch packages, 7/8-inch rated cut capacity, engine-drive compatibility, and a shared XT60 consumable family.
Start Here
Use the shortest path for the Spectrum 875 machine, XT60 torch, consumables, accessories, or cutting problem.
Replace the XT60 torch
The replacement torch numbers are 249953 for 20 ft. and 249954 for 50 ft.
Find consumables
Use the XT60 electrode, tip, drag shield, deflector, retaining cup, and gouging parts below.
Check cut quality
Start with the correct tip, drag shield, electrode, air supply, standoff, and material thickness.
Use an engine drive
Miller lists compatible engine-driven welders and recommended output settings when using a 240 V full KVA adapter cord.
Compare the Auto-Line model
The related Spectrum 875 Auto-Line accepts 208-575 V, one- or three-phase input.
Spectrum 875 Specs
Core machine data transcribed from Miller PC/9.8, issued December 2025.
What Comes With the Machine
Package contents called out on the first page of PC/9.8.
- XT60 hand-held torch with either a 20 ft. or 50 ft. cable, including a complete set of 60 A consumables.
- Heavy-duty work clamp with flexible cable and quick connect.
- 10 ft. power cord and extra consumables.
- Consumables storage compartment for convenient access to consumables and parts.
- Auto-Refire, automatic air regulation, Auto postflow, Fan-On-Demand, and Wind Tunnel Technology features listed by Miller.
- LVC line voltage compensation for variable power conditions; the sheet notes operation with power fluctuations up to plus or minus 15 percent.
Cutting and Gouging Notes
Use the correct torch front-end configuration and verify the air supply before diagnosing the cut.
| Mild steel thickness | Approximate travel speed | Catalog note |
|---|---|---|
| 1/4 in. | 105 ipm | Recommended cut speed |
| 3/8 in. | 54 ipm | Recommended cut speed |
| 1/2 in. | 34 ipm | Rated cut chart |
| 5/8 in. | 27 ipm | Rated cut chart |
| 3/4 in. | 18 ipm | Rated cut chart |
| 7/8 in. | 15 ipm | Rated cut capacity |
| 1 in. | 10 ipm | Recommended cut speed |
| 1-1/4 in. | 3 ipm | Maximum sever cut |
- Recommended maximum piercing capacity for hand-held and automated applications is 7/16 in.
- For aluminum and other metals with high thermal conductivity, Miller notes that cutting capability may be reduced by as much as 30 percent.
- For cutting, the sheet distinguishes the 60 A tip and 40 A tip. For gouging, replace the cutting tip and drag shield with the XT60 gouge tip and gouge shield.
- Replacing the drag shield with the deflector improves arc visibility while maintaining a 1/16 in. standoff.
Engine-Drive Compatibility
PC/9.8 lists these Miller engine-driven welders with continuous auxiliary power and a recommended Spectrum output setting.
| Engine-driven welder | Continuous generator power | Steel quality cut | Spectrum output |
|---|---|---|---|
| Bobcat 230, 230 3 Phase, 265 | 9,500 watts | 1/2 in. | 45 A |
| Trailblazer Series | 10,500 watts | 1/2 in. | 45 A |
| Big Blue 400 Series | 10,000 watts | 1/2 in. | 45 A |
| Big Blue 500 Pro, 600 Series, and 800 Series | 12,000 watts 1-phase; 20,000 watts 3-phase | 7/8 in. | 50 A |
The Full KVA Adapter Cord 300517 is the accessory Miller lists for adapting an engine-drive 120/240 V plug to the Spectrum 240 V plug.
Spectrum 875 Machine Packages
Exact ordering rows from PC/9.8. Stock-number buy buttons use Amazon search because no exact approved registry match is currently attached to these machine packages.
| Stock | Machine package | Catalog description | Buy / lookup |
|---|---|---|---|
| 907850 | Spectrum 875 20 ft. package | 208/230 V, 1-phase power source with 20 ft. XT60 hand-held torch. | Search Amazon Site lookup |
| 907850001 | Spectrum 875 50 ft. package | 208/230 V, 1-phase power source with 50 ft. XT60 hand-held torch. | Search Amazon Site lookup |
| 907851 | Spectrum 875 Auto-Line 20 ft. package | 208-575 V, 1- or 3-phase power source with 20 ft. XT60 hand-held torch. | Search Amazon Site lookup |
| 907851001 | Spectrum 875 Auto-Line 50 ft. package | 208-575 V, 1- or 3-phase power source with 50 ft. XT60 hand-held torch. | Search Amazon Site lookup |
XT60 Replacement Torches
Choose the cable length that matches the original machine package and the operator's reach.
| Part | Torch | Use | Buy / lookup |
|---|---|---|---|
| 249953 | XT60 hand-held torch 20 ft. | Replacement XT60 hand-held torch for the 20 ft. package. | View on Amazon Open XT60 support Site lookup |
| 249954 | XT60 hand-held torch 50 ft. | Replacement XT60 hand-held torch for the 50 ft. package. | View on Amazon Open XT60 support Site lookup |
XT60 Consumables
The XT60 parts are shared between the Spectrum 875 and Spectrum 875 Auto-Line. Confirm amperage and the gouging configuration before ordering.
| Part | Item | Catalog use | Buy / lookup |
|---|---|---|---|
| 263834 | O-ring | Common XT60 consumable component. | View on Amazon Site lookup |
| 256028 | Swirl ring | Common XT60 consumable component. | View on Amazon Site lookup |
| 256026 | Electrode | Common XT60 cutting consumable component. | View on Amazon Site lookup |
| 249929 | 60 A tip | Standard XT60 cutting tip for the Spectrum 875 rated output. | View on Amazon Site lookup |
| 262643 | 40 A tip | XT60 lower-amperage cutting tip listed by Miller. | View on Amazon Site lookup |
| 249935-3 | Gouge tip | Use with the XT60 gouge shield for gouging. | Search Amazon Site lookup |
| 256029 | Retaining cup | Common XT60 consumable component. | View on Amazon Site lookup |
| 256030 | Deflector | Alternate front-end part that improves arc visibility while maintaining a 1/16 in. standoff. | View on Amazon Site lookup |
| 256031-1 | Gouge shield | Use with the XT60 gouge tip for gouging. | Search Amazon Site lookup |
| 256027 | Drag shield | Standard cutting shield; replace with the deflector when visibility is preferred. | View on Amazon Site lookup |
Additional Accessories
PC/9.8 lists these accessories for the Spectrum 875 and Spectrum 875 Auto-Line. Direct buttons are limited to approved Miller registry matches.
| Part | Accessory | Catalog note | Buy / lookup |
|---|---|---|---|
| 300517 | Full KVA adapter cord | Adapts an engine-drive 120/240 V plug to the Spectrum 240 V plug. | View on Amazon Site lookup |
| 256033 | XT60 consumable kit | Includes standard electrodes, standard tips, drag shield, deflector, o-ring, swirl ring, retaining cup, gouge tip, gouge shield, and silicone grease. | View on Amazon Site lookup |
| 253054 | Plasma standoff roller guide | Helps maintain recommended standoff distance to maximize cutting performance and tip life. | View on Amazon Site lookup |
| 253055 | Plasma circle-cutting guide | Cuts straight lines or circles up to 12 in. diameter. | View on Amazon Site lookup |
| 195979 | Suction/magnetic pivot base | Convenient attachment for the cutting guide on flat surfaces. | View on Amazon Site lookup |
| 300491 | RTI filter and bracket | Removes water, dirt, and oil near the point of air consumption. | View on Amazon Site lookup |
| 212771 | RTI replacement filter element | Replacement element for RTI filter and bracket 300491. | View on Amazon Site lookup |
| 228926 | In-line air filter kit | Mounts to the back of the Spectrum and filters to .85 microns. | View on Amazon Site lookup |
| 228928 | In-line air filter replacement element | Replacement element for in-line filter 228926. | View on Amazon Site lookup |
| 239642 / 231867 / 231868 | XT60 torch cable covers | Leather covers for 20 ft., 25 ft., and 50 ft. torch cables. | 20 ft. 25 ft. 50 ft. |
| 234838 / 234930 | Flexible work cable | Heavy-duty clamp and quick connect; 20 ft. or 50 ft. cable. | 20 ft. 50 ft. |
| 235658 / 272209 | Shade 5 safety glasses | Gen 1 black frame and Slag black frame options listed by Miller. | Search Amazon Site lookup |
Source: Miller Electric Spectrum 875/875 Auto-Line specification sheet PC/9.8, issued December 2025, pages 1-4. Compatibility and accessory descriptions are transcribed from the supplied Miller literature. Amazon links are optional buying aids; direct buttons are limited to approved Miller registry matches.
