Miller MIG Machine Support

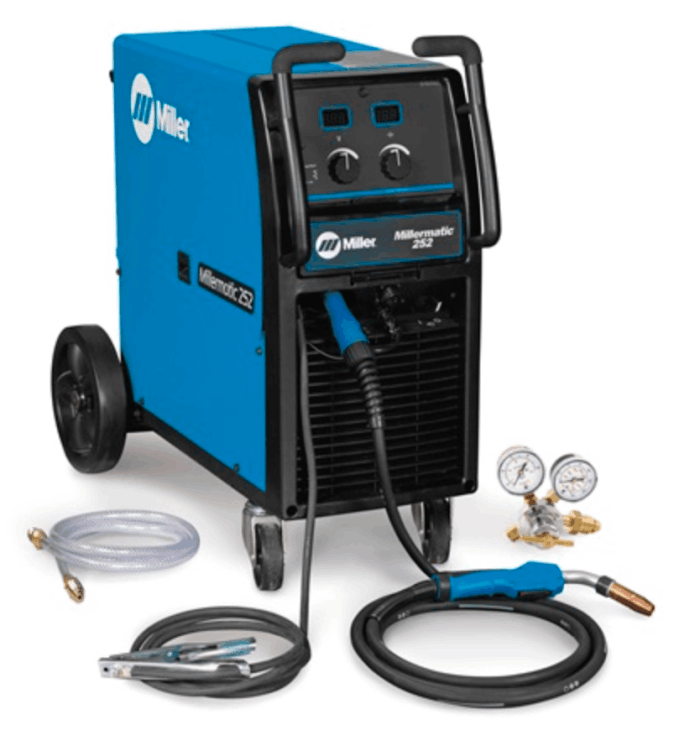

Millermatic 252

Industrial MIG and flux-cored all-in-one machine with 250 A output, included MDX-250 gun, factory running gear, direct spool gun support, and XR push-pull aluminum gun paths.

MIG (GMAW)Flux-cored (FCAW) Industrial
Millermatic 252

Processes

MIG (GMAW), Flux-cored (FCAW)

Welding range

30 - 300 A

Input power

208/240 V, single-phase, 60 Hz or 230/460/575 V, single-phase, 60 Hz

Wire feed speed

50 - 700 ipm (1.3 - 17.8 m/min.)

Weight

205 lb. (93 kg)

Class

Industrial

Feature Highlights

Highest Output In Its Class

Rated 250 A at 26.5 VDC with a 40 percent duty cycle for heavier industrial MIG and flux-cored jobs.

Digital Meters And Infinite Voltage

Self-calibrating digital meters allow voltage and wire feed speed presetting before welding.

Integrated Timers

Presettable preflow, postflow, burnback, spot, and stitch-delay timers are available independently for MIG and spool gun use.

Auto-Gun Detect

The machine recalls voltage, wire feed speed, and timer settings when the operator triggers the MIG gun, spool gun, or Miller push-pull gun.

Direct Aluminum Gun Support

Spoolmate 200, Spoolmatic 15A/30A, and XR push-pull guns connect directly without an extra module.

EZ-Access Consumables

Flip-down compartment stores consumables and the parameter chart on the front of the machine.

Machine Packages

Stock numberCatalog package
907321 208/240 V, 60 Hz
951960 208/240 V, 60 Hz package with Spoolmatic 30A, dual cylinder rack, elevated gun and cable rack, and second regulator for spool gun
907322 230/460/575 V, 60 Hz
951961 230/460/575 V, 60 Hz package with Spoolmatic 30A, dual cylinder rack, elevated gun and cable rack, and second regulator for spool gun

Compatible Accessories

Dual EZ-Change Low Cylinder Rack with Elevated Gun and Cable Rack

300337 Dual cylinder rack with cable storage; allows cylinders to roll on and off the rack with no lifting.

Buy link unavailable.

Elevated Gun and Cable Rack

300335 For use with the single cylinder rack; keeps spool gun cables off the floor.

Buy link unavailable.

Protective Cover

195142 Machine cover with side pocket; not for use with the dual cylinder rack or elevated gun and cable rack.

Buy on Amazon

Argon/Mixed Gas Regulator

31-50-580 Flowmeter regulator path listed with the Millermatic 252 accessory table.

Open support page

Full KVA Adapter Cord

300517 Field adapter from NEMA 14-50P to NEMA 6-50R for using an engine drive 120/240 V plug with common Millermatic and Spectrum 240 V plugs.

Buy link unavailable.

Millermatic 252 V-Grooved Drive Roll Kits

204579 / 087131 / 079594 / 079595 / 079596 Solid-wire drive roll kits for .024, .030, .030/.035, .035, and .045 in. wire.

Open support page

Millermatic 252 V-Knurled Drive Roll Kits

079606 / 079607 Flux-cored or difficult-to-feed wire drive roll kits for .035 and .045 in. wire.

Open support page

Millermatic 252 U-Grooved Drive Roll Kits

044749 / 079599 Aluminum wire drive roll kits for .035 and .047 in. wire.

Open support page

Compatible Guns / Torches

MDX-250 MIG Gun with AccuLock MDX Consumables

1770035 / 1770036 / 1770037 10 ft., 12 ft., and 15 ft. 250-amp MDX-250 gun options for .030/.035 in. wire; 1770037 is the standard included length.

Open support page

MDX-250 MIG Gun with Industrial AccuLock S Consumables

1770041 / 1770042 / 1770043 Industrial 250-amp MDX-250 gun path for .035/.045 in. wire with AccuLock S consumables.

Open support page

Spoolmate 200 Spool Gun

300497 20 ft. spool gun rated 160 A at 60 percent duty cycle for .030 - .035 in. aluminum wire and .023 - .035 in. steel/stainless wire.

Open support page

Spoolmatic 15A Spool Gun

195156 15 ft. air-cooled one-pound aluminum spool gun rated 200 A at 100 percent duty cycle.

Open support page

Spoolmatic 30A Spool Gun

130831 30 ft. air-cooled one-pound aluminum spool gun rated 200 A at 100 percent duty cycle.

Open support page

XR-Aluma-Pro Lite Push-Pull Gun

300948 25 ft. air-cooled gooseneck-style push-pull gun for .030 - .047 in. aluminum wire, rated 175 A at 60 percent duty cycle.

Open support page

XR-Aluma-Pro Push-Pull Gun

301568 / 301569 15 ft. and 25 ft. air-cooled gooseneck-style push-pull guns for .030 - .047 in. aluminum wire, rated 300 A at 100 percent duty cycle.

Open support page

Optional Spoolmate 200 Head Tubes

300591 / 300592 / 243385 45-degree head tube, 9 in. extension head tube, and 5 in. head tube options for Spoolmate 200.

Open support page

Push-Pull Aluminum Drive Roll and Accessory Kits

195311 / 195313 Accessory kits for .035 and .047 in. aluminum that include Millermatic U-grooved drive rolls, nylon wire guides, and contact tips.

Open support page
Full machine details

Welding Output

  • 200 A at 24 VDC, 60% duty cycle
  • 250 A at 26.5 VDC, 40% duty cycle

Wire Capacity

  • Solid/stainless: .023 - .045 in. (0.6 - 1.2 mm)
  • Flux-cored: .030 - .045 in. (0.8 - 1.2 mm)

Material Capacity

  • Mild steel: 22 ga. (0.8 mm) to 1/2 in. (13 mm)
  • Aluminum: 14 ga. (1.9 mm) to 3/8 in. (9.5 mm)

Included With This Machine

  • 15 ft. (4.6 m), 250-amp MDX-250 MIG gun
  • 10 ft. (3 m) work cable with clamp
  • 10 ft. (3 m) industrial power cord with plug on the 208/240 V model
  • Flow gauge regulator and gas hose for argon or Ar/CO2 mix
  • Factory-installed lowered running gear/cylinder rack
  • .030/.035 in. reversible dual-groove drive rolls
  • Extra contact tips

Dimensions

H: 30 in. (762 mm), W: 19 in. (483 mm), D: 40 in. (1016 mm)

Source: Miller Electric Millermatic 252 Spec Sheet, Issued April 2024, index DC/12.49. Product relationships on this page are kept separate from Amazon monetization data. Amazon buy buttons appear only after the product match, manufacturer, package quantity, and compatibility are verified.
