Spoolmatic 15A/30A family breakdown
Return to the combined Spoolmatic family lookup.
Open support page
MIG spool gun support

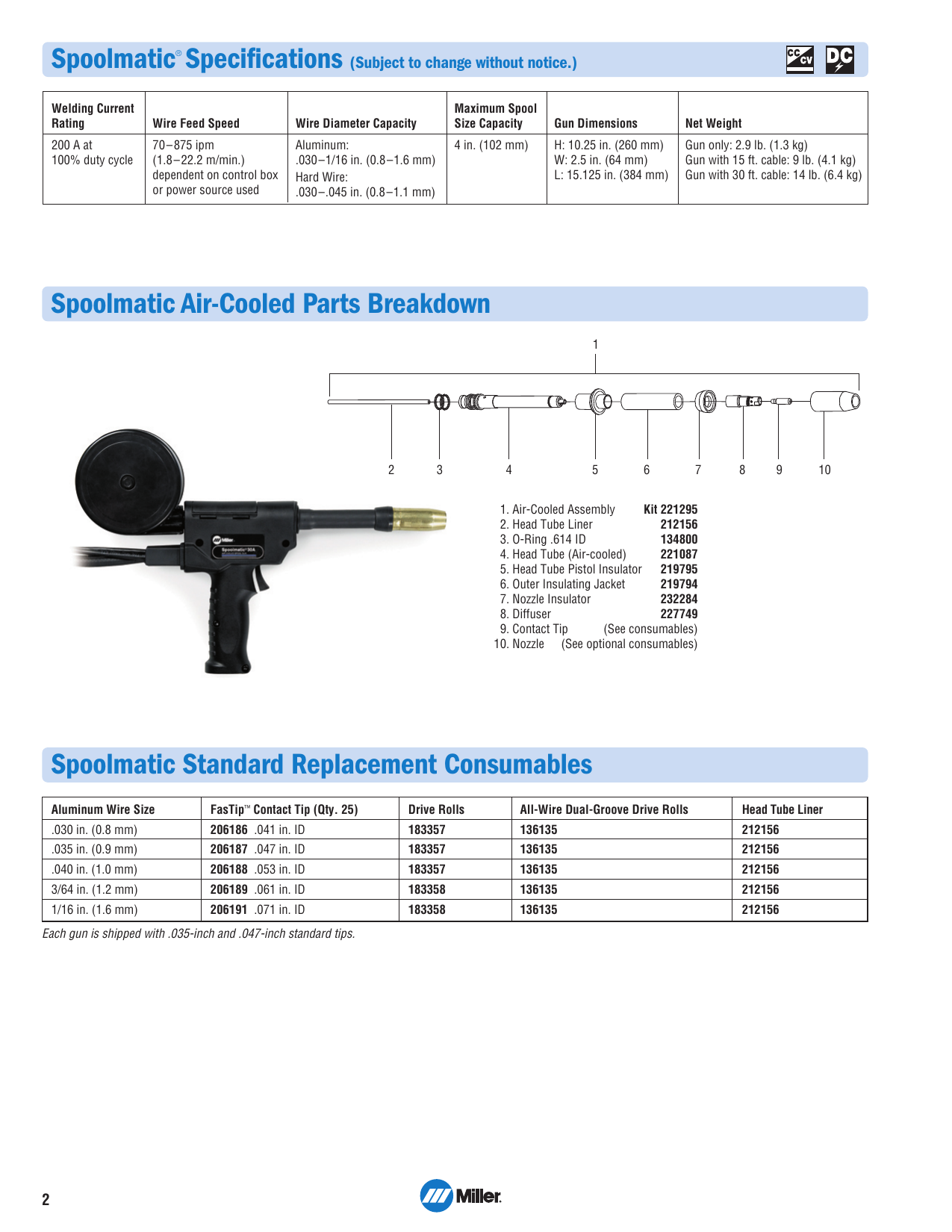

Miller Spoolmatic 15A spool gun support with source-backed specifications, compatible Miller machine paths, setup controls, and the parts breakdown below. Stock number: 195156. Cable length: 15 ft. (4.6 m). Use this page to match the gun model before checking contact tips, nozzles, drive rolls, liners, and head tube parts.
As an Amazon Associate, I earn from qualifying purchases.
| Item # | Part # | Description | Qty | Buy |
|---|---|---|---|---|
| Gun | 195156 |
Spoolmatic 15A, 15 ft. (4.6 m), 200 A at 100% duty cycle
|
1 | N/A |
| 1 | 221295 |
Air-cooled assembly kit
|
1 | Amazon link: Needs verification. |
| 2 | 212156 |
Head tube liner
|
1 | View on Amazon |
| 3 | 134800 |
O-ring .614 ID
|
1 | View on Amazon |
| 4 | 221087 |
Head tube, air-cooled
|
1 | View on Amazon |
| 5 | 219795 |
Head tube pistol insulator
|
1 | View on Amazon |
| 6 | 219794 |
Outer insulating jacket
|
1 | View on Amazon |
| 7 | 232284 |
Nozzle insulator
|
1 | View on Amazon |
| 8 | 227749 |
Diffuser, 1/8 in. tip recess for heavy-duty FasTip contact tips
|
1 | View on Amazon |
| 9 | 206186 |
FasTip contact tip .041 in. ID for .030 in. aluminum wire
|
25 per package | View on Amazon |
| 9 | 206187 |
FasTip contact tip .047 in. ID for .035 in. aluminum wire
|
25 per package | View on Amazon |
| 9 | 206188 |
FasTip contact tip .053 in. ID for .040 in. aluminum wire
|
25 per package | View on Amazon |
| 9 | 206189 |
FasTip contact tip .061 in. ID for 3/64 in. aluminum wire
|
25 per package | View on Amazon |
| 9 | 206191 |
FasTip contact tip .071 in. ID for 1/16 in. aluminum wire
|
25 per package | Amazon link: Needs verification. |
| 10 | 199610 |
Screw-on brass nozzle, 1/2 in. orifice, tapered
|
1 | View on Amazon |
| 10 | 199611 |
Screw-on brass nozzle, 3/4 in. orifice, straight
|
1 | View on Amazon |
| 10 | 199613 |
Screw-on brass nozzle, 5/8 in. orifice, tapered
|
1 | View on Amazon |
| Drive | 183357 |
Drive roll for .030, .035, and .040 in. aluminum wire
|
1 | View on Amazon |
| Drive | 183358 |
Drive roll for 3/64 and 1/16 in. aluminum wire
|
1 | Amazon link: Needs verification. |
| Drive | 136135 |
All-wire dual-groove drive roll
|
1 | View on Amazon |
| Control | 137549 |
WC-24 weld control for Spoolmatic guns
|
1 | View on Amazon |
| Control | 137546 |
WC-115A weld control without contactor for Spoolmatic guns
|
1 | N/A |
| Control | 137546011 |
WC-115A weld control with contactor for Spoolmatic guns
|
1 | N/A |
Related consumables
Return to the combined Spoolmatic family lookup.
Open support pageOpen the other Spoolmatic cable length.
Open support pageLight industrial aluminum spool gun path.
Open support pagePush-pull aluminum gun path.
Open support pageMachine path connected to this spool gun family.
Open machine pageMachine path connected to this spool gun family.
Open machine pageMachine path connected to this spool gun family.
Open machine page
MIG spool gun support

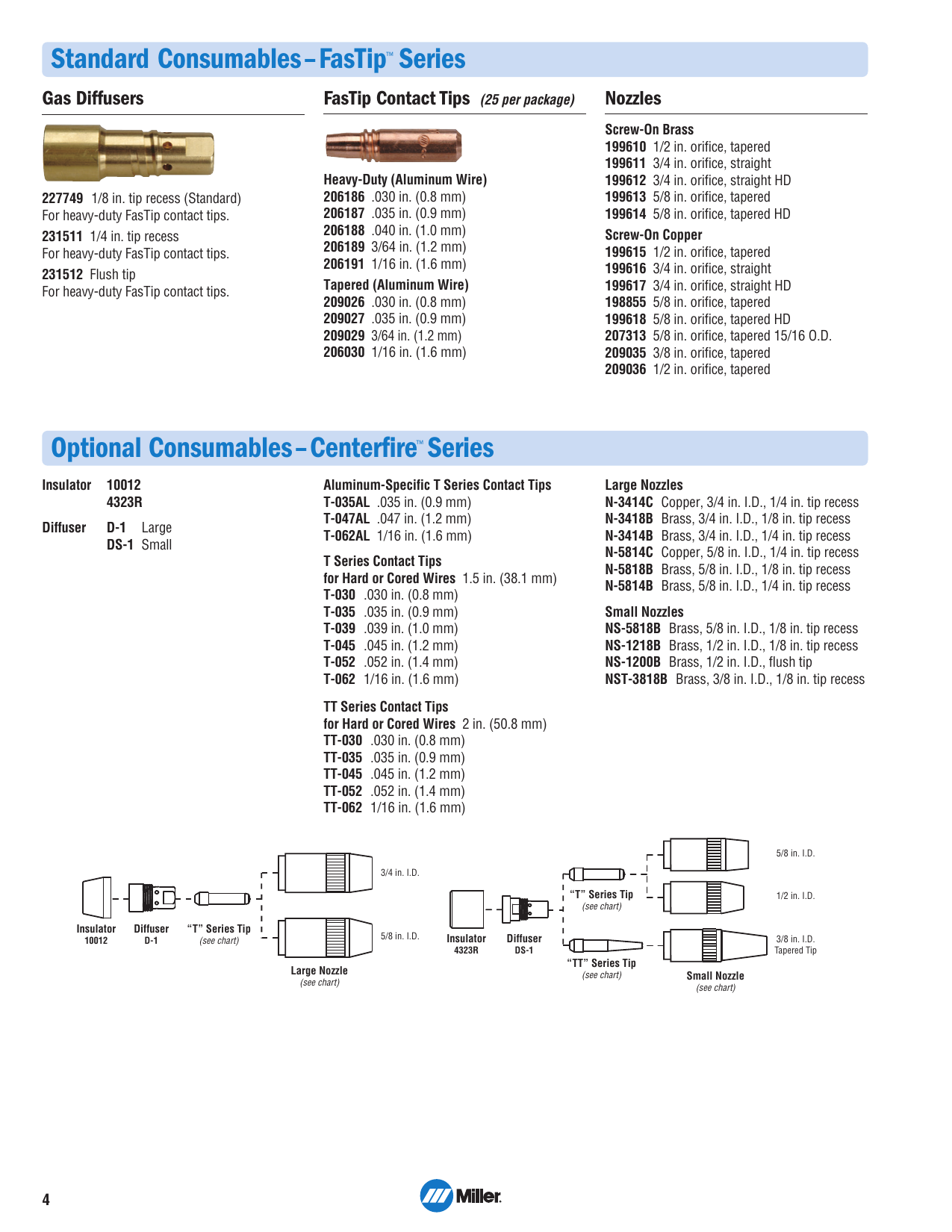

FasTip diffusers, contact tips, and nozzles from the April 2023 Spoolmatic and XR-Pistol Miller sheet.
As an Amazon Associate, I earn from qualifying purchases.
| Item # | Part # | Description | Qty | Buy |
|---|---|---|---|---|
| Diffuser | 227749 |
Gas diffuser, 1/8 in. tip recess
|
1 | View on Amazon |
| Diffuser | 231511 |
Gas diffuser, 1/4 in. tip recess
|
1 | Amazon link: Needs verification. |
| Diffuser | 231512 |
Gas diffuser, flush tip
|
1 | Amazon link: Needs verification. |
| Tip | 206186 |
Heavy-duty FasTip contact tip for .030 in. aluminum wire
|
25 per package | View on Amazon |
| Tip | 206187 |
Heavy-duty FasTip contact tip for .035 in. aluminum wire
|
25 per package | View on Amazon |
| Tip | 206188 |
Heavy-duty FasTip contact tip for .040 in. aluminum wire
|
25 per package | View on Amazon |
| Tip | 206189 |
Heavy-duty FasTip contact tip for 3/64 in. aluminum wire
|
25 per package | View on Amazon |
| Tip | 206191 |
Heavy-duty FasTip contact tip for 1/16 in. aluminum wire
|
25 per package | Amazon link: Needs verification. |
| Tip | 209026 |
Tapered FasTip contact tip for .030 in. aluminum wire
|
25 per package | Amazon link: Needs verification. |
| Tip | 209027 |
Tapered FasTip contact tip for .035 in. aluminum wire
|
25 per package | Amazon link: Needs verification. |
| Tip | 209029 |
Tapered FasTip contact tip for 3/64 in. aluminum wire
|
25 per package | Amazon link: Needs verification. |
| Tip | 206030 |
Tapered FasTip contact tip for 1/16 in. aluminum wire
|
25 per package | Amazon link: Needs verification. |
| Nozzle | 199610 |
Screw-on brass nozzle, 1/2 in. orifice, tapered
|
1 | View on Amazon |
| Nozzle | 199611 |
Screw-on brass nozzle, 3/4 in. orifice, straight
|
1 | View on Amazon |
| Nozzle | 199612 |
Screw-on brass nozzle, 3/4 in. orifice, straight heavy duty
|
1 | View on Amazon |
| Nozzle | 199613 |
Screw-on brass nozzle, 5/8 in. orifice, tapered
|
1 | View on Amazon |
| Nozzle | 199614 |
Screw-on brass nozzle, 5/8 in. orifice, tapered heavy duty
|
1 | View on Amazon |
| Nozzle | 199615 |
Screw-on copper nozzle, 1/2 in. orifice, tapered
|
1 | View on Amazon |
| Nozzle | 199616 |
Screw-on copper nozzle, 3/4 in. orifice, straight
|
1 | View on Amazon |
| Nozzle | 199617 |
Screw-on copper nozzle, 3/4 in. orifice, straight heavy duty
|
1 | View on Amazon |
| Nozzle | 198855 |
Screw-on copper nozzle, 5/8 in. orifice, tapered
|
1 | View on Amazon |
| Nozzle | 199618 |
Screw-on copper nozzle, 5/8 in. orifice, tapered heavy duty
|
1 | View on Amazon |
| Nozzle | 207313 |
Screw-on copper nozzle, 5/8 in. orifice, tapered, 15/16 in. OD
|
1 | Amazon link: Needs verification. |
| Nozzle | 209035 |
Screw-on copper nozzle, 3/8 in. orifice, tapered
|
1 | View on Amazon |
| Nozzle | 209036 |
Screw-on copper nozzle, 1/2 in. orifice, tapered
|
1 | View on Amazon |
Related consumables
Return to the combined Spoolmatic family lookup.
Open support pageOpen the other Spoolmatic cable length.
Open support pageLight industrial aluminum spool gun path.
Open support pagePush-pull aluminum gun path.
Open support pageMachine path connected to this spool gun family.
Open machine pageMachine path connected to this spool gun family.
Open machine pageMachine path connected to this spool gun family.
Open machine page
MIG spool gun support
Optional Bernard Centerfire insulators, diffusers, contact tips, and nozzles listed for the Spoolmatic head tube path.
As an Amazon Associate, I earn from qualifying purchases.
| Item # | Part # | Description | Qty | Buy |
|---|---|---|---|---|
| Insulator | 10012 |
Bernard Centerfire large insulator
|
1 | Amazon link: Needs verification. |
| Insulator | 4323R |
Bernard Centerfire small insulator
|
1 | View on Amazon |
| Diffuser | D-1 |
Bernard Centerfire large diffuser
|
1 | Amazon link: Needs verification. |
| Diffuser | DS-1 |
Bernard Centerfire small diffuser
|
1 | View on Amazon |
| Tip | T-035AL |
Aluminum-specific T Series contact tip, .035 in.
|
1 | View on Amazon |
| Tip | T-047AL |
Aluminum-specific T Series contact tip, .047 in.
|
1 | View on Amazon |
| Tip | T-062AL |
Aluminum-specific T Series contact tip, 1/16 in.
|
1 | View on Amazon |
| Tip | T-030 |
T Series contact tip for hard or cored wire, .030 in.
|
1 | Amazon link: Needs verification. |
| Tip | T-035 |
T Series contact tip for hard or cored wire, .035 in.
|
1 | View on Amazon |
| Tip | T-039 |
T Series contact tip for hard or cored wire, .039 in.
|
1 | Amazon link: Needs verification. |
| Tip | T-045 |
T Series contact tip for hard or cored wire, .045 in.
|
1 | View on Amazon |
| Tip | T-052 |
T Series contact tip for hard or cored wire, .052 in.
|
1 | Amazon link: Needs verification. |
| Tip | T-062 |
T Series contact tip for hard or cored wire, 1/16 in.
|
1 | View on Amazon |
| Tip | TT-030 |
TT Series contact tip for hard or cored wire, .030 in.
|
1 | Amazon link: Needs verification. |
| Tip | TT-035 |
TT Series contact tip for hard or cored wire, .035 in.
|
1 | Amazon link: Needs verification. |
| Tip | TT-045 |
TT Series contact tip for hard or cored wire, .045 in.
|
1 | Amazon link: Needs verification. |
| Tip | TT-052 |
TT Series contact tip for hard or cored wire, .052 in.
|
1 | Amazon link: Needs verification. |
| Tip | TT-062 |
TT Series contact tip for hard or cored wire, 1/16 in.
|
1 | Amazon link: Needs verification. |
| Nozzle | N-3414C |
Large copper nozzle, 3/4 in. ID, 1/4 in. tip recess
|
1 | Amazon link: Needs verification. |
| Nozzle | N-3418B |
Large brass nozzle, 3/4 in. ID, 1/8 in. tip recess
|
1 | Amazon link: Needs verification. |
| Nozzle | N-3414B |
Large brass nozzle, 3/4 in. ID, 1/4 in. tip recess
|
1 | Amazon link: Needs verification. |
| Nozzle | N-5814C |
Large copper nozzle, 5/8 in. ID, 1/4 in. tip recess
|
1 | Amazon link: Needs verification. |
| Nozzle | N-5818B |
Large brass nozzle, 5/8 in. ID, 1/8 in. tip recess
|
1 | Amazon link: Needs verification. |
| Nozzle | N-5814B |
Large brass nozzle, 5/8 in. ID, 1/4 in. tip recess
|
1 | Amazon link: Needs verification. |
| Nozzle | NS-5818B |
Small brass nozzle, 5/8 in. ID, 1/8 in. tip recess
|
1 | Amazon link: Needs verification. |
| Nozzle | NS-1218B |
Small brass nozzle, 1/2 in. ID, 1/8 in. tip recess
|
1 | Amazon link: Needs verification. |
| Nozzle | NS-1200B |
Small brass nozzle, 1/2 in. ID, flush tip
|
1 | Amazon link: Needs verification. |
| Nozzle | NST-3818B |
Small brass nozzle, 3/8 in. ID, 1/8 in. tip recess
|
1 | Amazon link: Needs verification. |
Related consumables
Return to the combined Spoolmatic family lookup.
Open support pageOpen the other Spoolmatic cable length.
Open support pageLight industrial aluminum spool gun path.
Open support pagePush-pull aluminum gun path.
Open support pageMachine path connected to this spool gun family.
Open machine pageMachine path connected to this spool gun family.
Open machine pageMachine path connected to this spool gun family.
Open machine page
MIG spool gun support

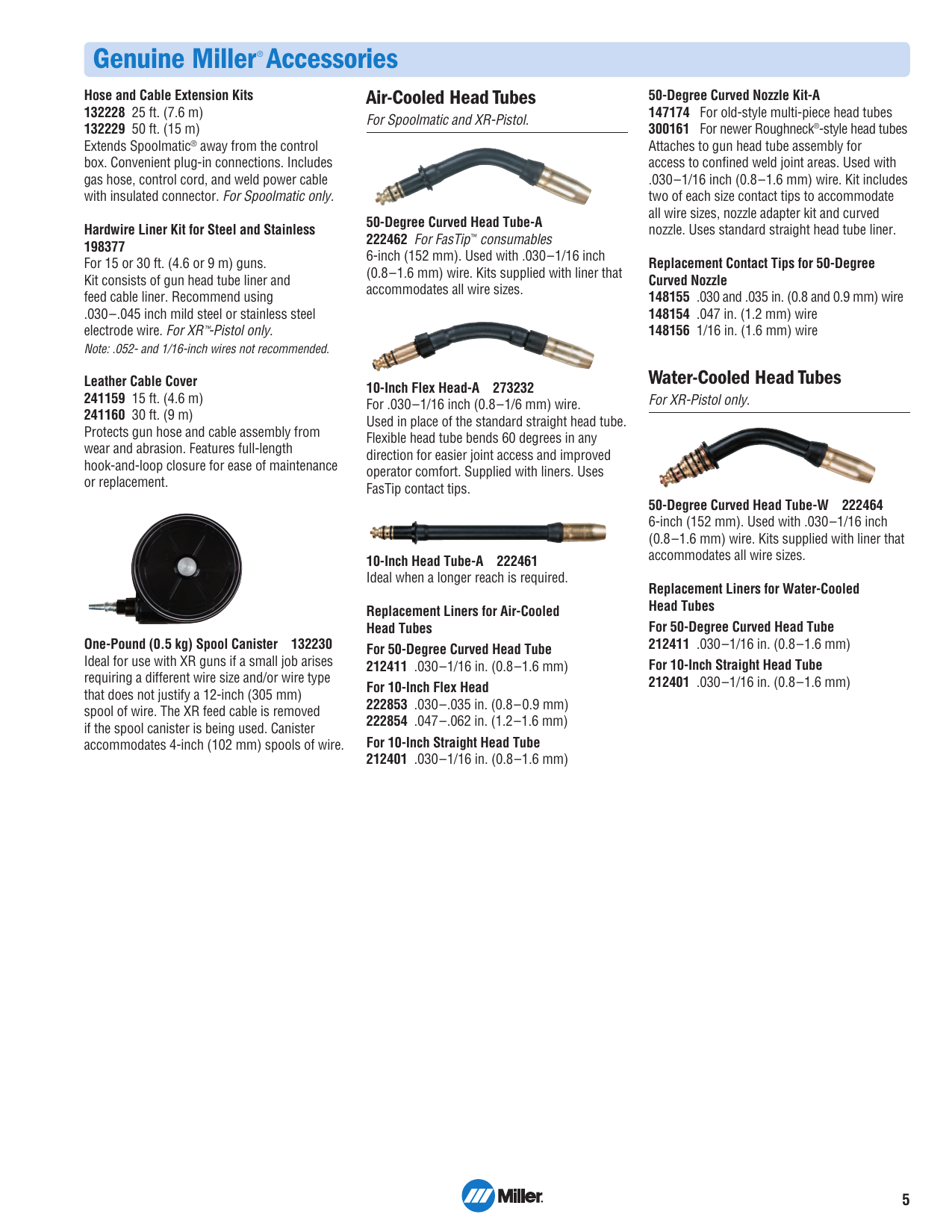

Extension kits, leather covers, canister, head tubes, nozzle kits, contact tips, and replacement liners from the April 2023 sheet.
As an Amazon Associate, I earn from qualifying purchases.
| Item # | Part # | Description | Qty | Buy |
|---|---|---|---|---|
| Extension | 132228 |
Hose and cable extension kit, 25 ft.; Spoolmatic only
|
1 | Amazon link: Needs verification. |
| Extension | 132229 |
Hose and cable extension kit, 50 ft.; Spoolmatic only
|
1 | Amazon link: Needs verification. |
| Cover | 241159 |
Leather cable cover, 15 ft.
|
1 | Amazon link: Needs verification. |
| Cover | 241160 |
Leather cable cover, 30 ft.
|
1 | Amazon link: Needs verification. |
| Canister | 132230 |
One-pound spool canister for small wire jobs
|
1 | Amazon link: Needs verification. |
| Head Tube | 222462 |
50-degree curved head tube, air-cooled, for FasTip consumables
|
1 | Amazon link: Needs verification. |
| Head Tube | 273232 |
10-inch flex head, air-cooled
|
1 | View on Amazon |
| Head Tube | 222461 |
10-inch straight head tube, air-cooled
|
1 | Amazon link: Needs verification. |
| Nozzle Kit | 147174 |
50-degree curved nozzle kit for old-style multi-piece head tubes
|
1 | View on Amazon |
| Nozzle Kit | 300161 |
50-degree curved nozzle kit for newer Roughneck-style head tubes
|
1 | Amazon link: Needs verification. |
| Tip | 148155 |
Replacement contact tips for 50-degree curved nozzle, .030 and .035 in. wire
|
1 | Amazon link: Needs verification. |
| Tip | 148154 |
Replacement contact tips for 50-degree curved nozzle, .047 in. wire
|
1 | Amazon link: Needs verification. |
| Tip | 148156 |
Replacement contact tips for 50-degree curved nozzle, 1/16 in. wire
|
1 | Amazon link: Needs verification. |
| Liner | 212411 |
Replacement liner for 50-degree curved head tube
|
1 | View on Amazon |
| Liner | 222853 |
Replacement liner for 10-inch flex head
|
1 | Amazon link: Needs verification. |
| Liner | 222854 |
Replacement liner for 10-inch flex head
|
1 | Amazon link: Needs verification. |
| Liner | 212401 |
Replacement liner for 10-inch straight head tube
|
1 | Amazon link: Needs verification. |
Related consumables
Return to the combined Spoolmatic family lookup.
Open support pageOpen the other Spoolmatic cable length.
Open support pageLight industrial aluminum spool gun path.
Open support pagePush-pull aluminum gun path.
Open support pageMachine path connected to this spool gun family.
Open machine pageMachine path connected to this spool gun family.
Open machine pageMachine path connected to this spool gun family.
Open machine page
MIG spool gun support
Machine hookup accessories and direct-connect notes from the Miller spool gun compatibility chart. These are machine connection parts, not internal gun service parts.
As an Amazon Associate, I earn from qualifying purchases.
| Item # | Part # | Description | Qty | Buy |
|---|---|---|---|---|
| Accessory | 137549 |
WC-24 Weld Control
|
1 | View on Amazon |
| Accessory | 137546011 |
WC-115A With Contactor Kit
|
1 | N/A |
| Accessory | 195287 |
Adapter Cable
|
1 | View on Amazon |
| Machine | |
Direct-connect machine paths
|
N/A |
Related consumables
Return to the combined Spoolmatic family lookup.
Open support pageOpen the other Spoolmatic cable length.
Open support pageLight industrial aluminum spool gun path.
Open support pagePush-pull aluminum gun path.
Open support pageMachine path connected to this spool gun family.
Open machine pageMachine path connected to this spool gun family.
Open machine pageMachine path connected to this spool gun family.
Open machine page
