MIG spool gun support

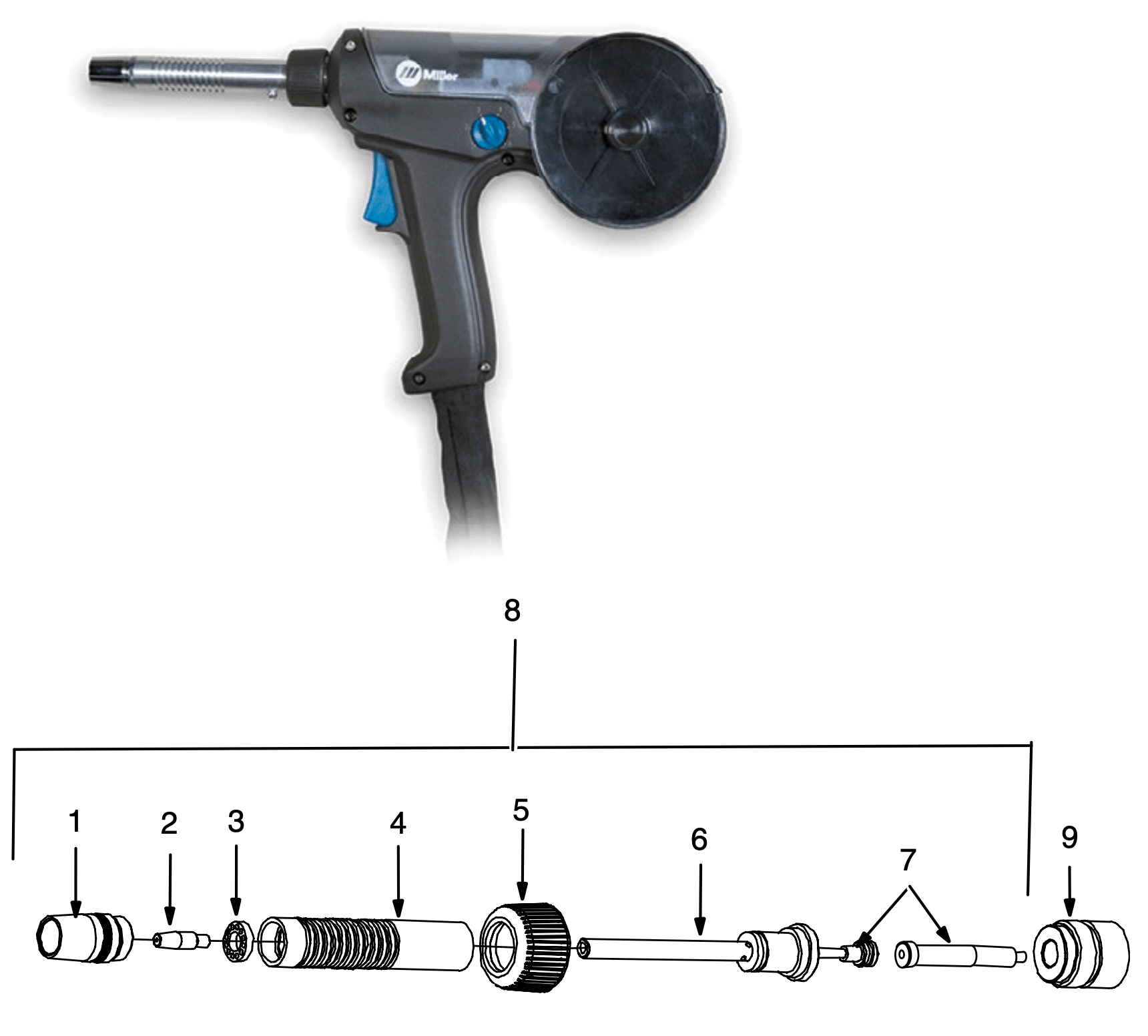

Miller Spoolmate 200 Light-Duty Barrel Consumables

Use this section for the light-duty barrel front-end consumables and barrel components.

Item number lookup

Parts List

As an Amazon Associate, I earn from qualifying purchases.

Item # Part # Description Qty Buy
Gun 300497
Spoolmate 200, 20 ft., Catalog lists light industrial aluminum fabrication
gun assembly Spoolmate 200 Light-Duty Barrel gun models Wire size: .023 - .035 in. (0.6 - 0.9 mm)
Spoolmate 200 Light-Duty Barrel family
1 N/A
Gun 300497
Spoolmate 200 Spool Gun, 20 ft.
gun assembly Spoolmate 200 Light-Duty Barrel consumables and replacement parts Originally sold with light-duty barrels; newer service paths may use the heavy-duty barrel configuration.
Spoolmate 200 Light-Duty Barrel family
1 N/A
1 186405
Nozzle, screw type .562 bore x 1.437 length
nozzle Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
2 199730
Contact Tip .023, pack of 5
contact tip Spoolmate 200 Light-Duty Barrel consumables and replacement parts Wire size: .023 in.
Spoolmate 200 Light-Duty Barrel family
Amazon link: Needs verification.
2 186419
Contact Tip .030, pack of 5
contact tip Spoolmate 200 Light-Duty Barrel consumables and replacement parts Wire size: .030 in.
Spoolmate 200 Light-Duty Barrel family
Amazon link: Needs verification.
2 186406
Contact Tip .035, pack of 5
contact tip Spoolmate 200 Light-Duty Barrel consumables and replacement parts Wire size: .035 in.
Spoolmate 200 Light-Duty Barrel family
Amazon link: Needs verification.
3 186409
Gas Diffuser
diffuser Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
4 243294
Barrel
barrel Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
4 300592
9 in. Barrel
barrel Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
4 300591
Curved Barrel
barrel Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
5 243383
Locking Nut
retaining hardware Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
6 244880
Head Tube Assembly
head tube Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
7 247351
Kit, Liner with Outlet Guide
liner Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
8 243385
Light-Duty Gun Tube Assembly, Complete
gun tube Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
9 243390
Contact Adapter
adapter Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.

Related consumables

MIG spool gun support

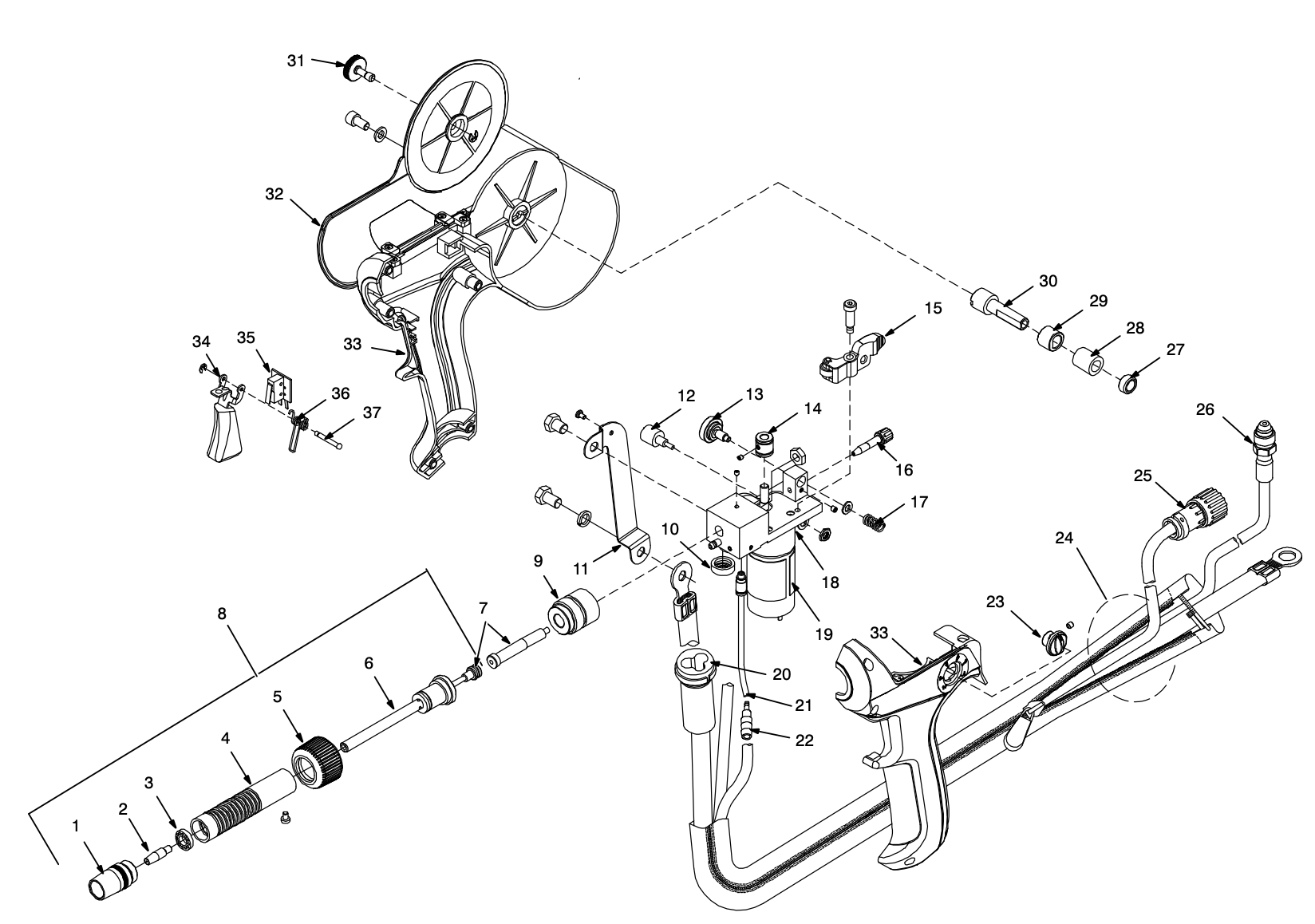

Miller Spoolmate 200 Light-Duty Gun Parts

Use this section for the full light-duty gun body, drive, trigger, cable, and spool-support parts list.

Item number lookup

Parts List

As an Amazon Associate, I earn from qualifying purchases.

Item # Part # Description Qty Buy
Gun 300497
Spoolmate 200, 20 ft., Catalog lists light industrial aluminum fabrication
gun assembly Spoolmate 200 Light-Duty Barrel gun models Wire size: .023 - .035 in. (0.6 - 0.9 mm)
Spoolmate 200 Light-Duty Barrel family
1 N/A
Gun 300497
Spoolmate 200 Spool Gun, 20 ft.
gun assembly Spoolmate 200 Light-Duty Barrel consumables and replacement parts Originally sold with light-duty barrels; newer service paths may use the heavy-duty barrel configuration.
Spoolmate 200 Light-Duty Barrel family
1 N/A
1 186405
Nozzle, screw type .562 bore x 1.437 length
nozzle Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
2 199730
Contact Tip .023, pack of 5
contact tip Spoolmate 200 Light-Duty Barrel consumables and replacement parts Wire size: .023 in.
Spoolmate 200 Light-Duty Barrel family
Amazon link: Needs verification.
2 186419
Contact Tip .030, pack of 5
contact tip Spoolmate 200 Light-Duty Barrel consumables and replacement parts Wire size: .030 in.
Spoolmate 200 Light-Duty Barrel family
Amazon link: Needs verification.
2 186406
Contact Tip .035, pack of 5
contact tip Spoolmate 200 Light-Duty Barrel consumables and replacement parts Wire size: .035 in.
Spoolmate 200 Light-Duty Barrel family
Amazon link: Needs verification.
3 186409
Gas Diffuser
diffuser Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
4 243294
Barrel
barrel Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
4 300592
9 in. Barrel
barrel Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
4 300591
Curved Barrel
barrel Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
5 243383
Locking Nut
retaining hardware Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
6 244880
Head Tube Assembly
head tube Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
7 247351
Kit, Liner with Outlet Guide
liner Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
8 243385
Light-Duty Gun Tube Assembly, Complete
gun tube Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
9 243390
Contact Adapter
adapter Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
10 243391
Seal, Gas Valve
seal Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
11 243392
Bus Bar
electrical Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
12 243393
Potentiometer, 10k Ohm
control Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 N/A
13 243451
Knob, Pressure Adjust
knob Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
14 243452
Drive Roll .030/.035
drive roll Spoolmate 200 Light-Duty Barrel consumables and replacement parts Wire size: .030/.035 in.
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
14 136135
Drive Roll VK Groove .030-1/16 wire
drive roll Spoolmate 200 Light-Duty Barrel consumables and replacement parts Wire size: .030-1/16 in. Optional.
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
15 247347
Press Arm with Idler Bearing
drive system Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
16 243466
Guide, Inlet
wire guide Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
17 243467
Spring, Press Arm
spring Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
18 243470
Housing, Wire Drive
drive system Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
19 243760
Drive Motor / Gear Box
motor Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
20 243491
Strain Relief, Cable
cable support Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
21 243716
Hose, Gas Internal
hose Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
22 243493
Barbed Gas Fitting
gas fitting Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
23 243490
Knob, Wire Speed
knob Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
24 243489
Cable Assembly, 20 ft. with Connector
cable assembly Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
25 217292
Housing Plug and Pins, service kit
connector Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
26 056851
Fitting, hose brass barbed nipple 3/16 tubing
gas fitting Spoolmate 200 Light-Duty Barrel consumables and replacement parts All three item 26 fittings are used together.
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
26 010606
Fitting, hose brass nut .625-18 RH
gas fitting Spoolmate 200 Light-Duty Barrel consumables and replacement parts All three item 26 fittings are used together.
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
26 056108
Fitting, hose brass ferrule .450 ID x .718 length
gas fitting Spoolmate 200 Light-Duty Barrel consumables and replacement parts All three item 26 fittings are used together.
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
27 194626
Adjusting Nut
hardware Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
28 132529
Pad, Brake
brake Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
29 194625
Location Bushing
bushing Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
30 243481
Shaft, Spool
spool support Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
31 243488
Locking Screw, Cover
hardware Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
32 243487
Cover
cover Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
33 243486
Case, Gun Handles RH/LH
handle Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
34 243483
Trigger
trigger Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
35 243482
Circuit Card Assembly, Trigger Switch
control board Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
36 243484
Spring, Trigger
spring Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
37 243485
Pin, Trigger
pin Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.
244657
Hardware Kit, Complete
hardware kit Spoolmate 200 Light-Duty Barrel consumables and replacement parts
Spoolmate 200 Light-Duty Barrel family
1 Amazon link: Needs verification.

Related consumables

Machine connection notes

Spoolmate 200 Connection Chart

Power SourceEffective Serial NumberSpoolmate 200
Millermatic 212 Auto-Set, 251 and 252 All serial numbers Direct connect
Millermatic 210 and 212 All serial numbers Need adapter cable 195287; wire feed speed controlled at the machine
Multimatic 235 All serial numbers Direct connect
Miller CV power sources supplying 24 VAC and 14-pin receptacles All serial numbers WC-24 weld control 137549
