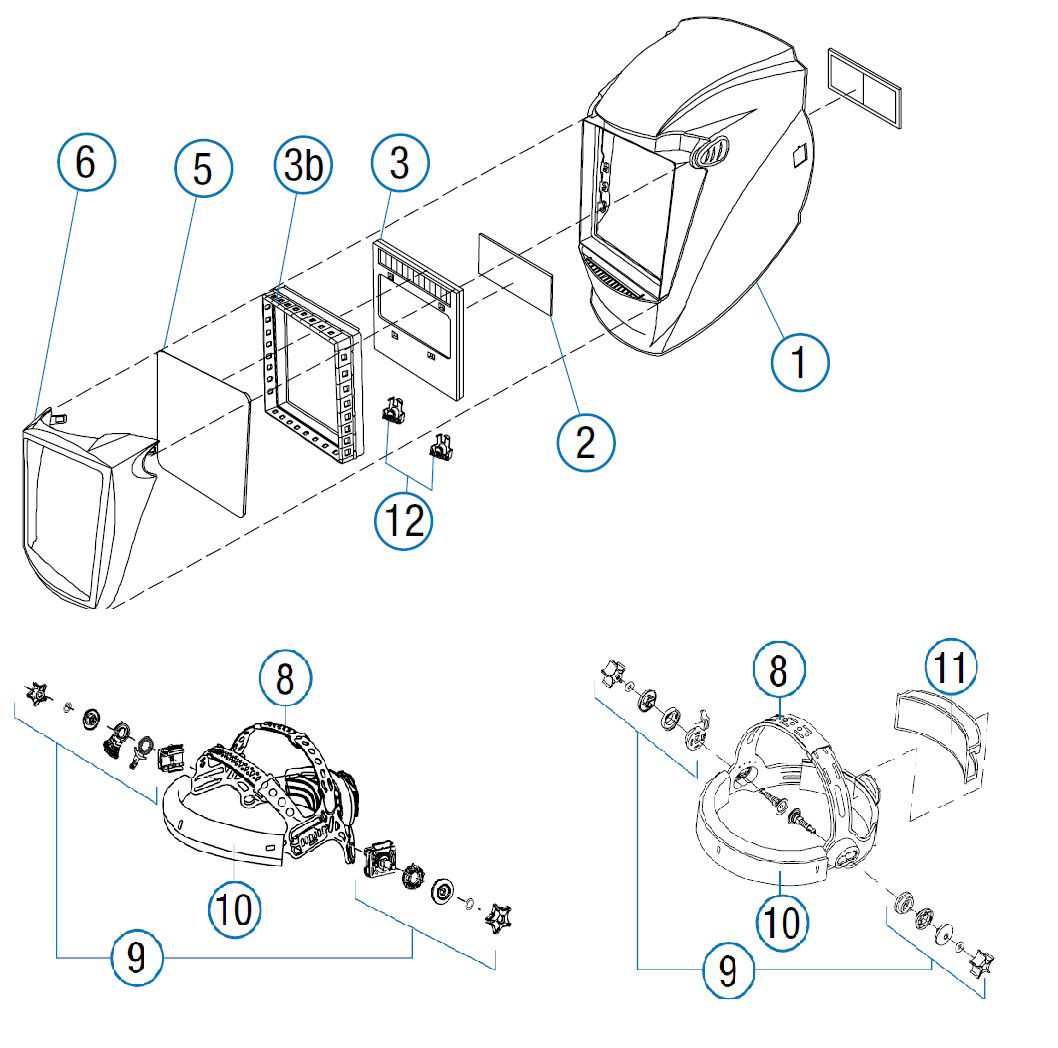

Miller Titanium 1600 / 7300 / 9400 helmet parts diagram for matching shell, lens, headgear, cover lens, battery, and accessory replacement parts by item number. If you searched for a Miller welder parts diagram, use the routing block below to move to machine support.
This page is a Miller helmet parts diagram, not a welder machine diagram. For Miller welder machine parts, start with Miller support or the accessory lookup, then open the matching machine, gun, torch, or helmet page.
Search shortcut
This is a Miller helmet parts diagram, not a welder machine diagram. Use these paths for Miller welder parts, MillerWelds parts, and machine support before buying.
Start here for broad Miller welder parts diagram searches.
Open Miller supportUse for Miller parts, MillerWelds parts, and accessory routing.
Open parts lookupOpen when the part belongs to a welder or plasma machine instead of a helmet.
Open machine supportAs an Amazon Associate, I earn from qualifying purchases.
| Item # | Part # | Description | Qty | Buy |
|---|---|---|---|---|
| 1 | 243530 / 258601 |
Helmet Shell, Titanium (Quick Release)
|
Buy link unavailable. | |
| 2 | 235628 |
Inside Lens Cover 5-1/4" x 4-1/2" (5 Per Package)
|
pk of 5 | Check Price on Amazon |
| 2 | 770237 |
Inside Lens Cover 4-1/4" x 2" (5 Per Package)
|
pk of 5 | Check Price on Amazon |
| 2 | 216327 |
Inside Lens Cover 4-1/2" x 2-1/2" (5 Per Package)
|
pk of 5 | Check Price on Amazon |
| 3 | 245816 / 256358 / 245817 -n/a / 256360 / 256359 |
Auto Darken Lens Assembly
|
Buy link unavailable. Check Price on Amazon | |
| 3 | 235630 |
Filter Plate
|
Check Price on Amazon | |
| 3b | 245813 / 245814 / 241977 |
Lens Gasket Assembly (Quick Release)
|
245813: View on Amazon 245814: View on Amazon 241977: View on Amazon | |
| 5 | 216326 |
Front Lens Cover 4-11/16" x 5-5/8" (5 Per Package)
|
pk of 5 | Check Price on Amazon |
| 6 | 243396 |
Front Lens Holder
|
Check Price on Amazon | |
| 8 | 770246 / 256174 |
Ratchet Headgear Assembly (Includes #9 & #10)
|
770246: View on Amazon 256174: View on Amazon | |
| 9 | 770248 / 256178 |
Adjustment Angle/Stop Hardware Kit
|
770248: View on Amazon 256178: View on Amazon | |
| 10 | 770249 |
Fabric Headband
|
Check Price on Amazon | |
079975 |
Replacement O-rings for 256178 (5pk)
|
Check Price on Amazon | ||
| 11 | 216336 |
Comfort Cushion
|
Check Price on Amazon | |
| 12 | 216339 |
Battery Tray, Kit (Left/Right)
|
Check Price on Amazon | |
217043 |
Battery, Lithium CR2450 (Not Shown) (2 Required)
|
Check Price on Amazon | ||
| 15 | 256179 |
External Grind Replacement Button
|
Check Price on Amazon |
Related consumables
Browse more Miller Electric PPE support paths.
Open PPE support
Match the part number, machine model, gun or torch family, package quantity, and generation before buying. Amazon links are convenience links only, not compatibility proof.
