Steel MIG guns
Miller MIGmatic M-100 / M-150 MIG Guns
M-100 and M-150 are light industrial Miller MIGmatic guns. Miller lists an MDX consumables conversion kit that lets M-100 and M-150 front-end nozzles and tips move toward the MDX standard-duty consumable family.
Light industrial
Steel
catalog current legacy bridge
Wire Capacity
.023 - .045 in. (0.6 - 1.2 mm)
Cable Lengths
10 ft. for M-100; 15 ft. for M-150 in the full-line catalog
Compatible Machine Paths
Millermatic 211 PRO
Open support pageMultimatic 215 PRO
Open support pageMultimatic 220 AC/DC
Open support pageLifecycle and Replacement Notes
- M-10 / M-15 are earlier legacy guns.
- M-100 / M-150 are the bridge generation for light industrial Miller machines.
- MDX-100 is the current replacement direction for the 142 / 211 class machines.
Gun Models
| Model | Stock # | Cable | Output | Wire size | Consumables | Buy |
|---|---|---|---|---|---|---|
| M-100 | 248282 | 10 ft. (3 m) | 100 A | .023 - .045 in. (0.6 - 1.2 mm) | Amazon link: Needs verification. | |
| M-150 | 249041 | 15 ft. (4.6 m) | 150 A | .023 - .045 in. (0.6 - 1.2 mm) | Amazon link: Needs verification. |
Consumables and Replacement Parts
As an Amazon Associate, I earn from qualifying purchases.

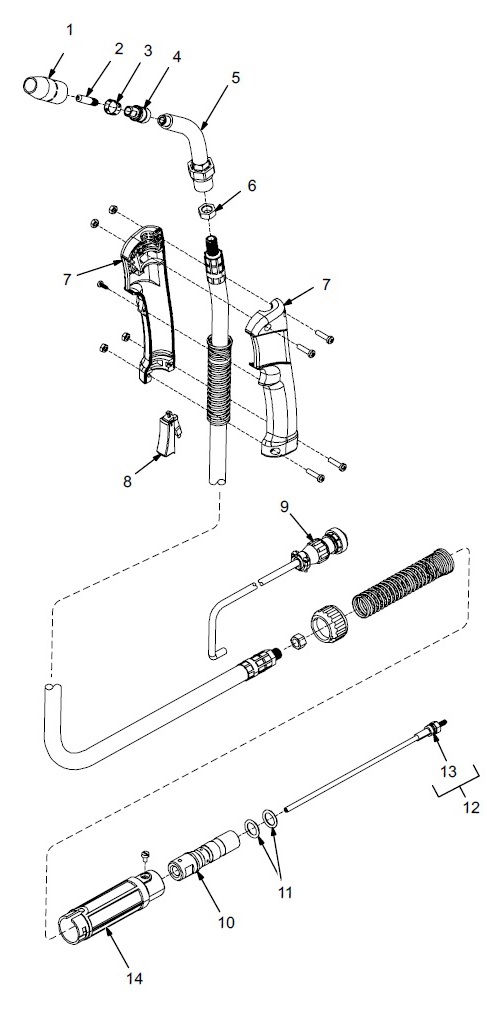

| Item | Part # | Description | Category | Buy |
|---|---|---|---|---|
| Gun | 220606 | M-100 Gun, with friction terminals, 10 ft., 100 A, .030-.035 in. | Gun assembly | -- |
| Gun | 248282 | M-100 Gun, 10 ft. (3 m), 100 A, .030-.035 in. | Gun assembly | Amazon link: Needs verification. |
| Gun | 249039 | M-150 Gun, 10 ft. (3 m), 150 A, .030-.035 in. | Gun assembly | Amazon link: Needs verification. |
| Gun | 249040 | M-150 Gun, 12 ft. (3.7 m), 150 A, .030-.035 in. | Gun assembly | Amazon link: Needs verification. |
| Gun | 249041 | M-150 Gun, 15 ft. (4.6 m), 150 A, .030-.035 in. | Gun assembly | Amazon link: Needs verification. |
| 1 | 246372 | Slip-type nozzle, .500 in. flush copper; 169715 brass optional | Nozzle | Amazon link: Needs verification. |
| 1 | 226190 | Slip-type flux-cored nozzle | Nozzle | View on Amazon |
| 2 | 087299 | .023 in. contact tip, screw type, 1.125 in. | Contact tip | View on Amazon |
| 2 | 000067 | .030 in. contact tip, screw type, 1.125 in. | Contact tip | View on Amazon |
| 2 | 000068 | .035 in. contact tip, screw type, 1.125 in. | Contact tip | View on Amazon |
| 2 | 000069 | .045 in. contact tip, screw type, 1.125 in. | Contact tip | View on Amazon |
| 3 | 170470 | Retaining ring | Retaining hardware | View on Amazon |
| 4 | 169716 | Contact tip adapter | Diffuser / adapter | View on Amazon |
| 5 | 246373 | Tube head | Gooseneck | View on Amazon |
| 7 | 246082 | Handle | Handle | View on Amazon |
| 8 | 246376 | Blue trigger switch | Trigger | View on Amazon |
| 9 | 079878 | Housing plug and pins | Connector | View on Amazon |
| 10 | 242833 | Feeder connector | Power pin | View on Amazon |
| 11 | 079974 | O-ring, .500 ID x .103 cross section rubber | O-ring | Amazon link: Needs verification. |
| 12 | 194010 | .023/.025 in. monocoil liner kit, 15 ft. | Liner | View on Amazon |
| 12 | 194011 | .030-.035 in. monocoil liner kit, 15 ft. | Liner | View on Amazon |
| 12 | 194012 | .035-.045 in. monocoil liner kit, 15 ft. | Liner | View on Amazon |
| 13 | 079975 | O-ring, .187 ID x .103 cross section rubber | O-ring | Amazon link: Needs verification. |
| Conversion | 1880269 | M-100/M-150 to MDX-100 nozzles and tips conversion kit for .030 and .035 in. wire | Conversion kit | -- |
Related Support Paths
MDX-100 MIG Gun
Current replacement direction for the 142 / 211 machine class.
Open support pageMiller M-10/M-15 Gun
Earlier legacy M-Series gun family.
Open support page
Source: Miller Electric 2026 Full-line Catalog (source-bf756b1d2b74, page 22; source-dbbad08c51df, page 32). Amazon links are kept separate from compatibility data.
Miller Catalog Accessories
These accessories are placed here only when the Miller catalog names this machine, torch, feeder, or family path. Verify plug style, voltage, package, and serial-specific details before ordering.
| Part | Accessory | Catalog fitment | Source / path |
|---|---|---|---|
| 234607 | MIGmatic M-Series Gun Consumable Kit | M-100 / M-150 gun kit for .023 in wire. | Catalog p. 125 Open support path |
| 234608 | MIGmatic M-Series Gun Consumable Kit | M-100 / M-150 gun kit for .030 in wire. | Catalog p. 125 Open support path |
| 234609 | MIGmatic M-Series Gun Consumable Kit | M-100 / M-150 gun kit for .035 in wire. | Catalog p. 125 Open support path |
