Applications
- General manufacturing
- General fabrication
- Structural steel fabrication
- Transportation
- Sheet metal fabrication
- Light-gauge tube and sheet
Miller Power Source Lookup

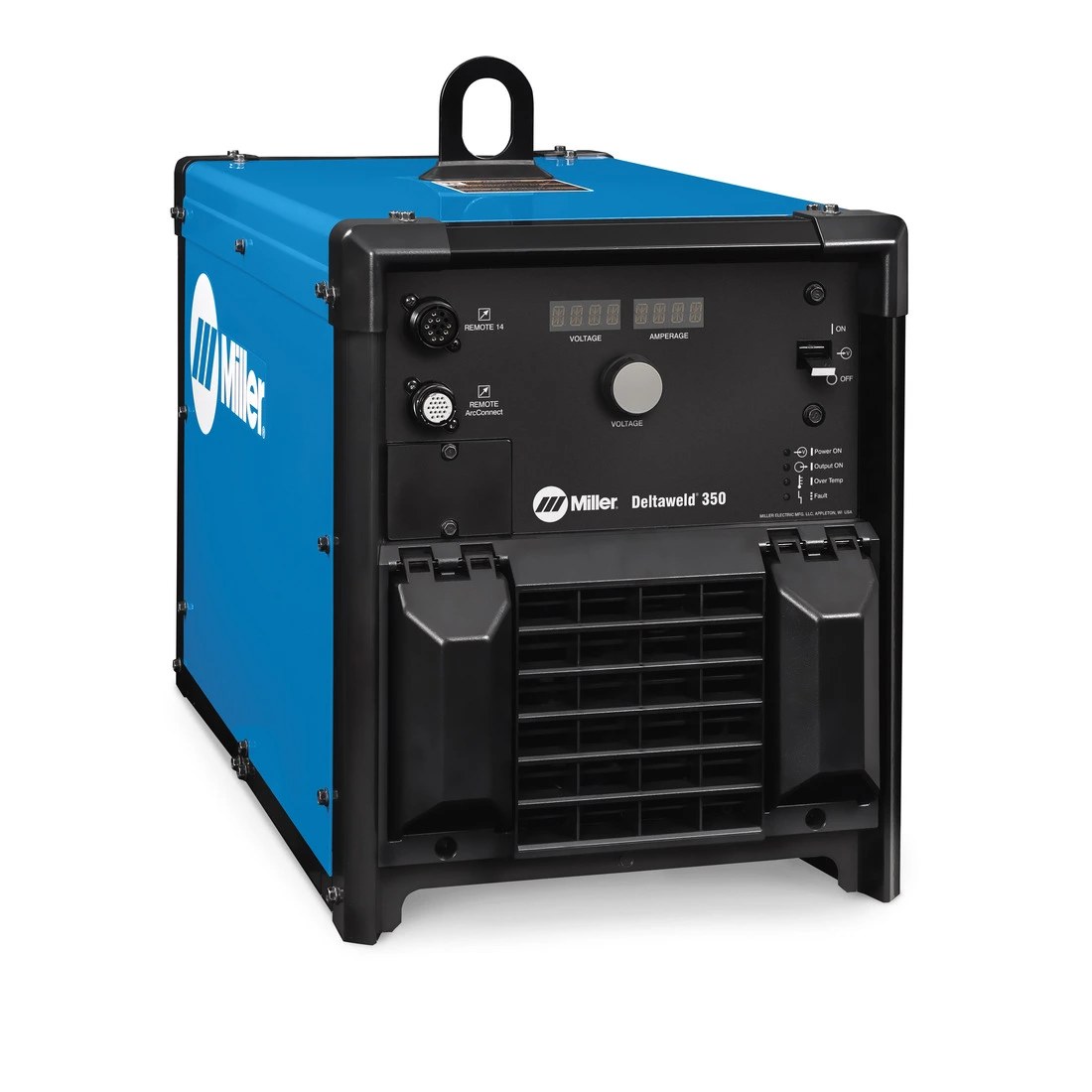

Miller Deltaweld 350 Power Source
Dedicated Deltaweld 350 support for heavy industrial MIG, flux-cored, Intellx MIGRunner packages, ArcConnect feeder paths, and XR Plus push-pull aluminum gun options.
Power source
MIG (GMAW)Flux-cored (FCAW)Accu-Pulse with Intellx Pro / EliteVersa-Pulse, HD MIG, and RMD with Intellx Elite
Spec Sheet Quick Specs
Input And Output
- 208/230/460 V or 575 V, 3-phase, 60 Hz
- 230 V, 1-phase, 60 Hz
- 350 A at 60% duty cycle
- 20-400 A, 10-38 V output range
Feeder Platform
- Intellx Basic for simplified arc control
- Intellx Pro adds EZ-Set, Accu-Pulse, memory buttons, and steel/stainless programs
- Intellx Elite adds expanded weld programs, on-demand graphics, and XR Plus push-pull compatibility
Deltaweld 350 Power Source Stock Numbers
Use the stock number to confirm ArcConnect, 14-pin, meters, Insight, and input-voltage requirements before ordering feeders or package accessories.
| Stock number | Input power | Configuration |
|---|---|---|
| 907747 | 208/230/460 V | ArcConnect |
| 907747001 | 208/230/460 V | ArcConnect, meters, and 14-pin receptacle |
| 907747002 | 208/230/460 V | ArcConnect and Insight |
| 907747003 | 208/230/460 V | ArcConnect, 14-pin receptacle, and Insight |
| 907879 | 575 V | ArcConnect |
| 907879001 | 575 V | ArcConnect and 14-pin receptacle |
| 907879003 | 575 V | ArcConnect, 14-pin receptacle, and Insight |
Feeder And Process Matching
| Feeder path | Best fit | Process notes |
|---|---|---|
| Intellx Basic | Simple Deltaweld MIGRunner and standard MIG / flux-cored work | Arc control with fewer parameter adjustments |
| Intellx Pro | MIGRunner systems that need EZ-Set, Accu-Pulse, memory buttons, and steel/stainless programs | Accu-Pulse is available with Intellx Pro and Elite feeders |
| Intellx Elite | Expanded weld programs, Profile Pulse, XR Plus push-pull guns, and advanced pulse paths | Versa-Pulse, high-deposition MIG, RMD, and XR Plus push-pull compatibility require the Elite path |
MIGRunner Package Contents
- MIGRunner packages include the Deltaweld 350 power source with factory-installed industrial cart and stowaway dual-cylinder rack.
- Packages include single- or dual-wire Intellx feeders and 15 ft Bernard BTB Gun 400 A with AccuLock consumables.
- Packages include feeder swivel kit, gas regulator and hose, 4/0 feeder weld cable, work cable with 600 A C-clamp, 9 ft ArcConnect control/motor cable, drive rolls, and quick-setup guide.
- Push-pull Elite packages add XR-Aluma-Pro Plus push-pull gun support and include aluminum-focused drive roll paths.
XR Plus Push-Pull Paths
The data sheet limits XR Plus push-pull guns to Intellx Elite feeder, Intellx Elite ROI / remote wire drive, or Intellx Elite Swingarc paths.
| Gun family | Stock numbers | Notes |
|---|---|---|
| XR-Aluma-Pro Plus air-cooled | 301575 (15 ft), 301574 (25 ft), 301739 (35 ft) | 300 A at 100% duty cycle; aluminum wire path |
| XR-Aluma-Pro Plus water-cooled | 301576 (15 ft), 301577 (25 ft), 301740 (35 ft) | 400 A at 100% duty cycle; requires gun wire kit 230708 for 1/16 in wire |
| XR-Pistol Plus air-cooled | 300753 (15 ft), 300754 (25 ft) | 200 A at 100% duty cycle / 250 A at 60% duty cycle |
| XR-Pistol Plus water-cooled | 300757 (25 ft) | 400 A at 100% duty cycle; requires gun wire kit 230708 for 1/16 in wire |
Compatibility Snapshot
- The March 2026 data sheet is Deltaweld 350-specific and separates the 350 package list from the broader Deltaweld 350/500 catalog route.
- ArcConnect is standard on Deltaweld 350; selected stock numbers add meters, 14-pin receptacle, Insight, or 575 V input.
- Accu-Pulse requires Intellx Pro or Intellx Elite feeders; Versa-Pulse, high-deposition MIG, RMD, and XR Plus push-pull gun compatibility require Intellx Elite.
- XR Plus push-pull guns are only compatible with Intellx Elite feeder, Intellx Elite ROI / remote wire drive, or Intellx Elite Swingarc boom-mounted feeder.
- Use the exact package or power-source stock number before ordering 14-pin, ArcConnect, Insight, cooler, cart, or dual-wire accessory parts.
Machine Specs
| Model | Stock numbers | Output / speed range | Rated output | Input power | Weight |
|---|---|---|---|---|---|
| Deltaweld 350 | 907747, 907747001, 907747002, 907747003, 907879, 907879001, 907879003 | 20-400 A / 10-38 V | 300 A at 29 VDC, 100%; 350 A at 31.5 VDC, 60%; 425 A at 35.25 VDC, 30% | 208/230/460 V or 575 V, 3-phase; 230 V, 1-phase | 115 lb. (52.2 kg) |
Deltaweld 350 MIGRunner Package Paths
| Stock number | Catalog item | Included feeder / gun path | Manufacturer UPC check | Notes |
|---|---|---|---|---|
| 951000138 | Deltaweld 350 MIGRunner with Single-Wire Intellx Basic PKG,DELTAWELD 350 MIGRUNNER W/INTELLX FEEDER |
Single-wire Intellx Basic feeder with Bernard BTB Gun 400 A | 715959717854 | Includes Deltaweld 350 power source 907747 and AccuLock consumables. |
| 951000139 | Deltaweld 350 MIGRunner with Dual-Wire Intellx Basic PKG,DELTAWELD 350 MIGRUNNER W/DUAL INTELLX FEEDER |
Dual-wire Intellx Basic feeder with two Bernard BTB Gun 400 A guns | 715959717861 | Includes Deltaweld 350 power source 907747 and AccuLock consumables. |
| 951000140 | Deltaweld 350 MIGRunner with Single-Wire Intellx Pro PKG,DELTAWELD 350 MIGRUNNER W/INTELLX PRO |
Single-wire Intellx Pro feeder with Bernard BTB Gun 400 A | 715959717878 | Includes Deltaweld 350 power source 907747 and AccuLock consumables. |
| 951000141 | Deltaweld 350 MIGRunner with Insight and Single-Wire Intellx Pro PKG,DELTAWELD 350 MIGRUNNER W/INTELLX PRO &INSIGHT |
Single-wire Intellx Pro feeder with Bernard BTB Gun 400 A | 715959717885 | Includes Deltaweld 350 power source 907747002 and Insight Centerpoint Basic mode. |
| 951000197 | Deltaweld 350 MIGRunner with Dual-Wire Intellx Pro PKG DELTAWELD 350 MIGRUNNER W/DUAL INTELLX PRO |
Dual-wire Intellx Pro feeder with two Bernard BTB Gun 400 A guns | 715959718073 | Includes Deltaweld 350 power source 907747 and AccuLock consumables. |
| 951000142 | Deltaweld 350 MIGRunner with Single-Wire Intellx Elite PKG,DELTAWELD 350 MIGRUNNER W/INTELLX ELITE |
Single-wire Intellx Elite feeder with Bernard BTB Gun 400 A | 715959717892 | Includes Deltaweld 350 power source 907747 and AccuLock consumables. |
| 951000143 | Deltaweld 350 MIGRunner with Insight and Single-Wire Intellx Elite PKG,DELTAWELD 350 MIGRNR W/INTELLX ELITE & INSIGHT |
Single-wire Intellx Elite feeder with Bernard BTB Gun 400 A | 715959717908 | Includes Deltaweld 350 power source 907747002 and Insight Centerpoint Basic mode. |
| 951000144 | Deltaweld 350 MIGRunner with Dual-Wire Intellx Elite PKG,DELTAWELD 350 MIGRUNNER W/DUAL INTELLX ELITE |
Dual-wire Intellx Elite feeder with two Bernard BTB Gun 400 A guns | 715959717915 | Includes Deltaweld 350 power source 907747 and AccuLock consumables. |
| 907896 | Deltaweld 350 with Insight, Running Gear, and Cart Accessory Kit DELTAWELD 350 MIGRUNNER W/ ACCY KIT & INSIGHT CORE |
No wire feeder or MIG gun included | 715959717809 | Order dual-wire accessory kit 301579 when pairing with a dual-wire feeder. |
| 951000145 | Deltaweld 350 MIGRunner with Single-Wire Intellx Elite and Push-Pull Gun PKG,DELTAWELD 350 MIGRNR W/INTELLX ELITE ALUMINUM |
Single-wire Intellx Elite feeder with XR-Aluma-Pro Plus push-pull gun | 715959717922 | Push-pull package path for aluminum work. |
| 951000146 | Deltaweld 350 MIGRunner with Dual-Wire Intellx Elite and Push-Pull Gun PKG,DELTAWELD 350 MIGRNR W/INTELLX ELITE DUAL ALUM |
Dual-wire Intellx Elite feeder with XR-Aluma-Pro Plus push-pull gun and Bernard BTB Gun 400 A | 715959717939 | Push-pull package path with dual-wire feeder. |
Compatible Feeders
Miller Intellx Series Bench Feeders
Primary ArcConnect feeder path for Deltaweld 350 MIGRunner systems.
Open support pageMiller 20 Series Bench Feeders
Use Deltaweld 350 stock numbers with 14-pin receptacle for this legacy feeder path.
Open support pageMiller 74 MPa Plus Bench Feeders
Catalog-listed Deltaweld 350/500 with 14-pin path; pulse MIG is not available on this feeder path.
Open support pageCompatible Guns / Torches
Bernard BTB Gun 400 A
Included with Deltaweld 350 Intellx MIGRunner packages.
Open support pageXR-Aluma-Pro Plus
Listed for Deltaweld 350 push-pull packages with Intellx Elite feeder paths.
Open support pageXR-Pistol Plus
Compatible only through Intellx Elite feeder, ROI / remote wire drive, or Elite Swingarc paths.
Open support pageAccessories To Check
| Part number | Accessory | Use | Manufacturer UPC check | Buy / support |
|---|---|---|---|---|
| 301758 | Industrial cart INDUSTRIAL RUNNING GEAR/CYLINDER RACK |
For Deltaweld 350/500/600; industrial cooler integrates into the bottom of the cart. | 715959717755 | Buy link unavailable. |
| 301838 | Feeder swivel kit KIT,INDUSTRIAL HANDLE/FEEDER SWIVEL |
Required to add handle, MIG gun holder, cable management, and gas cylinder support to top-mounted feeders. | 715959717779 | Buy link unavailable. |
| 301528 | Cart accessory kit DELTAWELD 350/500 CART ACCESSORY KIT |
Single-wire feeder kit for industrial cart with regulator, gas hose, 4/0 feeder weld cable, work cable, and 9 ft ArcConnect cable. | 715959669320 | Buy link unavailable. |
| 301579 | Dual-wire cart accessory add-on kit DELTAWELD 350/500 DUAL CART ACCESSORY KIT |
Order with 301528 for dual-wire feeder setups. | 715959679084 | Buy link unavailable. |
| 301759 | Industrial water cooler INDUSTRIAL WATER COOLER |
2.5 gallon 115 V cooler for water-cooled torches; slides into the bottom of the industrial cart. | 715959717762 | Buy link unavailable. |
| 301529 | Stationary handle kit DELTAWELD 350 STATIONARY HANDLE KIT |
Allows easier movement and portability; not compatible with feeder swivel kit. | 715959669955 | Buy link unavailable. |
| 280471009 | ArcConnect control/motor cable, 9 ft ARCCONNECT CONTROL CABLE 9FT |
Connects Deltaweld 350 power source directly to feeder or remote operator interface. | 715959668712 | Buy link unavailable. |
| 280471015 | ArcConnect control/motor cable, 15 ft ARCCONNECT CONTROL CABLE 15FT |
Connects Deltaweld 350 power source directly to feeder or remote operator interface. | 715959668750 | Buy link unavailable. |
| 280471025 | ArcConnect control/motor cable, 25 ft ARCCONNECT CONTROL CABLE 25FT |
Connects Deltaweld 350 power source directly to feeder or remote operator interface. | 715959668743 | Buy link unavailable. |
| 300461 | Work sense lead, 25 ft WORK SENSE LEAD, PIPEWORX, 25 FT |
Provides accurate voltage feedback when connected from feeder to workpiece. | 715959392709 | Buy link unavailable. |
| 300462 | Work sense lead, 50 ft WORK SENSE LEAD, PIPEWORX, 50 FT |
Provides accurate voltage feedback when connected from feeder to workpiece. | 715959392716 | Buy link unavailable. |
| 081543 | Coolant fitting FTG,COOLANT |
5/8-18 UNF-2B left-hand thread fitting for coolant system setup. | 715959084956 | Buy link unavailable. |
| 043809 | Miller coolant COOLANT,ALUMINUM PROTECTING SOLD IN MULTI OF 4 |
Coolant for compatible Miller water-cooled systems. | 715959279512 | Buy link unavailable. |
Related Lookup Pages
Miller Deltaweld 500 Power Source
Dedicated Deltaweld 500 support for heavy industrial MIG, flux-cored, air carbon arc gouging, Intellx MIGRunner packages, ArcConnect feeder paths, and XR Plus push-pull aluminum gun options.
Open support pageMiller Deltaweld 600 Power Source
Dedicated Deltaweld 600 support for 600 amp heavy industrial MIG, flux-cored, air carbon arc gouging, ArcConnect/14-pin power-source configuration, Intellx feeders, and XR Plus push-pull gun paths.
Open support pageMiller Deltaweld Power Sources
Deltaweld 350 and 500 support for heavy industrial MIG, flux-cored, Intellx feeder packages, and compatible bench feeder paths.
Open support pagei er wire feeder suppor
Related Miller wire feeder support path.
Open support pageMiller Intellx Series Bench Feeders
Intellx Basic, Pro, Elite, and Swingarc feeder path for Deltaweld 350/500 and XMT 400 shop systems.
Open support pageMiller 20 Series Bench Feeders
20 Series Basic and Digital bench feeder path for heavy industrial MIG and flux-cored work with CV/DC power sources.
Open support pageMiller 74 MPa Plus Bench Feeders
S-74 MPa Plus and D-74 MPa Plus feeder path for heavy industrial MIG, flux-cored, pulsed MIG, and aluminum push-pull systems.
Open support pageMiller MIG Drive Rolls
Drive roll lookup for Miller MIG and feeder setups.
Open support pageNeed More Help?
Wire Feed Problems
Use troubleshooting only after confirming the feeder model, power-source path, gun, wire size, and drive rolls.
Find My Part
Search by feeder stock number, gun family, drive roll, or power-source model when the setup is not clear.
Source: Miller Electric 2026 Full-Line Catalog, catalog pages 10, 16, 17, 18, 19, 122. Additional source: Miller Deltaweld 350 Systems MIG Welding System data sheet, issued March 2026, Index No. DC/16.5. Manufacturer UPC checks come from the uploaded Miller product/UPC file and are shown for verification only. Purchase placeholders are shown where no support page exists.
